Ditek DTK-TSS2 User Manual

DTK-2MHTP (2-Pair Modular Hybrid Line Protector)
Note: Connect this device in series between the field wiring and the
alarm panel supply wiring.
1. Connect the communication loop circuit from the field to the side marked INPUT.
The first pair is connected to the terminals marked 1+ and 1- . If a second pair is
used, connect to the terminals marked 2+ and 2- .
2. Connect the communication loop for the alarm panel supply wiring to the side
marked OUTPUT.
DTK-2MHLPXXB (2-Pair Modular Hybrid Line Protector)
Note: Connect this device in series between the field wiring and the
alarm panel supply wiring.
1. Connect the IDC (Initiating), NAC (Notifying), or SLC (Signaling) circuit wiring from
the field to the side marked INPUT. The first pair is connected to the terminals
marked 1+ and 1- . If a second pair is used, connect to the terminals marked 2+
and 2- .
2. Connect the IDC (Initiating), NAC (Notifying), or SLC (Signaling) alarm panel
wiring to the side marked OUTPUT.
Note: This module may be used for protection of any IDC (Initiating), NAC (Notifying),
or SLC (Signaling) circuits. Each module will protect 2 pairs of the same circuit.
Note: All modules have been factory pre-wired for ground. It is not necessary to
make any additional ground connections.
After all connections have been made and no hazards exist, restore power
DITEK CORPORATION
One DITEK Center 1720 Starkey Road Largo, Fl 33771
1-800-753-2345
P/N 191520 INT-100088-001 Rev 5 3-27-13
3
www.ditekcorp.com

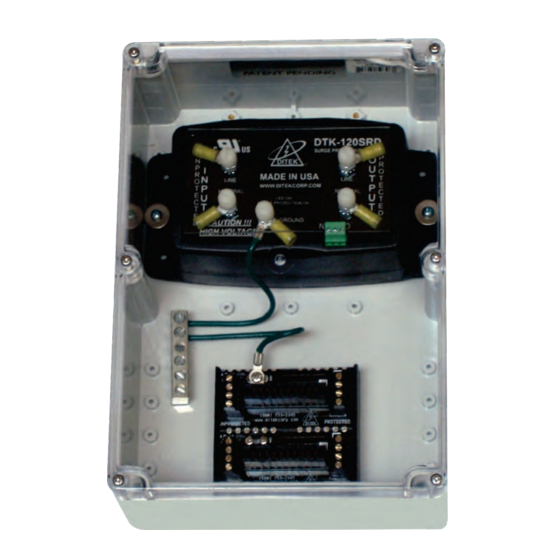

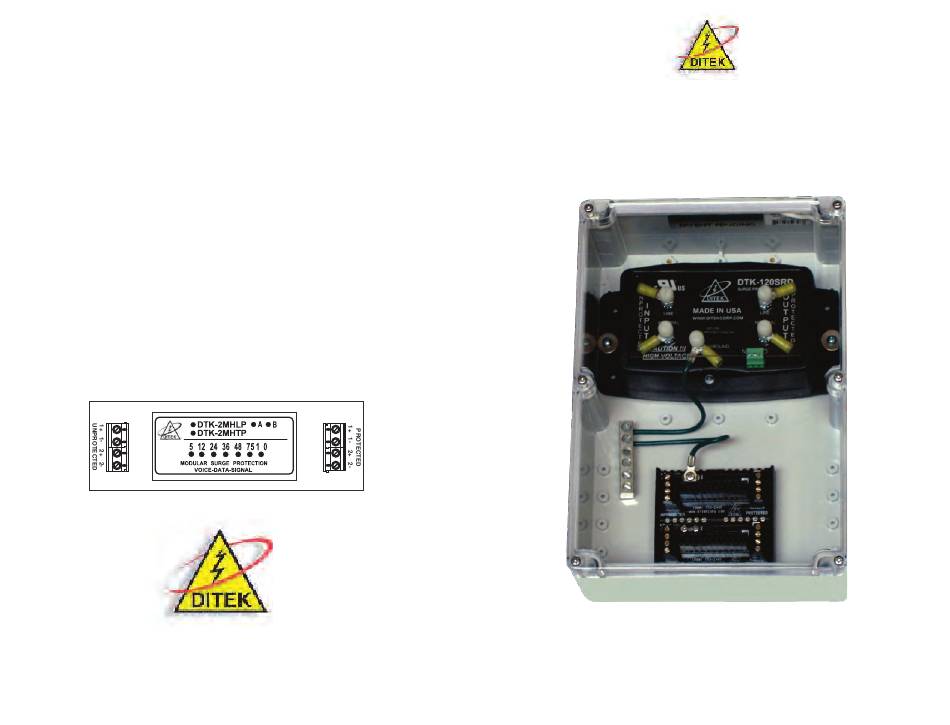

DTK-TSS2
Total Surge Solution
User Guide
DITEK CORPORATION
One DITEK Center
1720 Starkey Road
Largo, Fl 33771
Sales: 1-800-753-2345
Technical Support: 1-888-472-6100
