48.

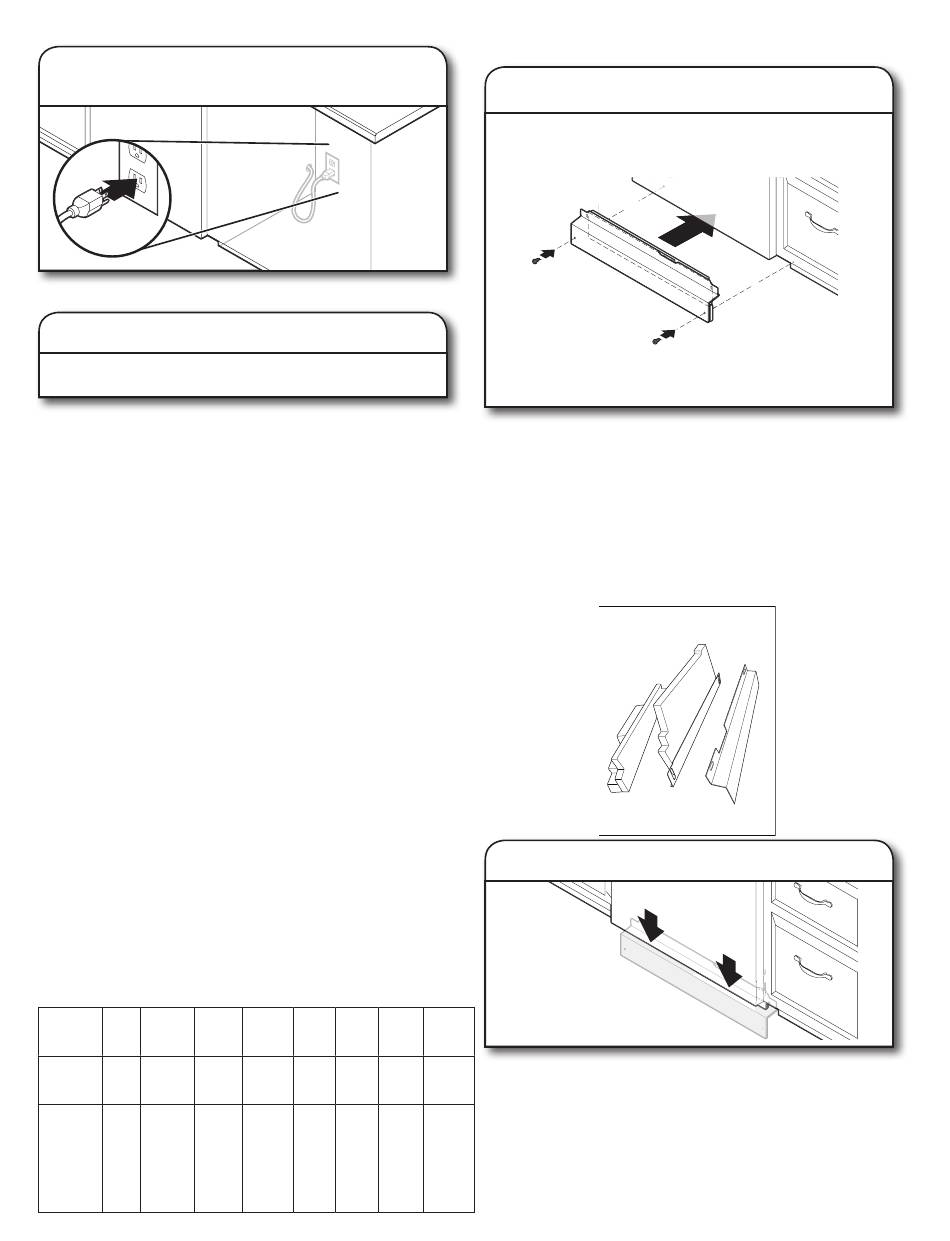

Power supply cord—Plug into
a grounded 3 prong outlet
Plug into a grounded 3 prong outlet.
49.
Reconnect power
Reconnect electrical power at the fuse box or circuit
breaker box.
NOTE: With the access panel off, start the dishwasher and allow
it to complete the shortest Installation Cycle while checking unit
for leaks. See instructions on this manual under Check Operations
section.

CHECK OPERATION

Read the dishwasher Quick Start Guide that came with your
■
dishwasher.
Check that all parts have been installed and no steps were
■
skipped. Check that you have used all tools.
Run the Installation Cycles as follows (Note that it can be
■
beneficial to run this with the access panel removed in order
to look for presence of water under the unit. If running in this
state, the float switch wire MUST still be connected to the float
switch.)
If the dishwasher is not working properly, disconnect power
■
or unplug dishwasher and refer to the "If Dishwasher Does Not
Operate" section.
Press any 3 keys (except Delay or Cancel) in the sequence
■
1-2-3-1-2-3-1-2-3 with no more than 1 second between key
presses to enter the Installation cycle then press button #2.
Close the door and the cycle will start.
■
All LEDs turn on immediately upon receiving entry sequence.
■
A tone may play depending on the model.
■
The cycle will pause when the door is opened and resume
■
when closed.
No Start/Resume key press required to resume.
■
The installation cycle may last several minutes.
■
Press Cancel key to exit installation cyle mode. The product
■
will exit this mode after 10 minutes or if power is removed from
the appliance.
NOTE: It is normal for the drain pump to sound loud upon the
first run since no water is present in the system.
Numeric All
Display LEDs
on 1 2
Approximate 0:30
interval (Maximum
Time 0:01 5:00) 2:00
Machine
Action
Fill 3.8
L+
Wash
Initial motor
Pause Drain pulses
5
(Some
3 4 models 6
0:20 0:20 0:20 0:30
Wash+
Wash+ Third
Dispenser Wash+ Level Wash+
(Middle Fan Rack. If Heater
spray (Ceiling present (Lower
pulses spray in this spray
arm) arm) model arm)

INSTALL ACCESS PANELS

50.
Reinstall access panels and fasteners
Insulation
(on some models)
Place the toe panel behind the access panel against the
dishwasher leg. If insulation is included on this model, make sure
insulation does not interfere with the float assembly. Push the
access panel up toward the top of the product so that it hangs on
the hooks on the plastic side members.
Reinstall the toe/access panel assy.With side shield to go
■
between the toe/access panel assembly and the side member.
Align the rectangular slot in the foam and assembly the toe/
access panel assembly to the unit using the screw.
NOTE: Remove film on door Score around door for easier
removal.
51.
Check access panel edge
7
Check that the lower edge of the access panel touches the floor.
1:00
Adjust if necessary.
(Maximum
5:00)
Drain
Pracess
