Summary of Contents for Omega OM-VIB-101

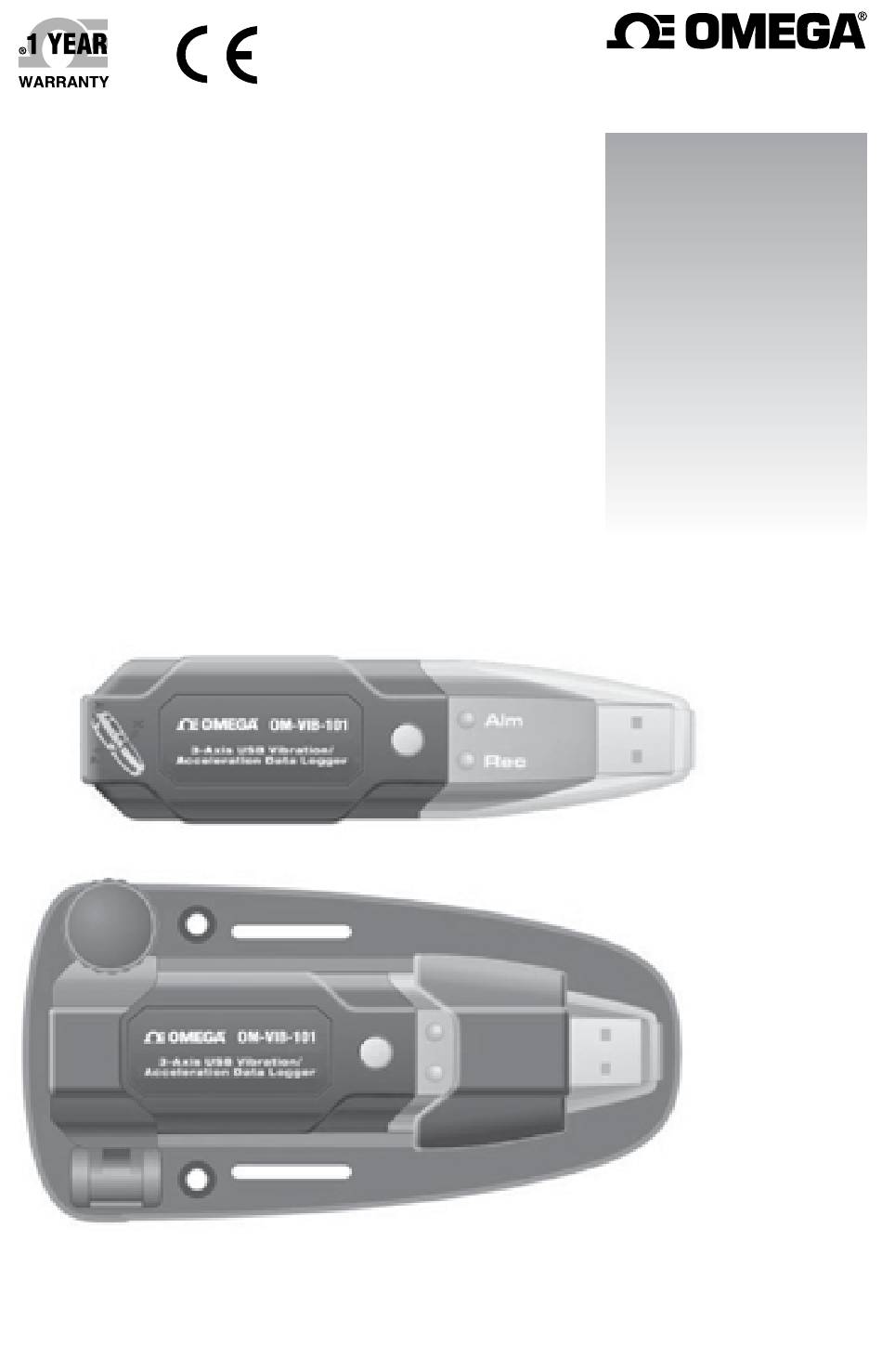

- Page 1 User’s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info OM-VIB-101 3-Axis USB Vibration/Acceleration Data Logger...
- Page 2 Tel: (203) 359-1660 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ....... . . 2 – 3 Key Features . -
Page 4: Key Features
The OM-VIB-101 system has three components: 1. A USB memory stick (data logger) with three precision on-board microelectronic gravitational force sensors (accelerometers). The data logger is designed to be attached to an operating piece of equipment (a motor, for example) and left in place to measure and record the equipment’s acceleration in three... -
Page 5: What's In The Package
• Powered by high-capacity, long-life, non-rechargeable Li-ion battery WHAT’S IN THE PACKAGE The OM-VIB-101 system comes in a white box. Inside the box are: • The USB data logging device with a pre-installed battery that requires activation • A mounting pedestal •... -
Page 6: Setup Instructions
PEDESTAL (TOP) PEDESTAL (BOTTOM) G. Locking thumbscrew H. Data logger clamp I. Pedestal J. Magnets K. Screw mounting holes SETUP INSTRUCTIONS ACTIVATE BATTERY 1. Use a very small Phillips-head screwdriver to remove the two silver screws securing the grey battery compartment cover (Fig. -
Page 7: Install Software
INSTALL SOFTWARE 1. Remove the Shock Software V2.1 mini-disc from its protective sleeve and place it in the tray of your PC’s CD/DVD drive with the label facing up. Close the tray. 2. On the AutoPlay screen that appears next, click on “Open folder to view files”... - Page 8 5. Click Next to call up the screen at right. Use the Browse button if you want to save the Shock software somewhere other than the ProgramFiles folder. Otherwise, click Next. 6. On the Ready to Install screen at right, click Install. 7.
-
Page 9: Configure Data Logger
8. When installation is complete, click Finish to exit the Shock Setup Wizard. CONFIGURE DATA LOGGER The next two steps in the setup process install a software driver for the USB data logger, and configure the unit to your data logging preferences. - Page 10 The first time you plug the data logger into your computer, your system tray will notify you that the computer is “Installing Device Driver Software”. When the notification disappears, open the Shock program by selecting it via your Start button, clicking on its icon on your taskbar, or double-clicking its desktop icon.
-
Page 11: Deploy Data Logger
PC’s clock. You can always change the other default values later, after you have gained some experience operating the OM-VIB-101 system and the Shock software. After you have changed the Interval Time to 500ms, click OK at the bottom left of the screen to save the settings. -
Page 12: Operating Instructions
If it is not reconfigured, the data logger will remain in standby mode. Replacement batteries (Part No. OM-EL-BATT) are available from OMEGA. -
Page 13: Calibration
To start data logging with the VIB-101 operating in standalone mode (unplugged from your computer), briefly press the Logging start/stop button. This will cause the green Rec LED to flash four times. To stop logging with the VIB-101 operating in standalone mode, briefly press the Logging start/stop button. -
Page 14: Downloading Data And Using The Software
DOWNLOADING DATA AND USING THE SOFTWARE For detailed operating instructions, refer to the <Shock Software V2.1 Instructions.pdf> found on the mini-disc. Use the following diagram (also printed on the battery compartment cover) to correlate x-, y- and z-axis readings with the orientation of the data logger. - Page 15 Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects...
- Page 16 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE DATA ACQUISITION M U Thermocouple, RTD & Thermistor M U Data Acquisition & Engineering Probes, Connectors, Panels & Software Assemblies M U Communications-Based Acquisition M U Wire: Thermocouple, RTD &...
