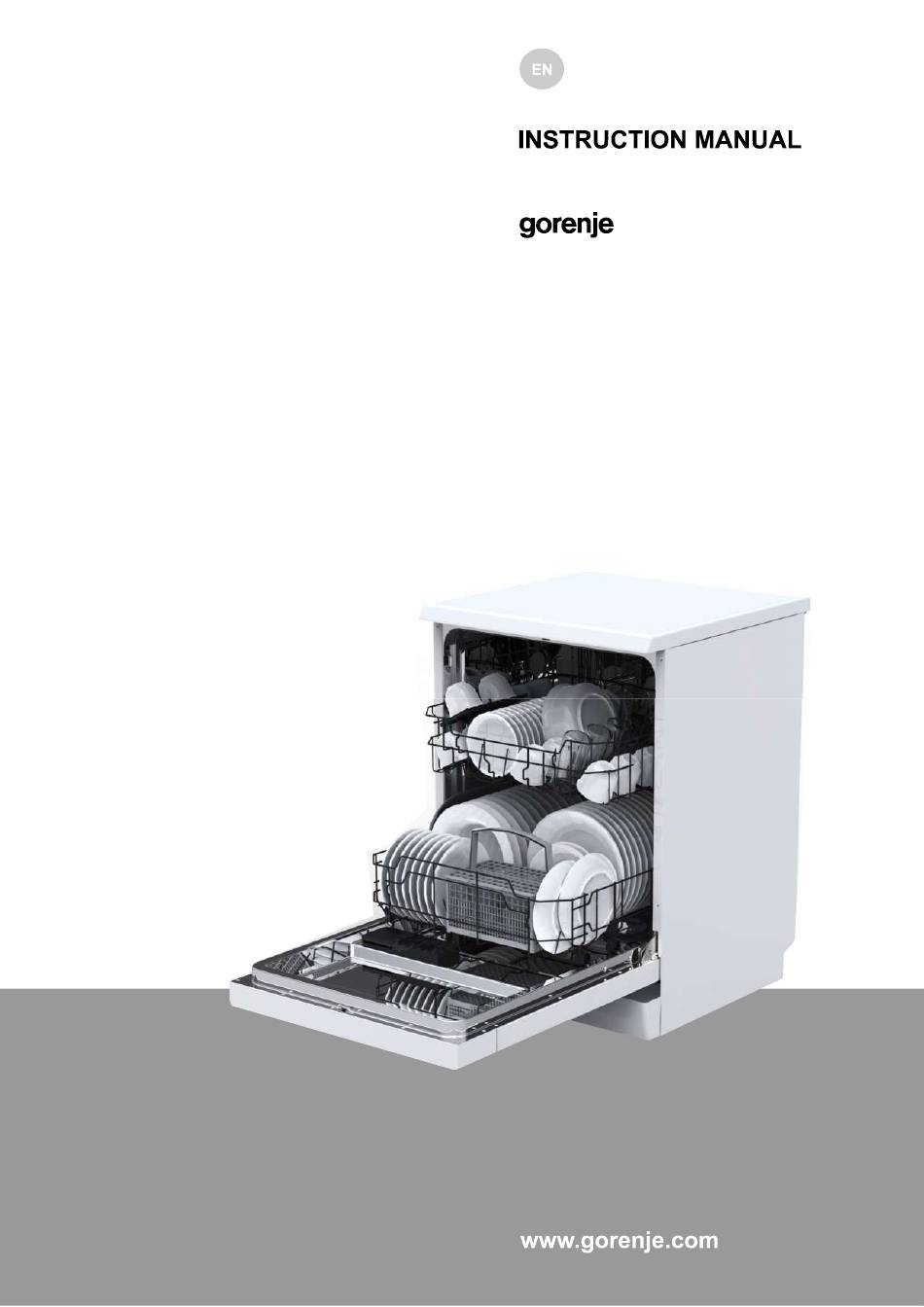

- Page 1 GS62215WUK GS62215XSUK...
- Page 2 Dear Customer, Control Panel...........3 Dishwasher Features........3 Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly. Keep it to refer to it at a later date. 、 A Water Softener...........4 Pass it on to any subsequent owner of the appliance.
- Page 3 When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.
- Page 4 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
- Page 5 Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g.
- Page 6 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the On/Off button to switch on the appliance, Open the door. With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided).
- Page 7 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. 6.Delay button : to Press the button to chose Power button and indicator : to switch On/Off the the delay time. appliance.and t o show when the power on.
-
Page 8: Adjusting Salt Consumption
Before using your dishwasher for the first time: Set the water softener Add 1.5Kg dishwasher salt and then full fill the salt container with water Fill the rinse aid dispenser Fill in detergent The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. -
Page 9: Rinse Aid Dispenser
Always use the salt intended for use with dishwasher. The salt container is located beneath the lower basket and should be filled as explained in the following: Attention! Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. -
Page 10: When To Refill The Rinse Aid Dispenser
When to Refill the Rinse Aid Dispenser If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour " " of the optical level indicator C located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. -
Page 11: Concentrated Detergent
Detergents There are 3 sorts of detergents 1.With phosphate and with chlorine 2.With phosphate and without chlorine 3.Without phosphate and without chlorine Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when °... -
Page 12: Fill In Detergent
Fill in Detergent Fill the detergent dispenser with detergent. The marking indicates the dosing levels , as illustrated on the right: The place of main wash cycle detergent placed. The place of pre-wash cycle detergent placed. Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging. - Page 13 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.
-
Page 14: Adjusting The Upper Basket
The upper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clean items are to be placed into the lower tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, serving dishes and and shallow pans (as long as they are not too dirty). - Page 15 Means: need to fill rinse into the Rinse-Aid Dispenser. ℃ Pre-wash(45 For normally soiled loads, ℃ Normal Wash (55 5/25g such as pots , plates,glasses Rinse 3in1 and lightly soiled pans. ℃ Rinse (65 Drying ℃ Pre-wash(50 For heaviest soiled crockery, ℃...
- Page 16 Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the Detergent "...
-
Page 17: Filter Assembly
The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain. -
Page 18: Cleaning The Filter
Remarks: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. The entire filter assembly should be cleaned once a week. Cleaning the Filter To clean the coarse filter and the fine filter, use a cleaning brush. - Page 19 After Every Wash When not in Use for a LongTime It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside.
- Page 20 The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice. 1.Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.
- Page 21 How to Drain Excess Water From Hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
- Page 22 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is closed securely. turned on Make sure the power cord is properly plugged into the wall socket.
- Page 23 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed.
- Page 24 Height : 845mm Width : 598 mm Depth : 600mm( with the door closed) Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 12 place settings...
- Page 26 Technical Data Sheet Sheet of household dishwasher according to EU Directive 1059/2010: Manufacturer E5-GORENJE7# Type / Description GS62215WUK / GS62215XSUK Standard place settings Energy efficiency class Annual energy consumption 258 kWh Energy consumption of the standard cleaning cycle 0.91 kWh Power consumption of off-mode 0.45 W...
