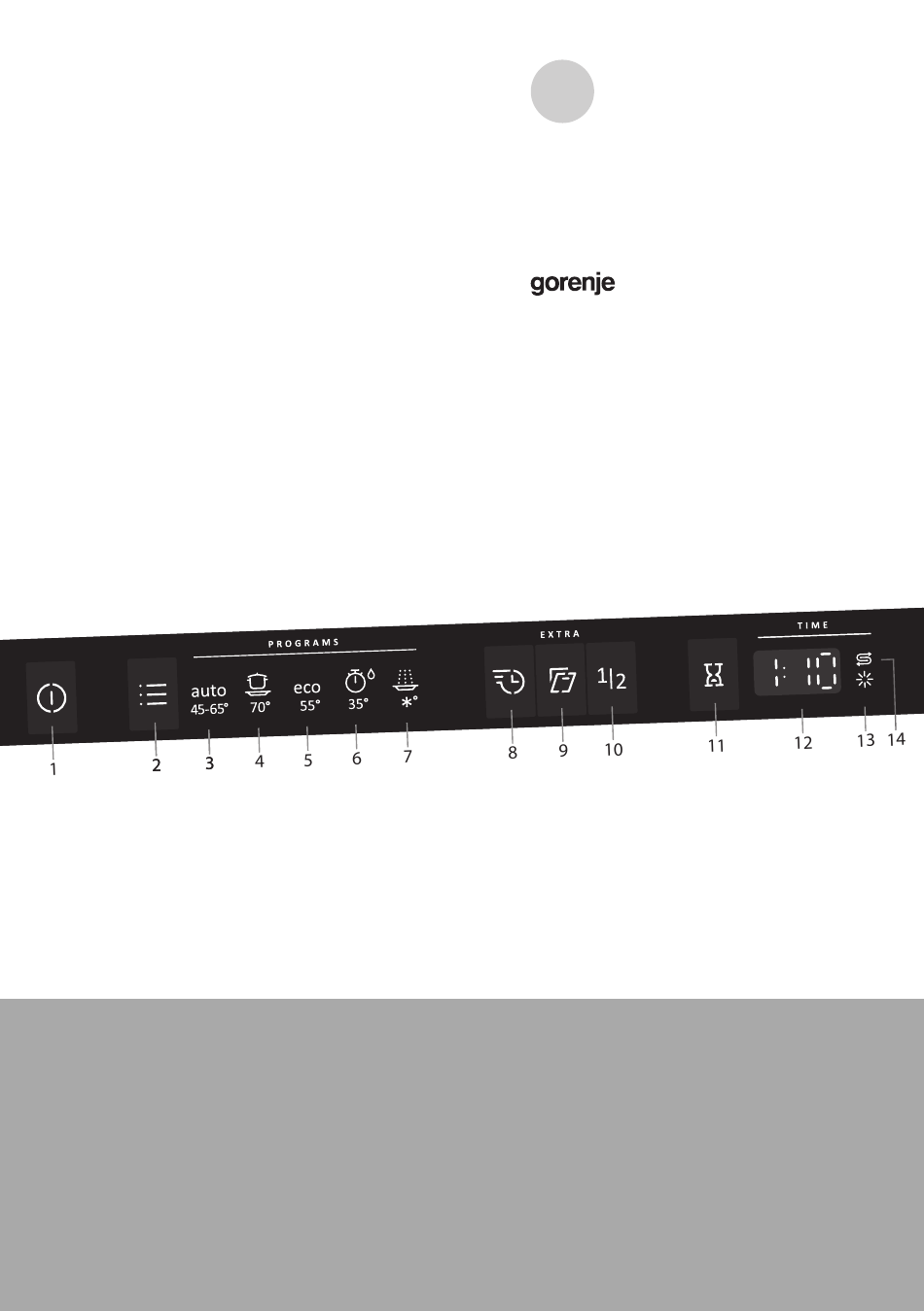

Main power switch
1
Programme selector
2
Auto wash
3
Intensive wash
4
Eco wash
5
Quick wash
6
Rinse
7
Safety instructions ............................................
Before washing for the first time .......................
Loading the dishwasher ....................................
Using the dishwasher .......................................
Settings .............................................................
Care and cleaning ............................................
Troubleshooting ................................................
Installation ........................................................
Service ..............................................................
Information for test institute ..............................
Technical information ........................................
EN

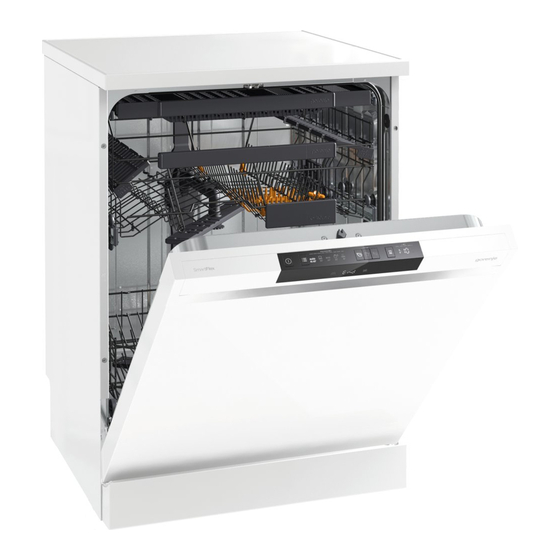

Operating Instructions
Dishwasher
GS65160
SpeedWash
8
Auto open
9
Half load
10
Delayed start
11
Display
12
Rinse aid indicator
13
Salt indicator
14
2
3
4
5
9
11
13
17
20
20
24
Advertisement
Table of Contents
Related Manuals for Gorenje GS65160
Summary of Contents for Gorenje GS65160
-
Page 1: Table Of Contents
Operating Instructions Dishwasher GS65160 Main power switch SpeedWash Programme selector Auto open Auto wash Half load Intensive wash Delayed start Eco wash Display Quick wash Rinse aid indicator Rinse Salt indicator Safety instructions ..........Before washing for the first time ....... -
Page 2: Safety Instructions
Safety instructions Winter storage/transport General Store the dishwasher where the temperature remains • • Read the operating instructions and keep them above freezing. in a safe place! Avoid long transport distances in very cold weather. • • Never use the dishwasher for any purpose other Transport the dishwasher upright or laying on its back. -
Page 3: Before Washing For The First Time
Before washing for the first time The water softener Refill salt indicator In order to achieve good dishwashing results, the When the salt needs topping up, the above symbol lights dishwasher needs soft water (water with low mineral on the display. content). -
Page 4: Loading The Dishwasher
Loading the dishwasher shelf and knives are placed in the knife stand on the right Economic dishwashing (if fitted). Do not start the dishwasher until it is fully loaded to save • energy. Do not rinse under running water. Simply scrape off •... -
Page 5: Using The Dishwasher
Using the dishwasher Add detergent Add the detergent to the detergent compartment. There is a compartment for the prewash and one for the main wash. If powder and liquid dishwasher detergents are used, add a small amount of the detergent to the prewash compartment. - Page 6 programmes and some options cannot be combined The main power switch (available options glow dimly). Press and hold the main power switch until the display lights SpeedWash This option shortens the programme time, but uses more PROGRAMS - Choose programme energy and water.
- Page 7 Front display Top up with rinse aid or increase the rinse aid dosage • level. Activate the Auto open option. • Allow the dishes to cool before unloading the • dishwasher. Once the programme has finished Once the programme has finished, "End" appears on the Dishwashing Time remaining Drying...
-
Page 9: Settings
Settings Open the settings menu: First, open the door. Turn off the machine. Press and hold the main power switch until the display lights Within 10 seconds: - press the Programme selector and the option button for SpeedWash. The display shows the settings menu (current setting and its currently set value). (Exit the menu by browsing through the menu or pressing the main power switch.) Navigate the settings menu: Press to save the set value and continue to the... - Page 10 Settings Options 3:00 (Off) You can activate this setting when using 3-in-1/ (3-in-1/all-in-one detergent) 3:01 (On) All-in-one detergent. The dishwashing programmes automatically adapt to provide the best possible dishwashing and drying results every time. If this setting is activated there is no need to add rinse aid since this option disables rinse aid dispensing.
-
Page 11: Care And Cleaning
Care and cleaning In order to inspect the drainage pump, remove the Coarse filter coloured stop on the right in the bottom drain. The coarse filter traps larger food particles, which cannot By inserting your finger into the hole you can turn the get past the drainage pump. - Page 12 Spray arms Unscrew the spray arm bearings counterclockwise to remove the spray arm from the upper basket. Holes and bearings can sometimes become blocked. Remove any debris using a pin or the like. The spray arms also have holes underneath. Door When cleaning the edge around the door, use only a slightly To facilitate cleaning you can remove the spray arms.
-
Page 13: Troubleshooting
Troubleshooting Type of fault on the display Action Overfilling Clear the drainage pump. See the section Care and cleaning. If the problem persists, call the service department. Water Outlet Fault See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department. - Page 14 Problem Possible causes Action The dishwasher does not start. The door is not properly closed. Check. You have opened the dishwasher to add Close the door and wait. After a while, more dishes while a programme is in the dishwasher continues the progress.
- Page 15 Problem Possible causes Action Spots or films on the dishes. The water softener is leaking salt. Check that the salt compartment lid is properly tightened. Otherwise call the service department. Incorrect water softener setting. See the section Settings. Incorrect rinse aid dosage setting. See the sections Before washing for the first time and Settings.
- Page 16 Problem Possible causes Action The dishes are not dry enough. The Auto open option is not activated. Activate the Auto open option. The dishwasher is not fully loaded. Fully load the dishwasher. Rinse aid needs topping up or dosage Top up with rinse add or increase the is set too low.
-
Page 17: Installation
Installation [mm] 1214 Safety instructions Transport protection for the door Connections to electricity, water and drainage must be Do not forget to remove the transport protection for the door • performed by a qualified professional. when unpacking the dishwasher. Always follow applicable regulations for water, drainage •... - Page 18 Placing the dishwasher The dishwasher is intended for freestanding installation, but can also be installed under a worktop. Check that there is an air gap of 3 mm around the dishwasher. Adjust the height and slide the dishwasher into place Make any final adjustments to the front feet (the dishwasher may lean no more than 5 mm).
- Page 19 Remove dishwasher worktop The hose must always discharge at least 350 mm above the bottom of the machine. The dishwasher can be installed in a recess without its worktop. If the dishwasher's worktop is removed, the Ensure that the drainage hose has no kinks. dishwasher must be installed so that it is enclosed on both sides and is under a separate worktop.
-
Page 20: Service
Service Information for test institute Read the chapter Troubleshooting before contacting the Request test institute information via e-mail service department. Provide the details on the serial number dishwashers@appliance-development.com. plate in all contact. Include the article number (1) and the The request should include the details on the serial number serial number (2). - Page 21 Your notes...
- Page 22 Your notes...
- Page 23 Your notes...
-
Page 24: Technical Information
Technical information Information on energy labelling Information sheet, in compliance with Commission Delegated Regulation (EU) No. 1059/2010 Gorenje Model designation: GS65160 Number of standard place settings: Energy efficiency class: A+++ Annual energy consumption(AE 245 kWh per year Energy consumption of the standard cleaning cycle(E 0.86 kWh...
