Summary of Contents for Titan TTB516NAL

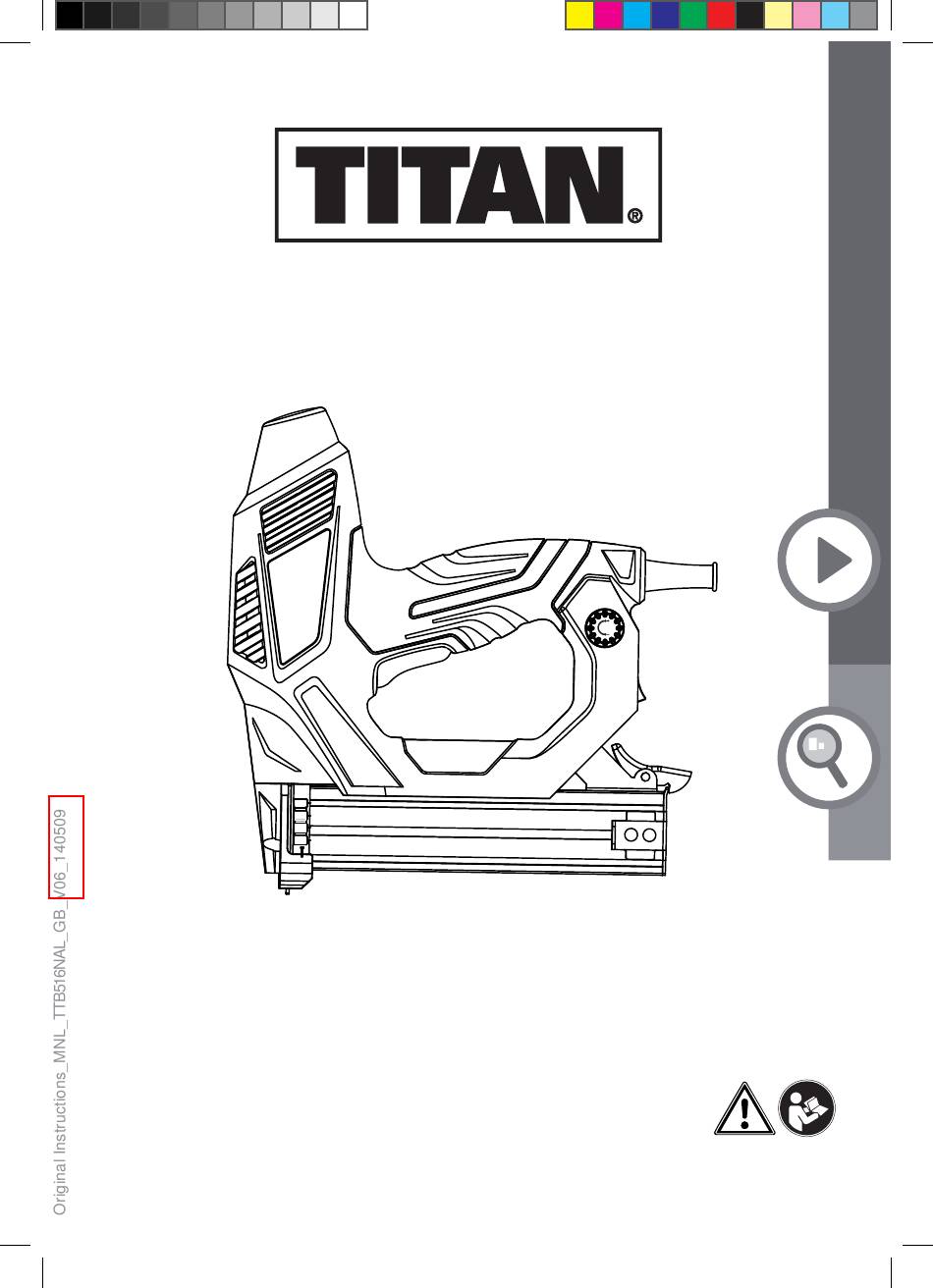

- Page 1 25mm Nailer 32mm 25mm 20mm 15mm TTB516NAL Barcode: 5052931216260 WARNING! Read the instructions before using the product!
- Page 2 GUARANTEE This TITAN product carries a 2 year guarantee. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased.
-
Page 3: Table Of Contents
TTB516NAL by TITAN Let’s get started… These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Your product Technical and legal information Before you start more detail... Product functions... -
Page 4: Your Product
TTB516NAL by TITAN Your product Your product 32mm 25mm 20mm 15mm 1. Lever for loading magazine 2. On/off switch 3. Impact control selection wheel 4. Nailer head 5. Plastic protection cover 6. Soft grip handle 7. Trigger 8. Magazine 9. Slider... -
Page 5: Technical And Legal Information
TTB516NAL by TITAN Technical and legal information Technical specifications General > Input Voltage : 230 -240V, 50 Hz, 9A > Max.Firing speed : 20-Nails - per minute > Max.Length of nail : Up to 25mm long : N/A > Max.Length of stapler : Holds up to 100 nails Max.Magazine Capacity... - Page 6 TTB516NAL by TITAN Technical and legal information This tool may cause hand-arm vibration syndrome if its use is not adequately managed Warning! identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
- Page 7 TTB516NAL by TITAN Technical and legal information yyWxx Manufacturing date code; year of manufacturing (20yy) and week of manufacturing (Wxx); Caution / Warning. Wear hearing protection. Read the instruction Wear eye protection. manual. Wear respiratory protection. This product is of protection class II. That means it is equipped with enhanced or double insulation.
- Page 8 TTB516NAL by TITAN Technical and legal information 2) ELECTRICAL SAFETY > Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Page 9 TTB516NAL by TITAN Technical and legal information > Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Page 10 TTB516NAL by TITAN Before you start Unpack > Unpack all parts and lay them on a flat, stable surface. > Remove all packing materials and shipping devices if applicable. > Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
-
Page 11: Before You Start
TTB516NAL by TITAN Before you start Inserting Nails Only use the nails/staples which are outlined in the technical specifications. Please keep in mind that nails must be suited to the material they are used in. The harder the material is, the shorter the nails should be. -
Page 12: In More Detail
TTB516NAL by TITAN more detail… Product functions Care and maintenance Trouble shooting Recycling and disposal EC declaration of conformity... -
Page 13: Product Functions
TTB516NAL by TITAN Product functions Intended use The machine is intended for tacking of cardboard, insulating material, fabric, thin plywood, foils, leather and similar materials and similar materials on wooden surfaces or similar e.g. mdf, plywood; when used in accordance with these instructions. - Page 14 TTB516NAL by TITAN Product functions Operating the tool > Firmly press nailer head (4) against the workpiece until there is no gap between the nailer head (4) and the workpiece. > Briefly press trigger (7) and then release again. >...
- Page 15 TTB516NAL by TITAN Product functions Impact control With wheel (3) the required impact level can be selected in steps. > Indicator (3) shows the selected impact level. > “-” for thin and light materials such as foils and fabrics. >...
- Page 16 TTB516NAL by TITAN Care and maintenance 4 Golden rules for servicing > Switch off and remove plug. Clean the ventilation grill and on / off button with a soft brush. > Make sure that the ventilation openings are always clear and clean.
-
Page 17: Care And Maintenance
TTB516NAL by TITAN Care and maintenance Power cord If the power cord is damaged, it must be replaced by the manufacturer, > its service agent or similarly qualified persons in order to avoid a safety hazard. UK plug If you need to replace the fitted plug, then follow the instructions below. - Page 18 TTB516NAL by TITAN Care and maintenance Repair > This product does not contain any parts that can be repaired by the consumer. Contact a qualified specialist to have it checked and repaired. Storage Clean the product as described above. >...
-
Page 19: Trouble Shooting
TTB516NAL by TITAN Trouble shooting Trouble shooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these... -
Page 20: Recycling And Disposal
Trouble shooting / TTB516NAL by TITAN Recycling and disposal Problem Possible cause Solution 3. Fasteners jam 3.1 Nail stuck 3.1. Need to remove the in tool tip of the nail sheath, use the allen wrench and then remove the cover screw tip,... - Page 21 Standards and technical specifications referred to： EN60745-1:2009+A11:2010 EN60745-2-16:2010 EN55014-1/A2:2011 EN55014-2/A2:2008 EN61000-3-2/A2:2009 EN61000-3-3:2008 Authorised Signatory and technical file holder Date : 19/04/2013 Signature:_________________ Name / title: Peter Harries / Quality Manager Titan Power Tools (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 25MM NAILER TTB516NAL...
- Page 22 Titan Power Tools (UK) Ltd Trade House, Mead Avenue, BA22 8RT...
