Caution
Do not obstruct the air vents.
Do not touch unit or lamps while hot.
No user serviceable parts inside, please refer to CHAUVET for service.
Power Connections
The unit is supplied with a power plug appropriate to its voltage and destination. Should any other
connections be required they must be carried out with the following configuration.
Earth = Green/Yellow cable
Neutral = Blue cable
Live = Brown cable
In the USA & Europe, it is required that all plugs are 3-pin type i.e. with Earth/Ground connection.
In the UK, it is required that all mains plugs are fitted with 5A fuses.
Technical Specifications
Power
120V~60Hz AC
Fuse
20mm Glass 1A Fast Blow
2 x 12V 35W
Lamps
Part No JC 12V 35W
Dimensions
250 x 200 x 200mm / 10in x 8in x 8in
Weight
User Information
(Please complete for your records)
Date Purchased:
/
/
Dealer Stamp:
230V~50Hz AC
20mm Glass 0.5A Fast Blow
2 x 12V 35W
Part No JC 12V 35W
3.6kg / 7.92lbs
Serial No:

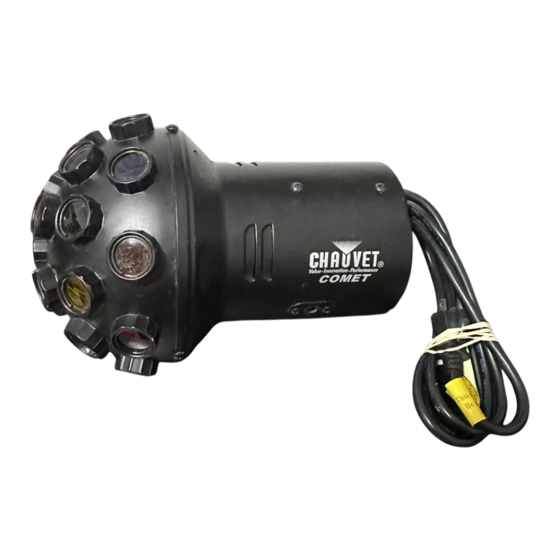

Model: CH-203 COMET
C o m e t
CH-203
Users Guide
Please read these instructions carefully before use
World-wide Headquarters:
3000 North 29
Hollywood, FL 33020
Tel: +1-954-929-1115 Fax: +1-954-929-5560
www.ChauvetLighting.com
Ct.
th
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chauvet Comet CH-203
Summary of Contents for Chauvet Comet CH-203
- Page 1 Do not obstruct the air vents. Do not touch unit or lamps while hot. No user serviceable parts inside, please refer to CHAUVET for service. Power Connections The unit is supplied with a power plug appropriate to its voltage and destination. Should any other connections be required they must be carried out with the following configuration.
- Page 2 Finally before using, check that the lamps are housed correctly in the lamp holders and that the lamp replacement cover has been screwed back into place. Mounting Bracket Mounting Bracket If after replacement of the lamps, the unit is still not working then please contact CHAUVET for servicing. Lamp Replacement eplacement Cover...
