Eminent EM4542 Manual

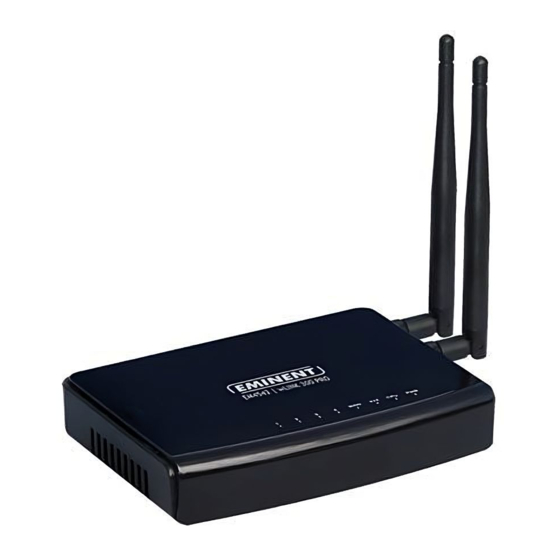

Wireless router, access point and signal booster
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EM4542 - Wireless Router, Access Point and
Signal Booster

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM4542 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eminent EM4542

Summary of Contents for Eminent EM4542

  • Page 1 EM4542 - Wireless Router, Access Point and Signal Booster...

  • Page 2: Table Of Contents

    3.0 Using the installation wizard ..................4 4.0 Manually configure as wireless router..............4 4.1 Connecting the EM4542 ..................5 4.2 Configuring the EM4542 for connection with the Internet ........5 4.3 Determining the connection method ..............6 4.3.1 Configuring the EM4542 for a DHCP Internet connection .......6 4.3.2 Configuring the EM4542 for a Static Internet connection.........7...

  • Page 3: Warranty Conditions

    The EM4542 is ideal to create your own secured wireless network in an instant. The EM4542 is a fast wireless router which can provide your entire house with a wireless network. The EM4542 performances are of a high standard which allows you to create a stable wireless network.

  • Page 4: Using The Installation Wizard

    • 3.0 Using the installation wizard The easiest way to install the EM4542 is with the help of the installation wizard. In case you do not want to use the wizard on the enclosed CD-rom, you can install the EM4542 as a wireless router (chapter 4), an Access Point (chapter 5) or a signal booster (chapter 6) manually.

  • Page 5: Connecting The Em4542

    Connect the other end of the UTP network cable to the ‘LAN’ port of your cable modem. Connect a UTP network cable to one of the four ‘LAN’ ports of your EM4542. Connect the other end of the UTP network cable to the network adapter in your computer.

  • Page 6: Determining The Connection Method

    The login screen is shown. 4.3 Determining the connection method To quickly configure the EM4542 for a connection to the Internet through your provider you will first need to determine which connection method your provider is using (‘DHCP’, ‘Static IP’, or ‘PPPoE’ ). Consult the information you received from your provider or look at table 1.

  • Page 7: Configuring The Em4542 For A Static Internet Connection

    5 minutes. In order to prevent losing your password, write down the altered password below: Password:____________________________________________________________ 4.3.2 Configuring the EM4542 for a Static Internet connection If your provider requires you to make a connection by using a Static IP-address, then use the following steps.

  • Page 8: Wpa Security (Recommended)

    ‘Check SSID’ option to ensure this name is not already in use.) Click ‘Next’. The EM4542 will automatically scan for a suitable wireless channel. As a choice, the most suitable wireless channel will appear on your screen. Click ‘Next’ to confirm this channel. (You can pick a wireless channel yourself if you want).

  • Page 9: Finishing The Installation Procedure Of Your Wireless Router

    An explanation how to connect your wireless network using Windows XP and Windows Vista can be found in chapter 7.0 * The connection is lost when WPA or WEP has been enabled in the EM4542 and not yet in the wireless network adapter. When WEP/WPA has also been enabled in the wireless network adapter, the connection will be repaired.

  • Page 10: Manual Configuration As An Access Point

    ENGLISH 5.0 Manual configuration as an Access Point Install the EM4542 as an access point if you have a router or DSL modem router. Make sure that your Internet browser and your network are well configured when configuring manually. You can assume that the settings are correct, unless you have changed any of the settings in the past.

  • Page 11: Securing A Wireless Network

    13. Type ‘255.255.255.0’ in the ‘Subnet mask’ field. 14. Click the button ‘Apply & Restart’. Note! If you wish to log in to your EM4542 at a later point in time, you must assign a fixed IP- address to your computer.

  • Page 12: Wpa Security (Recommended)

    ‘Check SSID’ option to ensure this name is not already in use.) Click ‘Next’. The EM4542 will automatically scan for a suitable wireless channel. As a choice, the most suitable wireless channel will appear on your screen. Click ‘Next’ to confirm this channel. (You can pick a wireless channel yourself if you want).

  • Page 13: Finishing The Installation Procedure Of Your Access Point

    An explanation how to connect your wireless network using Windows XP and Windows Vista can be found in chapter 7.0 ** The connection is lost when WPA or WEP has been enabled in the EM4542 and not yet in the wireless network adapter. When WEP/WPA has also been enabled in the wireless network adapter, the connection will be repaired.

  • Page 14: Connecting The Em4542 Signal Booster (2)

    Connect the other end of the UTP network cable to the network adapter of your computer. Is my EM4542 correctly connected to the wall outlet? You can check this by verifying that the POWER LED is on. 6.2 Configuring the EM4542 signal booster (2) Turn on your computer.

  • Page 15: Securing Your Em4542 Signal Booster (2) (Wpa)

    14. Type ‘255.255.255.0’ in the ‘Subnet mask’ field. 15. Click the button ‘Apply & Restart’. Note! If you wish to log in to your EM4542 at a later point in time, you must assign a fixed IP address to your computer.

  • Page 16: Configuring Your Wireless Router (1)

    16. The wizard will now save the settings and will close the screen automatically. *** The connection is lost when WPA has been enabled in the EM4542 and not yet in the wireless network adapter. When WPA has also been enabled in the wireless network adapter, the connection will be repaired.

  • Page 17: Connecting Your Wireless Router With The Signal Booster (2)

    17 | ENGLISH 16. Choose ‘WPAPSK’ and click ‘Next’. 17. Choose ‘TKIP’ and click ‘Next’. 18. Fill in the same password in the field ‘Network Key’ you have chosen for your signal booster. 19. Click ‘Next’. 20. Click ‘Finish’. 21. The wizard will now save the settings and will close the screen automatically. 6.5 Connecting your wireless router with the signal booster (2) If you have followed the previous steps, then you have filled in the following:...

  • Page 18: Completing The Installation Of The Signal Booster

    18 | ENGLISH 6.6 Completing the installation of the signal booster Type ‘http://192.168.8.200’ in the address bar to connect to the signal booster. Click ‘Setup Tool’. Click ‘Advanced Setup’ in the left menu. Click ‘Wireless’ I the left menu. Click ‘WDS Setup’ in the left menu. Click ‘Search AP’...

  • Page 19: Configuring A Wireless Network Using Windows Vista

    8.0 Firewall & QoS settings The EM4542 is equipped with an advanced firewall. This firewall allows you to open ports, allowing certain programs to gain access to the Internet. You can open these ports using the function ‘Port Forwarding’.

  • Page 20: Url Filtering

    20 | ENGLISH Press the enter key or click ‘Go to’. You will now be asked for a ‘Username’ and a ‘Password’. Fill in ‘admin’ in the ‘Username’ field and ‘admin’ in the ‘Password’ field and press the ‘Enter’ key. The login screen is shown.

  • Page 21: Setting Up Qos

    21 | ENGLISH 8.3 Setting up QoS Thanks to QoS (Quality Of Service) you can make sure that a specific program or computer gets priority above other programs. By using this feature, you are certain that you will not get ‘lag’ in games of hitches during video playback, in case one of the computers starts to download.

  • Page 22: Frequently Asked Questions

    This message appears when the computer did not receive a correct IP address from the router. Make sure all cables are correctly connected. If necessary, reset the EM4542 and try again. It is recommended that you configure the router using a cabled connection (not wireless). After the cabled connection is working properly you can setup the wireless connection as explained in this manual.
  • Page 23 You will now be asked for a ‘Username’ and a ‘Password’. Fill in ‘admin’ in the ‘Username’ field and ‘admin’ in the ‘Password’ field and press the ‘Enter’ key. You are now logged in to the main page of the EM4542. Disconnect the coax cable from your modem. Click ‘Status Summary’ under ‘Basic Setup’.

  • Page 24: Service And Support

    For example alter the IP-address to ‘192.168.6.1’ Click ‘Apply & Restart’ to save the settings. From now on, the EM4542 is accessible on the following address: ‘http://192.168.6.1’ I would like to know my local (computer) IP address. How do I obtain this address? To obtain the IP address, follow the steps below.
  • Page 25 To ensure your safety and compliance of the product with the directives and laws created by the European Commission you can obtain a copy of the Declaration of Conformity concerning your product by sending an e-mail message to: info@eminent- online.com. You can also send a letter to: Eminent Computer Supplies P.O.
