AC Power Connection
Connect the subwoofer power cord to the subwoofer amplifier and directly into an AC outlet.
Convenience outlets located on the rear panel of some AV receivers or pre/pros are NOT recom-
mended for your SB-2000 Pro as these outlets are not meant for high power devices.
Line Level Connection – Single LFE Channel

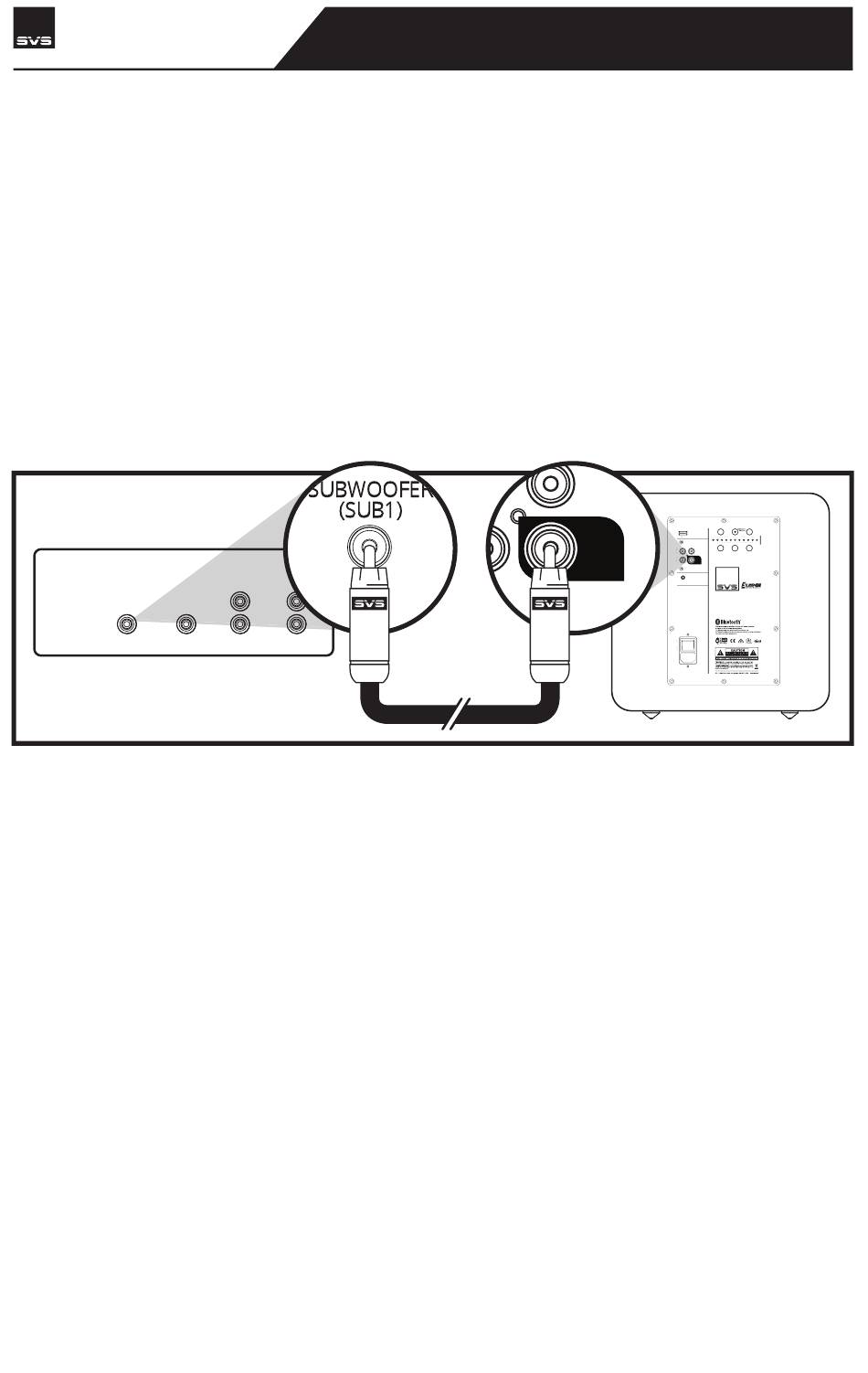

The most common way to connect your SB-2000 Pro is with a single RCA interconnect cable going
from the LFE or SUB1 Output on your AV receiver or preamplifier to the LFE Input on your
SB-2000 Pro. This allows your processor to perform the upstream bass management and send
the subwoofer a pre-filtered mono signal.
RECEIVER/PREAMP
LINE LEVEL OUTPUTS
SUBWOOFER
CENTER
(SUB1)
Line Level Connection – Stereo Receiver or Preamplifier Left/Right Channels
Both Left and Right inputs on your SB-2000 Pro can be used in a two-channel stereo application
with a stereo preamplifier that has Left and Right line level outputs.
Connect the left and right outputs of your preamplifier to the left and right line level inputs of the
SB-2000 Pro using RCA interconnects.
CONNECTING & CONTROLLING YOUR SUBWOOFER
REAR FRONT
SVS SOUNDPATH WIRELESS +
AUDIO ADAPTER
LOW
PASS
5V 150mA 30Hz 40Hz 60Hz 90Hz 140Hz
LINE LEVEL
0° 90°
_
L R
VOL PHASE
LFE
LFE
TRIGGER INPUT
3V-12V | AC/DC
S T A - 5 5 0 D
LFE LOW PASS
180° PHASE
