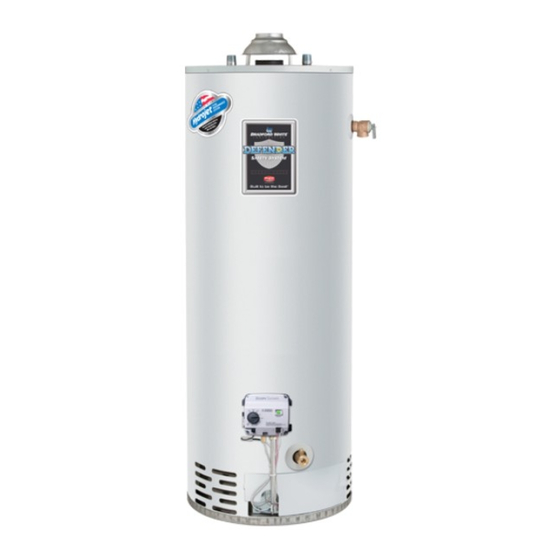

Gas-fired water heater
Hide thumbs Also See for RG250T6N:

Advertisement

A Spanish language version of these instructions is available by contacting
the company listed on the rating plate.
La version espanola de estas instrucciones se puede obtener al escribirle
a la fabrica cuyo nombre aparece en la placa de especificaciones.

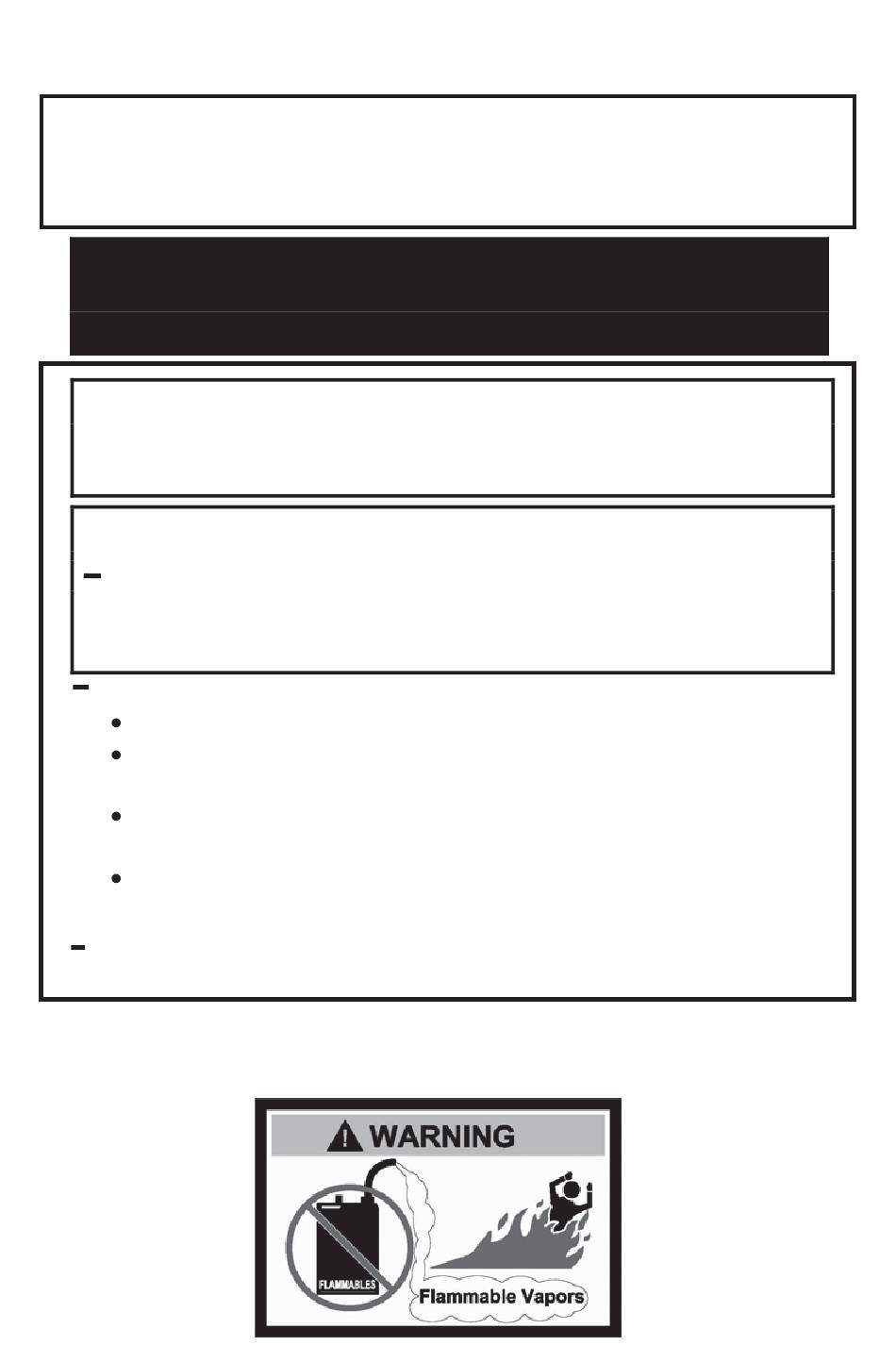

INSTALLATION & OPERATION INSTRUCTION
MANUAL For Flammable Vapor Ignition Resistant
System Equipped Water Heater
WARNING:
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
Do not store or use gasoline or other flammable,
combustible, or corrosive vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
For your family's comfort, safety and convenience, we
recommend this water heater be installed and serviced by a
plumbing professional.
GAS-FIRED WATER HEATER
If the information in these instructions is not
FOR YOUR SAFETY
238-51012-00B REV 3/16
