Luxen Home WHIF1157 Instruction Manual

Thank you for purchasing this Luxen Home product. This product has been manufactured with the highest
standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged
parts. If any parts are missing or damaged, do not attempt to assemble or use the product.
Hardware:
1 ×26 2
(φ6x30 mm)
7 ×1 8 ×1
13 ×16 14 ×4
(φ3x16 mm)
Tools required for assembly: Philips screwdriver and Flathead Screwdriver (if using power tools, use with care)
Instruction Manual
Please save this manual for future reference.

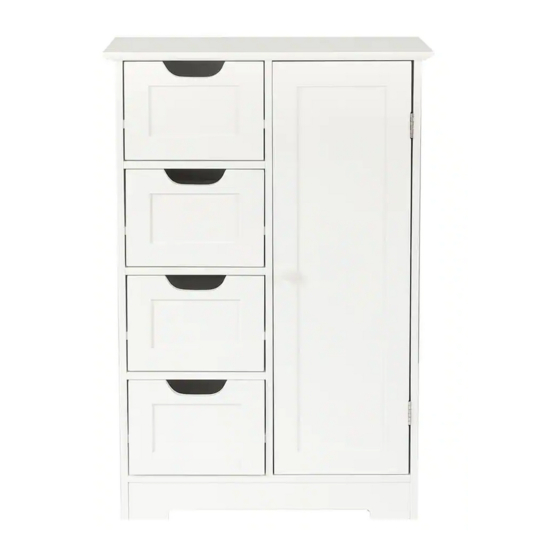

White Wood Storage Cabinet
×12 3 ×12
(φ6x35 mm) (φ15x9.5 mm)
9 ×1
(φ3x16 mm)
15 ×2
(φ4x30 mm)
1:00
4 ×32 5 ×13
(φ3x25 mm) (φ3x10 mm)
10 ×4 11 ×2
(φ2.5x14 mm)
16 ×10 17 ×10
(φ3x14 mm)
6 ×2
12 ×1
