Luxen Home WHIF1873 Instruction Manual

Product Name: 78" Rectangular Gray Wood Expandable Dining Table
SKU #: WHIF1873
Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY.
Unpack all parts from the packaging inside the carton to ensure there are no missing or damaged parts. Place all wooden furniture parts on a clean
flat and so� surface to prevent scratches. Refer to the steps provided below for assembly.
Do not a�empt to assemble or use the product if any parts are missing or damaged.
Open & Close Table Video Link :h�ps://assets.edgenet.com/37335c80-927a-4b33-a4bc-efa457647c32
PART LIST
ITEM DESCRIPTION
A
Table Top
B Table Leg
C
Short Stretcher
D Long Stretcher
A
STEP 1
Do not tighten the Hex
Nut set completely!
B
A
STEP 3
2
step i
8
QTY
1 SET
4 PCS
2 PCS
1 PC
B
4
3
step ii
D
Please save this manual for future reference.
ITEM
JCBC Screw M6 x 45mm
1
Spring Washer M6 x 13mm
2
Hex Nut M8 x 14mm
3
Spring Washer M8 x 14mm
4
Flat Washer M8 x 22mm
5
6 Spanner 12.8mm
7 Allen Key Small M4 x 55mm
8 Button
9 Adjuster
C
STEP 2
C
4
3
Instruc�on Manual
HARDWARE LIST
DESCRIPTION
23 x 16mm
D
Safetylock

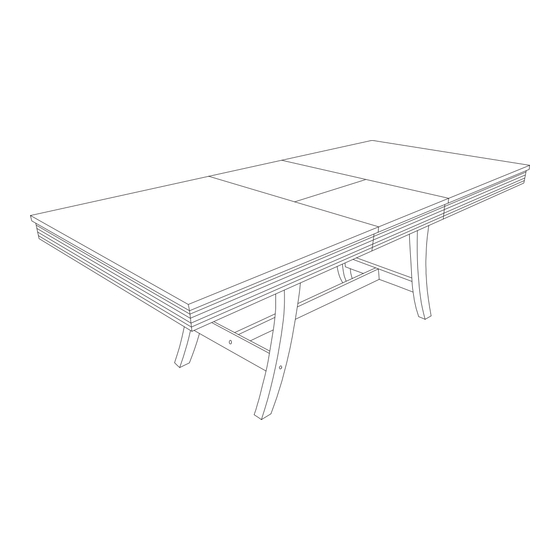

COMPLETED ASSEMBLY
,
QTY
6 PCS
6 PCS
8 PCS
8 PCS
8 PCS
1 PC
1 PC
4 PCS
4 PCS
