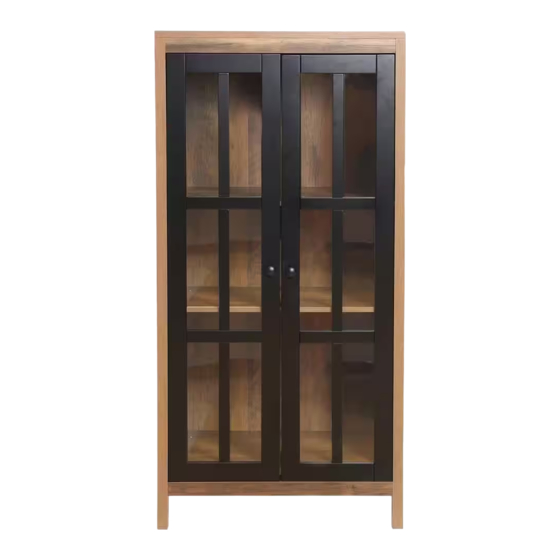

Natural Wood Glass 2-Door Accent Cabinet
Product Name:
SKU #:
WHIF1671
Thank you for purchasing this Luxen H
standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged
parts. If any parts are missing or damaged, do not attempt to assemble or use the product.
Hardware:
1 ×13
2 ×13
7 ×2
8 ×2
M4*18
14 ×4
13 ×2
Tools required for assembly: Philips screwdriver and Flathead Screwdriver (if using power tools, use with care)
ome
product. This product has been manufactured with the highest
3 ×19
9 ×2
M4*12
M4*30
15 ×6
0:45
Please save this manual for future reference.
4 ×4
5 ×24
10 ×2
11 ×4
M4*35
16 ×6
17 ×2
M3*12
Instruction Manual
6 ×2
M4*14
12 ×2
M2.5*12
Advertisement
Related Manuals for Luxen Home WHIF1671
Summary of Contents for Luxen Home WHIF1671
- Page 1 Please save this manual for future reference. Natural Wood Glass 2-Door Accent Cabinet Product Name: SKU #: WHIF1671 Thank you for purchasing this Luxen H product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
- Page 2 Instruction Manual Please save this manual for future reference. Natural Wood Glass 2-Door Accent Cabinet Product Name: SKU #: WHIF1671 Panels: ×2...
- Page 3 Instruction Manual Please save this manual for future reference. Natural Wood Glass 2-Door Accent Cabinet Product Name: WHIF1671 SKU #: Make sure the pins are installed correctly as shown with the “check mark” below: 1 ×4 Below shows how the pins are used to assemble the panels together.
- Page 4 Instruction Manual Please save this manual for future reference. Product Name: Natural Wood Glass 2-Door Accent Cabinet WHIF1671 SKU #: Step 2 Screw cam bolt (1) to rail I, Insert wood plug (3) to H,Assemble I to bottom panel H, then Insert cam lock (2) and tighten.
- Page 5 Natural Wood Glass 2-Door Accent Cabinet Product Name: SKU #: WHIF1671 Step 3 Insert wood plug (3) to rail E,shelf F & bottom panel H. Assemble E, F & H to B & C , then Insert cam lock (2) and tighten.
- Page 6 Natural Wood Glass 2-Door Accent Cabinet Product Name: SKU #: WHIF1671 Step 4 Insert back panel D align with groove. Insert wood plug (3) to B & C, Assemble the top panel A to the unit, then Insert cam lock (2) and tighten.
- Page 7 Instruction Manual Please save this manual for future reference. Natural Wood Glass 2-Door Accent Cabinet Product Name: SKU #: WHIF1671 Step 5 11 ×4 Insert layer supports (11) into the side panels. Put adjustable shelf G on place.
- Page 8 Please save this manual for future reference. Natural Wood Glass 2-Door Accent Cabinet Product Name: SKU #: WHIF1671 Step 6 4 ×4 Assemble the hinges (4) to door J with screws (5), Fix handle (6) to J with bolt (7).
- Page 9 Instruction Manual Please save this manual for future reference. Natural Wood Glass 2-Door Accent Cabinet Product Name: SKU #: WHIF1671 Step 7 5 ×16 Assemble the doors to the cabinet with screw (5).
- Page 10 Please save this manual for future reference. Product Name: Natural Wood Glass 2-Door Accent Cabinet SKU #: WHIF1671 Step 8 9 ×2 Draw a loaction hole on Wall. Drill a hole on the wall to input wall plug (13) , Fix the cabinet to wall with screws (9) as shown.
