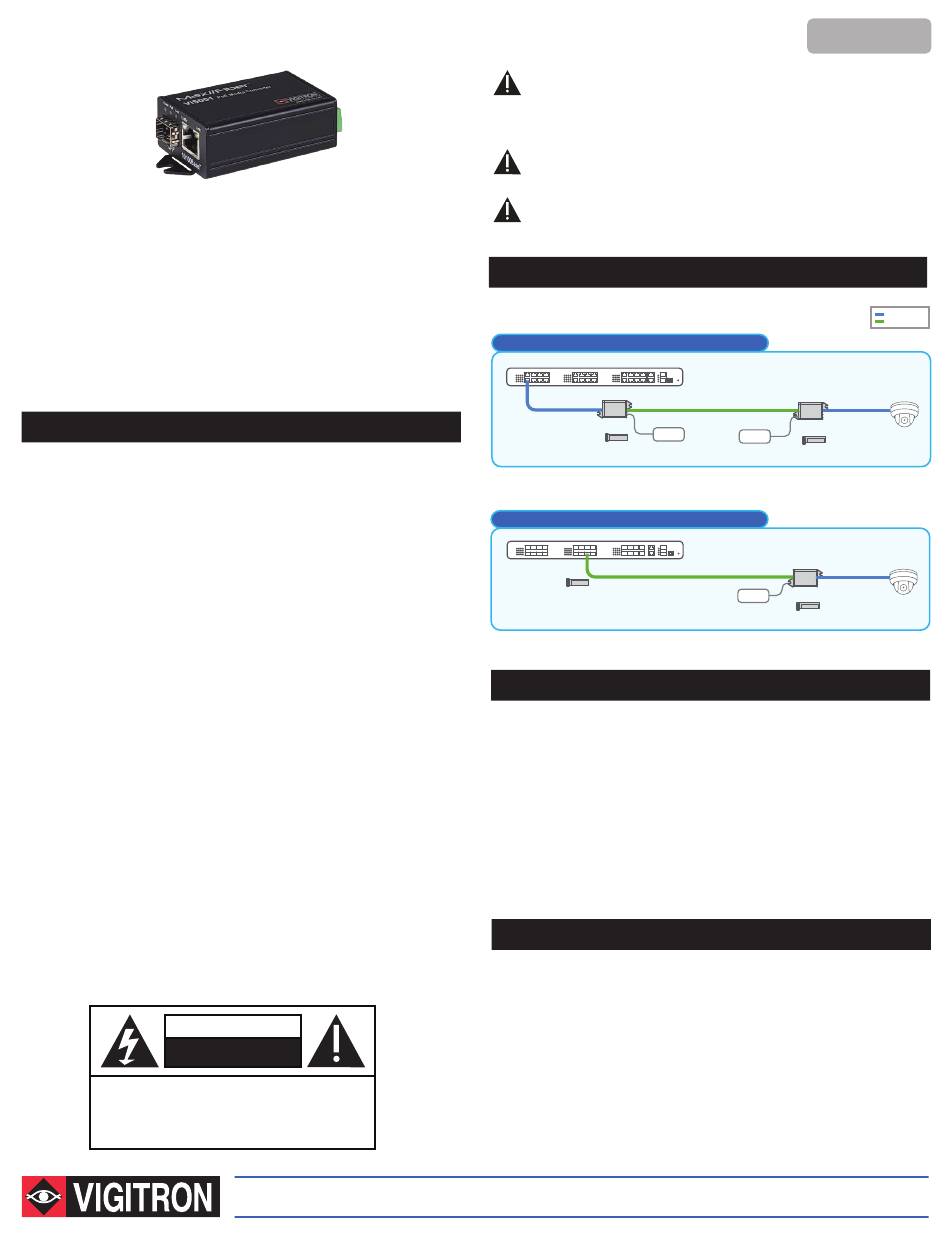

Vigitron MaxiiFiber Vi5001 Installation

Vi5001 Fiber Media convertor with 30W PoE Installation
Vigitron's Vi5001 is a media converter that enables Ethernet signals to be
transmitted over fiber optic cables to meet long distance transmission
applications or reusing existing analog fiber connections for IP applica-
tions. The use of SFP fiber modules resulting in compatibility with all
major single-mode and multi-mode fiber optics cables to achieve
transmission distances depending on the cable and SFP. The Vi5001 also
provides IEEE 802.3af/at PoE up to 30W to the connected IP device such
as IP camera swhen used with appropriate power supplies.
The Vi5001 is an ideal solution for converting existing analog fiber
infrastructures to IP systems. It provides a unique, reliable, and cost
effective solution to combine a variety of transmission methods to meet
any application requirement.
Important Safety Warning
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer's instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP or Coax signals in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 70° C.
- Make sure that the external power supply output voltage is in the recom
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus (including DVRs) that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The powe plug is used as the disconnect device and shall remain readily
operable.
CAUTION
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
DO NOT OPEN
The Smart Choice for Transmission Solutions
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet thru an AC to DC Power supply.
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.
Application Drawing
Connecting and powering IP Cameras over Fiber cables
PoE Switch
Vi5001
Data + PoE
328 ft. (100m)
+
Vi0012
SFP
Power
Supply
12VDC
The Vi5001s are used for long distance high bandwidth transmission applications. The
Vi5001 provides up to 30W PoE power to meet the high power requirements. of PoE
Connecting and powering IP Cameras over Fiber cables
Fiber Switch
+
SFP
up to 80Km
By using the SFPs, the Vi5001 will be compatible with most installed fiber types and can be
directly connected to SFP modules installed in network switches.
IP Camera-end Installation
- Insert a suitable 100MBps SFP into the SFP socket of the Vi5001. The
SFP needs to match the specification of the fiber optics cable.
- Connect the fiber connector of the optical wire to the SFP.
- If the IP Camera is non-PoE use an approved 12VDC or 48VDC power
adapter to power the Vi5001.
- If the IP Camera is a PoE enabled use the Vi0017 or another approved
48VDC power adapter to power the Vi5001.
- Connect the IP camera RJ45 connector to the "10/100BaseT Ethernet" port
of Vi5001 using a standard Cat5/6 cable of maximum 100m in length.
Ethernet Switch/NVR-end Installation
- Connect an approved 12VDC power supply to the power connector of
Vi5001. A power adapter connector is provided to simplify connection.
- Connect the RJ45 connector of the Ethernet switch to the 10/100BaseT
Ethernet port of Vi5001 using a standard Cat5/6 cable of maximum
328 feet (100 m) in length.
- Connect one end of the long fiber optic cable to a SFP module, then
connect the SFP module to the SFP socket of Vi5001.
The Ethernet link, Fiber link, activity LEDs should be "ON" and "Blink" to
indicate the status of each port.
Maxii
Vi5001
Data Data +
up to 80Km 328 ft. (100m)
+
Vi0017
SFP
Power
Supply
56VDC
Vi5000
Data
Data +
328 ft. (100m)
+
Power
SFP
Supply
www.vigitron.com
Fiber
TM
Cat 5/6
Fiber Optics
PoE Camera
PoE
PoE Camera
PoE
Vi5001_UM
