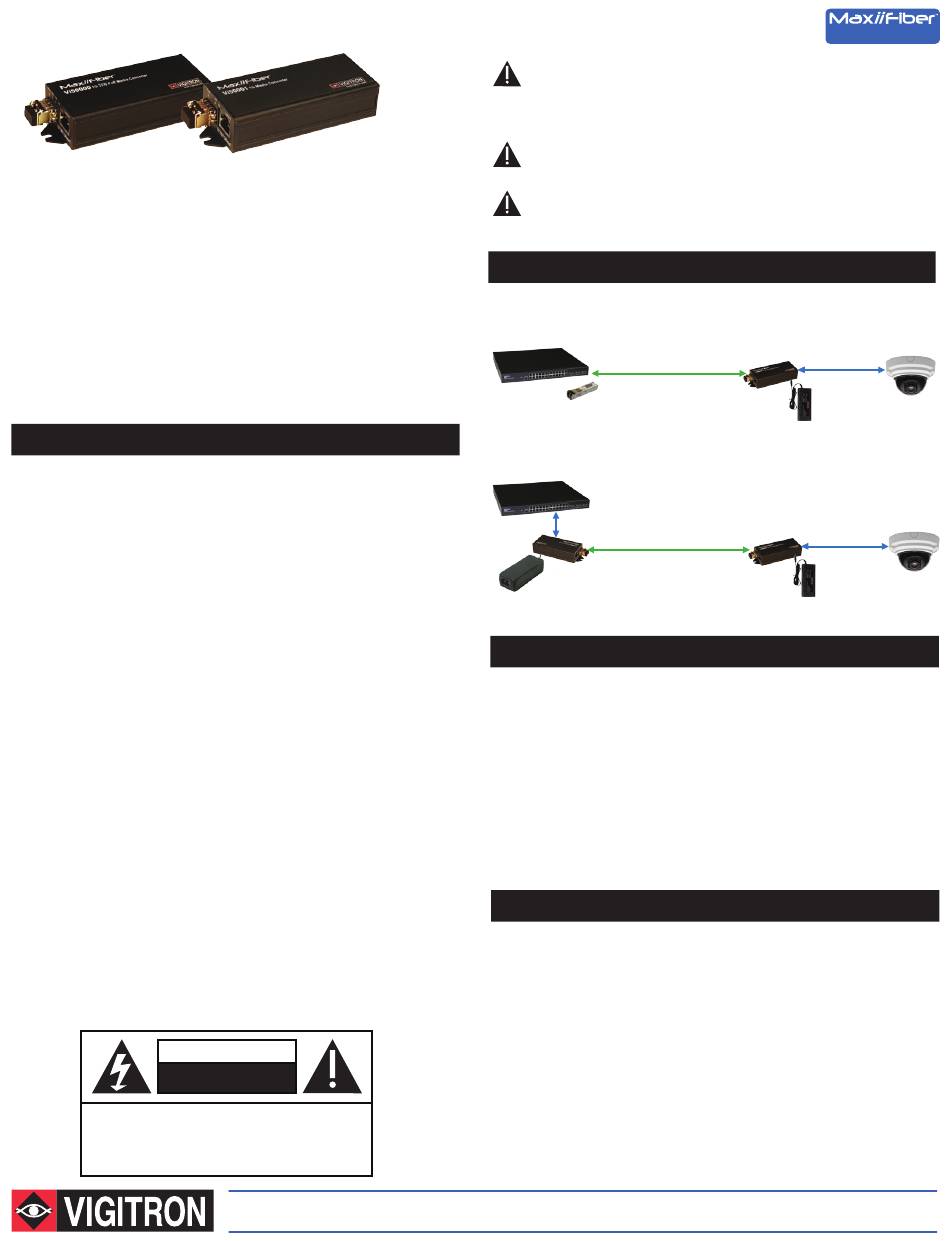

Vigitron Vi50000A Installation

Vi50000A and Vi50001 PoE Media Converter Installation
Vigitron's Vi50000A and Vi50001 work together to form a media converter
that enables Ethernet signals to be transmitted over fiber optic cables to
meet long distance transmission applications or reusing existing analog
fiber connections for IP applications.
The use of SFP fiber modules resulting in compatibility with all major
single-mode and multi-mode fiber optics cables to achieve transmission
distances depending on the cable and SFP. The Vi50000A provides IEEE
802.3af/at and 60W PoE to the connected IP device such as IP camera
when used with appropriate power supplies. The Vi50001 can be
powered locally or by a PoE source.
The Vi50000A/Vi50001 is an ideal solution for converting existing analog
fiber infrastructures to IP systems. It provides a unique, reliable, and cost
effective solution to combine a variety of transmission methods to meet
any application requirement.

Important Safety Warning

- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer's instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP or Coax signals in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 75° C.
- Make sure that the external power supply output voltage is in the recom
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus (including DVRs) that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The power plug is used as the disconnect device and shall remain readily
operable.
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
DO NOT OPEN
The Smart Choice for Transmission Solutions
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet thru an AC to DC Power supply.
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.

Application Drawing

The Vi50000A connects to the optical port of Network Switch
Vi3026/Vi3326
Fiber
+
SFP
The Vi50000A connects to a Vi50001
Vi3026/Vi3326
+
Vi50001 SFP
Fiber
Vi0012

IP Camera-end Installation

- Insert a suitable 1000MBps SFP into the SFP socket of the Vi50000A. The
SFP needs to match the specification of the fiber optics cable.
- Connect the fiber connector of the optical wire to the SFP.
- If the IP Camera is non-PoE use an approved 12VDC power adapter to
power the Vi50000A.
- If the IP Camera is a PoE enabled use the Vi0017, Vi1120, or another
approved 48VDC power adapter to power the Vi50000A.
- Connect the IP camera's RJ45 connector to the "10/100/1GBaseT Ethernet"
port.

Ethernet Switch/NVR-end Installation

- Connect an approved 12VDC power supply to the power connector of
Vi50001 if there is no PoE available. A power adapter connector is provided
to simplify connection.
- Connect the RJ45 connector of the Ethernet switch to the 10/100/1GBaseT
Ethernet port of Vi50001 using a standard Cat5/6 cable of maximum
328 feet (100 m) in length.
- Connect one end of the long fiber optic cable to a SFP module, then
connect the SFP module to the SFP socket of Vi50001.
The Ethernet link, Fiber link, activity LEDs should be "ON" and "Blink" to
indicate the status of each port.
Media Converter
60W PoE
+
Camera
Vi50000A SFP
Data & PoE
Vi1120
60W PoE
+
Camera
Vi50000A SFP
Data & PoE
Vi1120
www.vigitron.com
