DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2. 1077(a)
Responsible Party Name: G.B.T. INC.
Address: 18305 Valley Blvd., Suite#A
LA Puent, CA 91744
Phone/Fax No: (818) 854-9338/ (818) 854 -9339
hereby declares that the product
Product Name:
Mother Board
GA-6CMC7,GA -6CMC7R
Model Number:
Conforms to the following specifications:
FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a),
Class B Digital Device
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful
and
(2)
this device must accept any inference received, including
that may cause undesired operation.
Representative Person's Name:
ERIC LU
Eric Lu
Signature:
Date:
Mar. 24, 2000
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna
-Move the equipment away from the receiver
-Plug the equipment into an outlet on a circuit different from that to which the
receiver is connected
-Consult the dealer or an experienced radio/television technician for additional
suggestions
You are cautioned that any change or modifications to the equipment not expressly
approve by the party responsible for compliance could void Your authority to
operate such equipment.
This device complies with Part 15 of the FCC Rules. Operation is subjected to the
following two conditions 1) this device may not cause harmful interference and 2)
this device must accept any interference received, including interference that may
cause undesired operation.

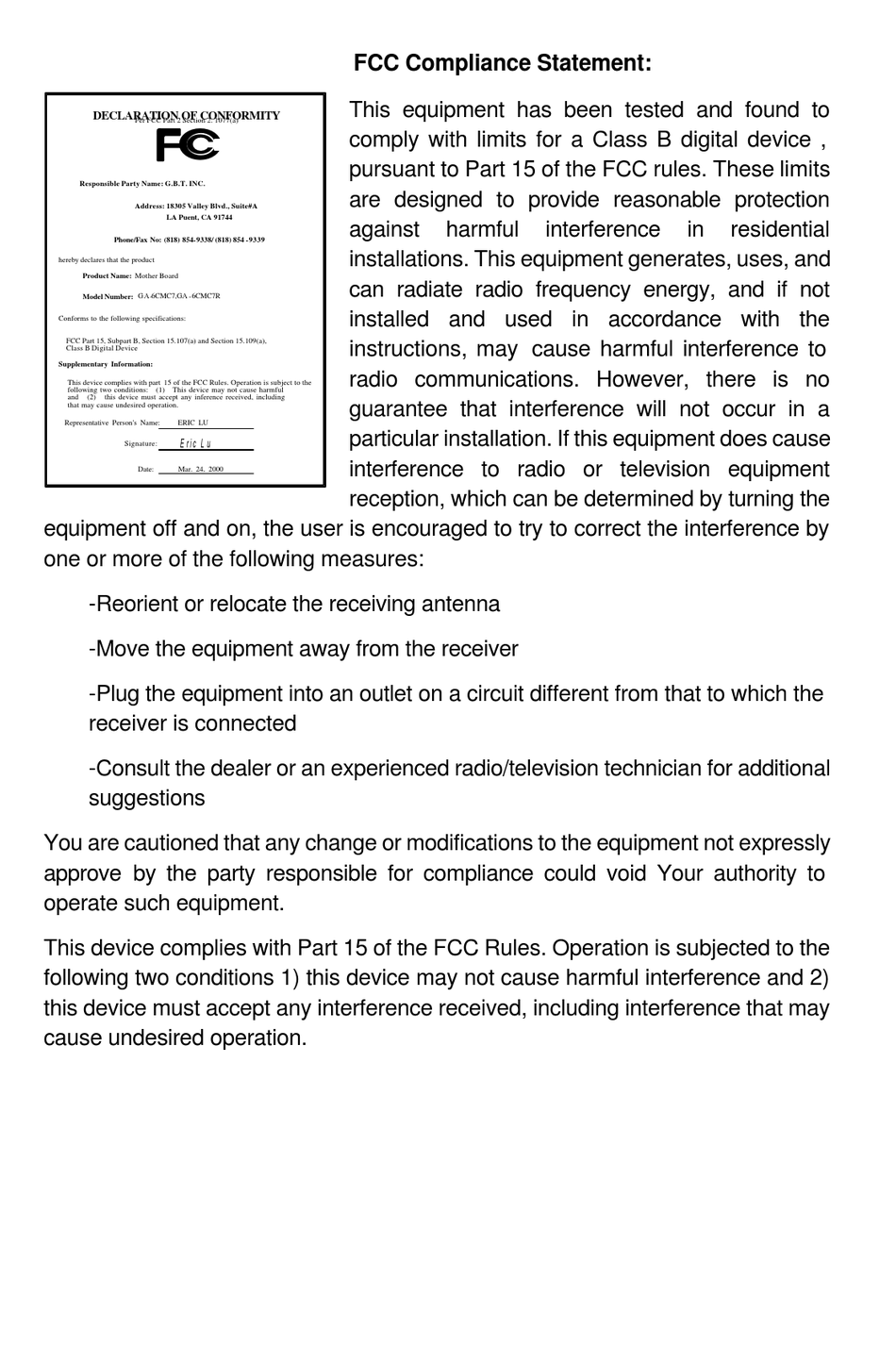

FCC Compliance Statement:
This equipment has been tested and found to
comply with limits for a Class B digital device ,
pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection
against
harmful
installations. This equipment generates, uses, and
can radiate radio frequency energy, and if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
interference to radio or television equipment
reception, which can be determined by turning the
interference
in
residential

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-6CMC7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gigabyte GA-6CMC7

  • Page 1 LA Puent, CA 91744 Phone/Fax No: (818) 854-9338/ (818) 854 -9339 hereby declares that the product Product Name: Mother Board GA-6CMC7,GA -6CMC7R Model Number: Conforms to the following specifications: FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a), Class B Digital Device Supplementary Information: This device complies with part 15 of the FCC Rules.
  • Page 2: Declaration Of Conformity

    Safety of household and similar electrical appliances (Stamp) Declaration of Conformity We, Manufacturer/Importer (full address) G.B.T. Technology Träding GMbH declare that the product Mother Board GA-6CMC7, GA-6CMC7R is in conformity with EN 61000-3-2* EN60555-2 EN61000-3-3* EN60555-3 EN 50081-1 EN 50082-1 EN 55081-2...
  • Page 3 6CMC7 Series Socket 370 Processor Motherboard USER'S MANUAL Socket 370 Processor Motherboard REV. 1.1 Second Edition R-11-02-000425...
  • Page 4 How this manual is organized This manual is divided into the following sections: 1) Revision List 2) Item Checklist 3) Features 4) Hardware Setup 5) Performance & Block Diagram Product performance & block diagram 6) Suspend to RAM 7) BIOS Setup 8) Appendix Manual revision information Product item list...
  • Page 5: Table Of Contents

    Revision History Item Checklist Summary of Features 6CMC7/ 6CMC7R Motherboard Layout Page Index for CPU Speed Setup / Over Clock Jumper Setting / Connectors / Panel and Jumper Definition Performance List Block Diagram Suspend to RAM Installation Memory Installation Page Index for BIOS Setup Appendix Table Of Content P.28...
  • Page 7: Revision History

    6CMC7/ 6CMC7R Motherboard Revision History Revision Revision Note Initial release of the 6CMC7/ 6CMC7R motherboard user’s manual. Second release of the 6CMC7/6CMC7R motherboard user’s manual. The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein.
  • Page 8: Item Checklist

    Item Checklist Item Checklist þThe 6CMC7/ 6CMC7R Motherboard þCable for IDE / Floppy device þCD (IUCD) for motherboard utilities oInternal USB Cable (Optional) þ6CMC7/ 6CMC7R User’s Manual...
  • Page 9: Summary Of Features

    6CMC7/ 6CMC7R Motherboard Summary of Features Form factor Ÿ Ÿ Ÿ Chipset Ÿ Ÿ Ÿ Clock Generator Ÿ Memory Ÿ I/O Control Ÿ Slots Ÿ Ÿ Ÿ Ÿ On-Board IDE Ÿ Ÿ On-Board Ÿ Peripherals Ÿ Ÿ Ÿ Ÿ Ÿ Hardware Monitor Ÿ...
  • Page 10 On-Board Sound Ÿ Ÿ PS/2 Connector Ÿ interface BIOS Ÿ On-Board LAN Ÿ Additional Features Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ AC’97 Line In / Line Out / Mic In / AUX In / CD In / TEL / Game Port PS/2 Keyboard interface and PS/2 Mouse Licensed AMI BIOS, 4M bit FWH...
  • Page 11: 6Cmc7/ 6Cmc7R Motherboard Layout

    6CMC7/ 6CMC7R Motherboard 6CMC7/ 6CMC7R Motherboard Layout JP16 PS/2 PGA 370 82820 Intel 82559 JP24 PCI 1 JP26 AC97 PCI 2 JP10 PCI 3 AMR 1 JP11 JP18 82805 6CMC7 AGP 1 BAT1 JP27 JP22 JP28 JP21 JP15 LED1 JP29 JP20 82801 BZ 1...
  • Page 12: Page Index For Cpu Speed Setup / Over Clock Jumper Setting

    Page Index for CPU Speed Setup/ Over Clock Jumper Setting / Connectors / Panel and Jumper Definition CPU Speed Setup Over Clock Jumper Setting JP20 (SDRAM Over Clock) [Optional] JP29 (Over Clock Voltage for SDRAM) [Optional] J22 (Over Voltage CPU Speed Up) [Optional] Connectors GAME &...
  • Page 13 6CMC7/ 6CMC7R Motherboard JP27& JP28 (USB Port Selection) [Optional] JP16 (PS/2 Keyboard Power On) JP18 (STR Selection) JP17(Case Open) P.23 P.24 P.24 P.25...
  • Page 14 JP6 (Timeout Reboot Function) JP5 (Safe mode/Recovery/Normal) JP4 (Clear CMOS Function) JP9 (Top Block Lock) JP10 (FWH Write Protection) [Optional] JP14 (Buzzer Enable) [Optional] JP11 (AMR Select) JP24 (Onboard LAN Function) [Optional] JP1 (Cyrix CPU Turbo Function) [Optional] JP26 (PME Function) [Optional] JP21 (Front USB Device Wake Up Selection) [Optional] JP3 (USB Device Wake Up Selection) J21 (SPK) [Optional]...
  • Page 15: Cpu Speed Setup

    CPU Speed Setup The system bus frequency can be switched at 100MHz ,133MHz and Auto by adjusting JP8 & SW1. The CPU Frequency is control by BIOS. JP8 / SW1 Select the System Speed at 100MHz , 133MHz and Auto. Auto (O: ON / X : OFF) MJP8 Open : Force 100MHz...
  • Page 16: Over Clock Jumper Setting

    6CMC7/ 6CMC7R Motherboard Over Clock Jumper Setting (We don’t guaranteed over clock jumper to work à JP20,JP29,J22) JP20: SDRAM Over Clock (Optional) Close : Normal (Default) CPU CLK DRAM CLK * 105 * 110 * 115 * 120 * 125 * 140 * 150 If instability should occur to your system, please adjust JP29.
  • Page 17: Jp29 (Over Clock Voltage For Sdram) [Optional]

    6CMC7/ 6CMC7R Motherboard JP29 : Over Clock Voltage for SDRAM (Optional) J22 : Over Voltage CPU Speed Up (Optional)(Magic Booster) Pin No. Definition 1-2close Over Clock 2-3close Normal (Default) Pin No. close close close close 9-10 close 11-12 close Definition Normal (Default)
  • Page 18: Connectors

    6CMC7/ 6CMC7R Motherboard Connectors GAME & Audio Port GAME Port Line Out Line In COM A / COM B / LPT Port LPT Port COM A COM B...
  • Page 19: Ps/2 Keyboard & Ps/2 Mouse Connector

    6CMC7/ 6CMC7R Motherboard USB & LAN : USB & LAN Connector PS/2 Keyboard & PS/2 Mouse Connector Pin No. 1 2 3 4 1 – Green LED (LAN Link LED) 2 – Yellow LED (LAN Active LED) PS/2 Mouse PS/2 Keyboard Definition USB V0 USB D0-...
  • Page 20: J1 (Cpu Fan)

    J1 : CPU FAN J17 : Power FAN Pin No. Definition Control +12V SENSE Pin No. Definition Control +12V SENSE Connectors...
  • Page 21: J16 (System Fan)

    6CMC7/ 6CMC7R Motherboard J16 : System FAN ATX Power Pin No. Definition Control +12V SENSE Pin No. 3,5,7,13,15-17 1,2,11 4,6,19,20 5V SB stand by+5V PS-ON(Soft On/Off) Definition 3.3V +12V -12V Power Good...
  • Page 22: Floppy Port

    Connectors Floppy Port RED LINE IDE1(Primary) , IDE2 (Secondary) Port RED LINE IDE 2 IDE 1...
  • Page 23: Jp15 (Str Led Connector & Dimm Led)

    6CMC7/ 6CMC7R Motherboard JP15 : STR LED Connector & DIMM LED PIN No. Definition VCC(+5V) IR data input IR data output STR LED Connector External. JP15 DIMM LED...
  • Page 24: J8 (Aux_In)

    J8 : AUX_IN J6 : CD Audio Line In Pin No. Definition AUX-L AUX-R Pin No. Definition CD-L CD-R Connectors...
  • Page 25: J7 (Tel)

    6CMC7/ 6CMC7R Motherboard J7 : TEL(The connector is for internal modem card with voice connector) J2: Wake On LAN Pin No. Definition Signal -In Signal-Out Pin No. Definition +5V SB Signal...
  • Page 26: J10: Ring Power On

    J10: Ring Power On J15 : External SMBUS Device Connector (For 6CMC7) (For 6CMC7R) Pin No. Definition Signal Pin No. Definition SMB CLK SMB DATA Connectors...
  • Page 27: Jp22 (Front Panel Usb Port)

    6CMC7/ 6CMC7R Motherboard JP22 : Front Panel USB Port J19 : Audio PIN Pin No. Definition 1,4,5,10 3,7,9 USBP1+ USBP1- Pin No. Definition Line out_L Line out_R 3,4,5,6 +12V...
  • Page 28: J20 (Cd/In Pin)

    J20 : CD/IN PIN J12: Smart Card Reader Pin No. Definition CD_L CD_R Pin No. Definition 2,3,4,8,9,13, SCRFET- SCRRST SCRCLK SCRIO SCRPRES- Connectors...
  • Page 30: Panel And Jumper Definition

    Panel and Jumper Definition J23 : For 2X11 Pins Jumper (for 6CMC7) GN (Green Switch) GD (Green LED) HD (IDE Hard Disk Active LED) SPKR (Speaker Connector) RE (Reset Switch) P+P P (Power LED) PW (Soft Power Connector) Panel and Jumper Definition S P K P P P+ Open: Normal Operation...
  • Page 31: J11 (Panel Jumper) [For 6Cmc7R]

    6CMC7/ 6CMC7R Motherboard J11 : Panel Jumper (for 6CMC7R) JP27 & JP28 : USB Port Selection (Optional) PW LED ¯ ¯ ¯ HD LED JP27 JP28 FPUSB BPUSB JP27 1-2 close 2-3 close JP28 1-2 close 2-3 close...
  • Page 32: Jp16 (Ps/2 Keyboard Power On)

    JP16 : PS/2 Keyboard Power On JP18 : STR Selection Panel and Jumper Definition Pin No. Definition 1-2 close Keyboard Power on 2-3 close Normal (Default) Pin No. Definition Open STR Disable (Default) Close STR Enable...
  • Page 33: Jp17(Case Open)

    6CMC7/ 6CMC7R Motherboard JP17 : Case Open JP6 : Timeout Reboot Function Pin No. Definition Signal Pin No. Definition Open Timeout reboot Close No Reboot on timeout (Default)
  • Page 34: Jp5 (Safe Mode/Recovery/Normal)

    JP5: Safe mode / Recovery / Normal JP4 : Clear CMOS Function (Optional) Panel and Jumper Definition Pin No. Definition 1-2close Normal (Default) 2-3close Safe mode 1-2-3open Recovery Pin No. Definition 1-2 close Clear CMOS 2-3 close Normal (Default)
  • Page 35: Jp9 (Top Block Lock)

    6CMC7/ 6CMC7R Motherboard JP9 : Top Block Lock JP10 : FWH Write Protection (Optional) Pin No. Definition Close Top Block Unlock (Default) Open Top Block lock Pin No. Definition Close Write Protect Open Normal (Default)
  • Page 36: Jp14 (Buzzer Enable) [Optional]

    JP14 : Buzzer Enabled (Optional) JP11 : AMR Selection Panel and Jumper Definition Pin No. Definition Open Internal Buzzer Disabled Internal Buzzer Enabled Close (Default) Pin No. Definition 1-2close AMR Secondary AMR Primary AC’ 97 Disabled 2-3close (Disabled Onboard CODEC)
  • Page 37: Jp24: Onboard Lan Function (Optional)

    6CMC7/ 6CMC7R Motherboard JP24: Onboard LAN Function (Optional) JP1: Cyrix CPU Turbo Function (Optional) Pin No. Definition 1-2 close Onboard LAN Enabled (Default) 2-3 close Onboard LAN Disabled Pin No. Definition Open Normal Close Force 133...
  • Page 38: Jp26: Pme Function (Optional)

    JP26: PME Function (Optional) JP21 : Front USB Device Wake up Selection (Optional) Pin No. Definition Open PME Disable (Default) Close PME Enable Pin No. Definition Front USB Device 1-2 close Wake Up 2-3 close Normal (Default) (If you want to use “USB KB/Mouse Wake from S3” function, you have to set the BIOS setting “USB KB/Mouse Wake from S3”...
  • Page 39: Jp3: Usb Device Wake Up Selection

    6CMC7/ 6CMC7R Motherboard JP3: USB Device Wake up Selection J21 : SPK (Optional) Pin No. Definition Enabled USB Device 1-2 close Wake up 2-3 close Normal (Default) (If you want to use “USB KB Wakeup from S3” function, you have to set the BIOS setting “USB KB Wakeup from S3”...
  • Page 40: Bat1 : Battery

    BAT1 : Battery Panel and Jumper Definition Danger of explosion if battery is incorrectly replaced. + Replace only with the same or equivalent type recommended by the manufacturer. + Dispose of used batteries according to the manufacturer’ s instructions.
  • Page 41: Performance List

    6CMC7/ 6CMC7R Motherboard Performance List The following performance data list is the testing results of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users. (The different Hardware & Software configuration will result in different benchmark testing results.) Pentium III 733/700MHz processor DRAM...
  • Page 42 Celeron 350 MHz processor DRAM (128x1)MB SDRAM (NEC D4564841G5-A75-9JF) CACHE SIZE 256 KB included in CPU DISPLAY GA-660 PLUS STORAGE Onboard IDE (QUANTUM KA13600AT) O.S. Windows NT™ 4.0 SPK6 DRIVER Display Driver at 1024 x 768 x 16bit colors x 75Hz. Processor Winbench99 CPU mark 99...
  • Page 43: Block Diagram

    6CMC7/ 6CMC7R Motherboard Block Diagram Host Bus Intel 33MHz 82559 AC97 L-IN CODEC L-OUT Port 66 MHz 100 / 133 MHz Socket INTEL FW82820 (MCH) 300/400MHz 66MHz 33MHz 33MHz INTEL FW82801 48MHz Slot Ultra Port ATA66/33 IDE Ports 16.67MHz DIMM 9248BF-77 Clock Generator...
  • Page 44: Suspend To Ram Installation

    Suspend to RAM Installation Suspend to RAM Installation A.1 Introduce STR function: Suspend-to-RAM (STR) is a Windows 98 ACPI sleep mode function. When recovering from STR (S3) sleep mode, the system is able, in just a few seconds, to retrieve the last “state” of the system before it went to sleep and recover to that state.
  • Page 45 6CMC7/ 6CMC7R Motherboard Step 2: (If you want to use STR Function, please set jumper JP18 (Closed.) Step 3: Power on the computer and as soon as memory counting starts, press <Del>. You will enter BIOS Setup. Select the item “POWER MANAGEMENT SETUP”, then select “ACPI Sleep Type: S3 /STR”.
  • Page 46 A.3 How to put your system into STR mode? There are two ways to accomplish this: 1. Choose the “Stand by” item in the “Shut Down Windows” area. A. Press the “Start” button and then select “Shut Down” B. Choose the “Stand by” item and press “OK” Suspend to RAM Installation...
  • Page 47 6CMC7/ 6CMC7R Motherboard Define the system ”power on” button to initiate STR sleep mode: A. Double click “My Computer” and then “Control Panel” B. Double click the “ Power Management” item.
  • Page 48 C. Select the “Advanced” tab and “Standby” mode in Power Buttons. Step 4: Restart your computer to complete setup. Now when you want to enter STR sleep mode, just momentarily press the “Power on” button.. A.4 How to recover from the STR sleep mode? There are seven ways to “wake up”...
  • Page 49 6CMC7/ 6CMC7R Motherboard...
  • Page 50 A.5 Notices : In order for STR to function properly, several hardware and software requirements must be satisfied: A. Your ATX power supply must comply with the ATX 2.01 specification (provide more than 720 mA 5V Stand-By current). B. Your SDRAM must be PC-100 compliant. 2.
  • Page 52: Memory Installation

    Memory Installation The motherboard has 2 dual inline memory module (DIMM) sockets. The BIOS will automatically detects memory type and size. To install the memory module, just push it vertically into the DIMM Slot .The DIMM module can only fit in one direction due to the two notch. Memory size can vary between sockets.
  • Page 53: Page Index For Bios Setup

    6CMC7/ 6CMC7R Motherboard $ Page index for BIOS Setup The Main Menu Standard CMOS Setup BIOS Features Setup Chipset Features Setup Power Management Setup PNP/ PCI Configuration Load BIOS Defaults Load Setup Defaults Integrated Peripherals Hardware Monitor Setup Supervisor / User Password IDE HDD Auto Detection Save &...
  • Page 54 6CXC/6CXC-1 Motherboard...
  • Page 56: Entering Setup

    BIOS Setup BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off. ENTERING SETUP Power On the computer and press <Del>...
  • Page 57: Getting Help

    6CMC7/ 6CMC7R Motherboard GETTING HELP Main Menu The on-line description of the highlighted setup function is displayed at the bottom of the screen. Status Page Setup Menu / Option Page Setup Menu Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item.
  • Page 58: Supervisor Password

    Standard CMOS Setup This setup page includes all the items in standard compatible BIOS. BIOS Features Setup This setup page includes all the items of AMI special enhanced features. Chipset Features Setup This setup page includes all the items of chipset special features. Power Management Setup This setup page includes all the items of Green function features.
  • Page 59 6CMC7/ 6CMC7R Motherboard Save & Exit Setup Save CMOS value settings to CMOS and exit setup. Exit Without Saving Abandon all CMOS value changes and exit setup.
  • Page 60: Standard Cmos Setup

    Standard CMOS Setup The items in Standard CMOS Setup Menu (Figure 2) are divided into 10 categories. Each category includes no, one or more than one setup items. Use the arrows to highlight the item and AMIBIOS SETUP – STANDARD CMOS SETUP ( C ) 1999 American Megatrends, Inc.
  • Page 61 6CMC7/ 6CMC7R Motherboard Primary Master, Slave / Secondary Master, Slave The category identifies the types of hard disk from drive C to F that has been installed in the computer. There are two types: auto type, and user definable type. User type is user-definable; Auto type which will automatically detect HDD type.
  • Page 62: Boot Sector Virus Protection

    Boot Sector Virus Protection If it is set to enable, the category will flash on the screen when there is any attempt to write to the boot sector or partition table of the hard disk drive. The system will halt and the following error message will appear in the mean time.
  • Page 63: Bios Features Setup

    6CMC7/ 6CMC7R Motherboard BIOS Features Setup AMIBIOS SETUP – BIOS FEATURES SETUP ( C ) 1999 American Megatrends, Inc. All Rights Reserved Boot Device Boot Device Boot Device S.M.A.R.T. for Hard Disks BootUp Num-Lock Floppy Drive Seek Password Check Processor Serial Number BIOS Write Protect 1st / 2nd / 3rd Boot Device Floppy...
  • Page 64: Password Check

    S.M.A.R.T. for Hard Disks Enable Enable S.M.A.R.T. Hard for Disks. Disable Disable S.M.A.R.T. Hard for Disks. (Default Value) Boot Up Num-Lock Keypad is number keys. (Default Value). Keypad is arrow keys. Floppy Drive Seek During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360 type is 40 tracks while 720 , 1.2 and 1.44 are all 80 tracks.
  • Page 65: Chipset Features Setup

    6CMC7/ 6CMC7R Motherboard Chipset Features Setup AMIBIOS SETUP – CHIPSET FEATURES SETUP ( C ) 1999 American Megatrends, Inc. All Rights Reserved SDRAM CAS Latency Memory Buffer Strength ICH Delayed Transaction ICH DCB Enable Graphics Aperture Size CPU Ratio Selection USB Controller USB Legacy Support Figure 4: Chipset Features Setup...
  • Page 66: Graphics Aperture Size

    Graphics Aperture Size 64 MB Display Graphics Aperture Size is 64MB. (Default Value) 32 MB Display Graphics Aperture Size is 32MB. 16 MB Display Graphics Aperture Size is 16MB. 4 MB Display Graphics Aperture Size is 4MB. 8 MB Display Graphics Aperture Size is 8MB. 128 MB Display Graphics Aperture Size is 128MB.
  • Page 67: Power Management Setup

    6CMC7/ 6CMC7R Motherboard Power Management Setup AMIBIOS SETUP – POWER MANAGEMENT SETUP ( C ) 1999 American Megatrends, Inc. All Rights Reserved ACPI Sleep Type USB KB/MS Wakeup From S3 HDD Power Down Suspend Mode K/B & PS/2 Mouse Access FDC/LPT/COM Ports Access Pri.
  • Page 68: Suspend Mode

    Suspend Mode Disabled Disabled Suspend Time Out Function. (Default Value) Enabled Suspend Time Out after 1min. Enabled Suspend T ime Out after 2min. Enabled Suspend Time Out after 4min. Enabled Suspend Time Out after 8min. Enabled Suspend Time Out after 10min. Enabled Suspend Time Out after 20min.
  • Page 69 6CMC7/ 6CMC7R Motherboard Ignore Ignore Secondary slave IDE Access. (Default Value)
  • Page 70 PIRQ[A] IRQ Active Monitor Monitor PIRQ[A] IRQ Active. Ignore Ignore PIRQ[A] IRQ Active. (Default Value) PIRQ[B] IRQ Active Monitor Monitor PIRQ[B] IRQ Active. Ignore Ignore PIRQ[B] IRQ Active. (Default Value) PIRQ[C] IRQ Active Monitor Monitor PIRQ[C] IRQ Active. Ignore Ignore PIRQ[C] IRQ Active. (Default Value) PIRQ[D] IRQ Active Monitor Monitor PIRQ[D] IRQ Active.
  • Page 71: Resume By Alarm

    6CMC7/ 6CMC7R Motherboard PME Event Wake Up Disabled Disable PME Event Wake Up. Enabled Enabled PME Event Wake Up. (Default Value) Resume by Alarm You can set “Resume by Alarm” item to enabled and key in date/time to power on system. Disabled Disable this function.
  • Page 72: Pnp/Pci Configuration

    PNP/PCI Configuration AMIBIOS SETUP – PNP / PCI CONFIGURATION ( C ) 1999 American Megatrends, Inc. All Rights Reserved PNP OS Installed Reset Configuration Data VGA Boot From PCI VGA Palette Snoop DMA-0 DMA-1 DMA-3 DMA-5 DMA-6 DMA-7 IRQ-3 IRQ-4 IRQ-5 IRQ-7 IRQ-9...
  • Page 73 6CMC7/ 6CMC7R Motherboard DMA -( 0,1,3,5,6,7 ) ISA/ EISA The resource is used by Legacy ISA device. The resource is used by PnP device. IRQ -( 3,4,5,7,9, 10,11), assigned to ( “ISA / EISA” or “PCI/PnP” ) ISA/ EISA The resource is used by Legacy ISA device. PCI / PnP The resource is used by PCI/ PnP device.
  • Page 74: Load Bios Defaults

    Load BIOS Defaults AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.21 ( C ) 1999 American Megatrends, Inc. All Rights Reserved STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION Load BIOS Defaults (Y/N)? LOAD BIOS DEFAULTS LOAD SETUP DEFAULTS ESC : Quit : Select Item F6 : Load BIOS Defaults...
  • Page 75: Load Setup Defaults

    6CMC7/ 6CMC7R Motherboard Load Setup Defaults AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.21 ( C ) 1999 American Megatrends, Inc. All Rights Reserved STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION Load Setup Defaults (Y/N)? LOAD BIOS DEFAULTS LOAD SETUP DEFAULTS ESC : Quit : Select Item...
  • Page 76: Integrated Peripherals

    Integrated Peripherals AMIBIOS SETUP – INTEGRATED PERIPHERALS ( C ) 1999 American Megatrends, Inc. All Rights Reserved On-Chip PCI IDE AC97 Audio AC97 Modem OnBoard FDC Controller OnBoard Serial Port A OnBoard Serial Port B Serial Port B Mode IR Duplex Mode OnBoard Parallel Port Parallel Port Mode Parallel Port IRQ...
  • Page 77: Onboard Fdc Controller

    6CMC7/ 6CMC7R Motherboard OnBoard FDC Controller Auto Set OnBoard FDC Controller is Auto. Disabled Disabled OnBoard FDC Controller. Enabled Enabled OnBoard FDC Controller. (Default Value) On Board Serial Port A Auto BIOS will automatically setup the port A address. (Default Value) 3F8/COM1 Enable on Board Serial port A and address is 3F8.
  • Page 78 BIOS Setup Disabled Disable On Board LPT port.
  • Page 79: Parallel Port Mode

    6CMC7/ 6CMC7R Motherboard Parallel Port Mode Using Parallel port as Enhanced Parallel Port. Using Parallel port as Extended Capabilities Port. (Default Value) Normal Normal Operation. Parallel Port IRQ Set Parallel Port IRQ is 7. Set Parallel Port IRQ is 5. Auto Set Parallel Port IRQ is Auto.
  • Page 80 BIOS Setup...
  • Page 81 6CMC7/ 6CMC7R Motherboard Specific Key for Power On Disable this function. (Default Value) Password Enter from 1 to 5 characters to set the Keyboard Power On Password . Mouse Power-on function Disabled Disabled Mouse Power on . (Default Value) Enabled Enabled Mouse Power on .
  • Page 82: Hardware Monitor Setup

    Hardware Monitor Setup AMIBIOS SETUP – HARDWARE MONITOR SETUP ( C ) 1999 American Megatrends, Inc. All Rights Reserved ACPI Shut Down Temp. CPU Temp. Alarm CPU Fan Fail Alarm Power Fan Fail Alarm System Fan Fail Alarm Reset Case Open Status Case Status Current CPU Temp.
  • Page 83: Current System Temp

    6CMC7/ 6CMC7R Motherboard CPU Temp. Alarm 65 C / 149 F Monitor CPU Temp. at 65 C / 149 F. 70 C / 158 F Monitor CPU Temp. at 70 C / 158 F. (Default Value) 75 C / 167 F Monitor CPU Temp.
  • Page 84 BIOS Setup...
  • Page 85: Supervisor / User Password

    6CMC7/ 6CMC7R Motherboard Supervisor / User Password When you select this function, the following message will appear at the center of the screen to assist you in creating a password. AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.21 ( C ) 1999 American Megatrends, Inc. All Rights Reserved STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP...
  • Page 86: Ide Hdd Auto Detection

    IDE HDD AUTO Detection AMIBIOS SETUP – STANDARD CMOS SETUP ( C ) 1999 American Megatrends, Inc. All Rights Reserved Date (mm/dd/yyyy) : Fri Mar. 25, 2000 Time (hh/mm/ss) : 10:36:24 TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE Pri Master : Auto Pri Slave : Auto Sec Master: Auto Sec Slave : Auto...
  • Page 87: Save & Exit Setup

    6CMC7/ 6CMC7R Motherboard Save & Exit Setup AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.21 ( C ) 1999 American Megatrends, Inc. All Rights Reserved STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP SAVE to CMOS and EXIT(Y/N)? Y PNP/PCI CONFIGURATION LOAD BIOS DEFAULTS LOAD SETUP DEFAULTS...
  • Page 88: Exit Without Saving

    Exit Without Saving AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.21 ( C ) 1999 American Megatrends, Inc. All Rights Reserved STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP Quit without saving(Y/N)? N PNP/PCI CONFIGURATION LOAD BIOS DEFAULTS LOAD SETUP DEFAULTS ESC : Quit : Select Item F6 : Load BIOS Defaults...
  • Page 89: Appendix

    6CMC7/ 6CMC7R Motherboard Appendix Appendix A: Intel 8255x Network Driver Installation Insert the support CD that came with your motherboard into your CD-ROM drive or double-click the CD drive icon in My Computer to bring up the setup screen. 1.Click here. 3.Click”Setup Information”...
  • Page 90 C:\utility\ AWDFlash or AMIFlash <filename of the BIOS binary file intended for flashing> ü Once the process is finished, reboot the system MNote: Please download the newest BIOS from our website (www.gigabyte.com.tw) or contact your local dealer for the file.
  • Page 91 6CMC7/ 6CMC7R Motherboard Appendix C: Issues To Beware Of When Installing AMR PCI Slot Figure A: Inverse AMR Card (Only for 6CMC7) Figure B: Non inverse AMR Card (Only for 6CMC7R)
  • Page 92 Appendix D: Acronyms Acor. Meaning ACPI Advanced Configuration and Power Interface POST Power-On Self Test Local Area Network Extended Capabilities Port Advanced Power Management Direct Memory Access Megahertz ESCD Extended System Configuration Data Central Processing Unit Symmetric Multi-Processing Universal Serial Bus Operating System Error Checking and Correcting Integrated Dual Channel Enhanced...
  • Page 93 6CMC7/ 6CMC7R Motherboard IOAPIC Input Output Advanced Programmable Input Controller DIMM Dual Inline Memory Module DRAM Dynamic Random Access Memory PCI A.G.P. Controller Audio Modem Riser Acor. Meaning Peripheral Component Interconnect RIMM Rambus in-line Memory Module Dual Retention Mechanism Industry Standard Architecture Memory Translator Hub CRIMM Continuity RIMM...
