Summary of Contents for PROEL LITE Series

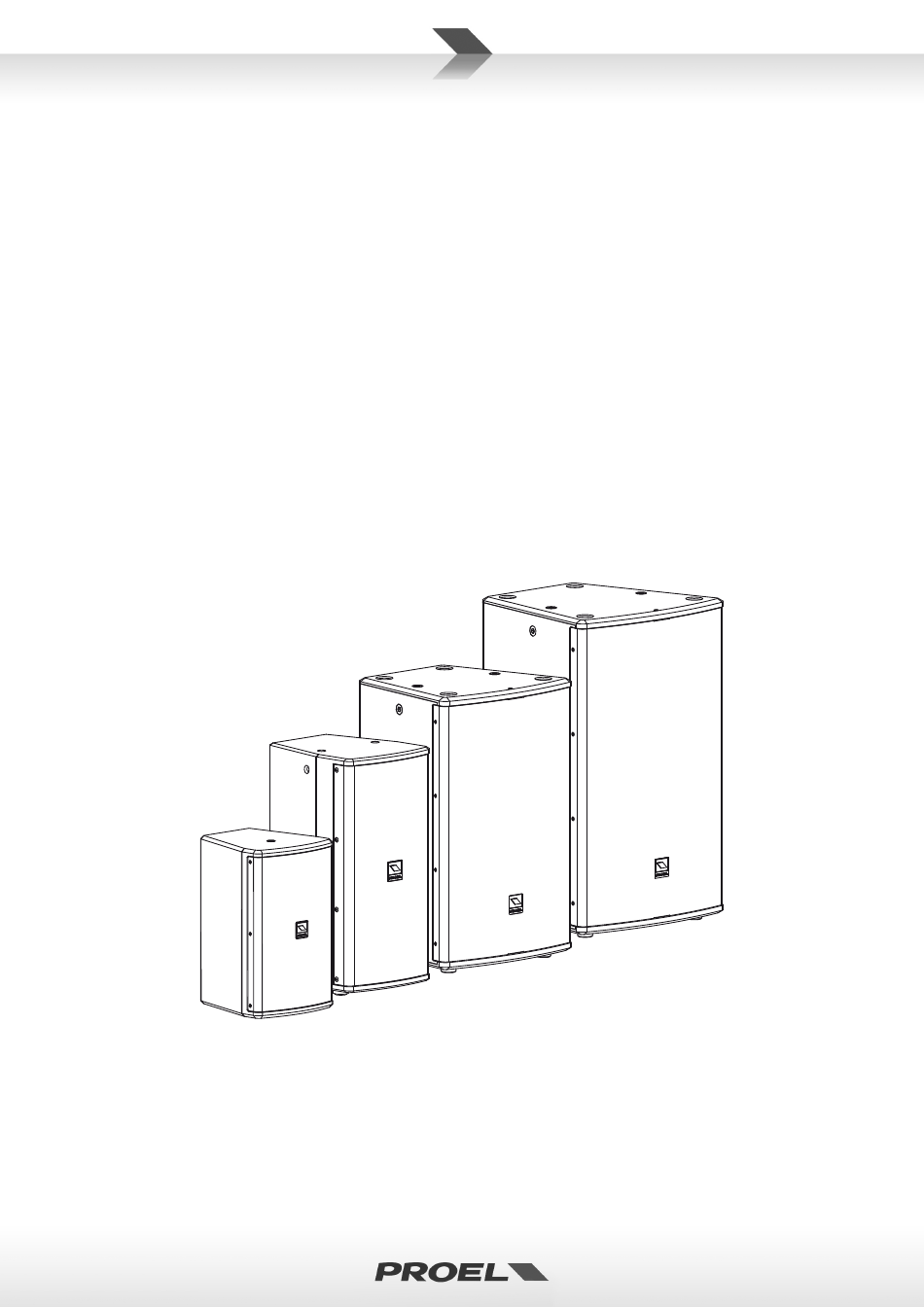

- Page 1 LITE series LT6P - LT8P - LT10P - LT12P passive loudspeakers USER MANUAL MANUALE D'USO...
-
Page 2: Table Of Contents
PROEL. PROEL reserves the right to make any aesthetic, functional or design modification to any of its products without any prior notice. -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS SPECIFICHE TECNICHE MODEL LT6P LT8P LT10P LT12P System type 2-way vented enclosure 2-way vented enclosure 2-way vented enclosure 2-way vented enclosure High Frequency Device 1’’ neodymium tweeter 1’’ compression driver 1" VC 1’’ compression driver 1" VC 1’’ compression driver 1.35" VC Low Frequency Device 6.5”... -
Page 4: Dimensions And Flying Points
DIMENSIONS AND FLYING POINTS DIMENSIONI E PUNTI DI SOSPENSIONE 22.3 cm 20.4 cm 8.78" 8.03" M6 Flying Points M4 Flying points 26.0 cm 22.0 cm LT6 Pole adapter (supplied) 10.2" 8.66" M6 Flying Points Dual Angle Mounting Pole M8 Flying points 31.0 cm 34.0 cm 12.2"... -
Page 5: Accessories
ACCESSORIES ACCESSORI KP210 KP210 Adjustable speaker pole for speaker-subwoofer separation Supporto distanziatore cassa-subwoofer regolabile in with terminal pieces Ø 35 mm. Supplied with a bolt acciaio con terminali Ø 35mm. Dotato di meccanismo locking mechanism incorporating a steel pin for extra di chiusura a vite con pin di sicurezza in acciaio. -
Page 6: Input Panel (Fig.1)
HPC610BK HPC610FRS this is a short extraction of the wide assortment of cables available from questo è un breve estratto del vasto assortimento di cavi disponibile da PROEL, PROEL, please visit our website at www.proel.com vi preghiamo di visitare il nostro sito web all'indirizzo www.proel.com... -
Page 7: Configurations (Fig.3)
CONFIGURATIONS (FIG.3) CONFIGURAZIONI (FIG.3) LT passive BASIC STEREO sound system LEFT RIGHT single speaker single speaker 8 ohm load 8 ohm load LT passive DOUBLE PARALLEL STEREO sound system LEFT RIGHT paralled speakers paralled speakers 4 ohm load 4 ohm load SPARE PART LIST PARTI DI RICAMBIO CODE... -
Page 8: Safety And Precautions
• Sometimes it helps to plug all audio equipment into the same AC circuit so they share a common ground. CE CONFORMITY • Proel products comply with directive 2004/108/EC (EMC), as stated in EN 55103-1 and EN 55103-2 standards and with directive 2006/95/CE (LVD), as stated in EN 60065 standard. -
Page 9: Warranty And Products Return
This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse. Proel S.p.A. will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired. Proel S.p.A. is not responsible for any "direct damage"... -
Page 10: General Information
Thank you for having chosen a PROEL product. The LITE Series by PROEL is an extended range of active and passive speaker systems with plywood cabinet offering the renowned PROEL sound and a high-level performance in a reliable and affordable package. For the construction of the cabinets we have used plywood, a very lightweight and durable material that makes moving and installing these speakers very quick and easy. -
Page 12: Avvertenze Per La Sicurezza
AC, in modo che tutti gli apparati condividano la stessa presa di terra. CONFORMITÀ CE • I Prodotti Proel sono conformi alla direttiva 2004/108/EC (EMC), secondo gli standard EN 55103-1 ed EN 55103-2 ed alla direttiva 2006/95/CE (LVD), secondo lo standard EN 60065. -
Page 13: Garanzie E Resi
Sono esclusi dalla garanzia difetti causati da uso improprio o manomissione. Proel SpA constata tramite verifica sui resi la difettosità... -
Page 14: Informazioni Generali
Grazie per aver scelto un prodotto PROEL. La nuova serie LITE di PROEL è un’ampia gamma di diffusori attivi e passivi in legno multistrato in grado di offrire la qualità del suono PROEL e performances elevate in prodotti affidabili e convenienti. Per la realizzazione dei cabinets è... - Page 16 PROEL S.p.A. (World Headquarter) Via alla Ruenia 37/43 64027 Sant’Omero (TE) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.proel.com REV. 45/17 CODE 96MAN0091...
