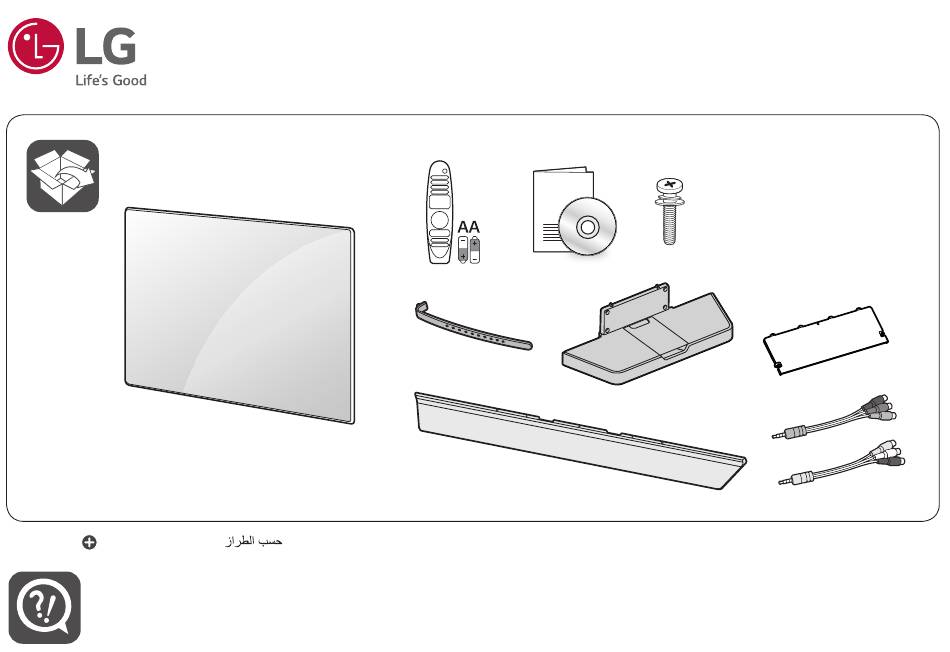

- Page 1 OLED TV 55/65ET961H (M4 x L20) Head : Depending on model / / В зависимост от модела / Závisí na modelu / Selon le modèle / Abhängig vom Modell / Ανάλογα με το μοντέλο / Típusfüggő / In base al modello / Zależnie od modelu / Dependendo do modelo / În funcţie de model / В зависимости от модели / U zavisnosti od mod-...
- Page 5 HDMI IN/ARC...
- Page 6 Satellite IN...
- Page 7 H/P OUT...
- Page 8 AV IN COMPONENT IN VIDEO L/MONO AUDIO R AUDIO VIDEO...
- Page 10 90° 90° 55ET961H0ZA 1228 46.9 23.0 18.9 65ET961H0ZA 1449 46.9 33.9 25.2...
- Page 11 OWNER’S MANUAL Safety and Reference OLED TV Please read this manual carefully before operating your set and retain it for future reference. *SAC35974008* www.lg.com Copyright © 2019 LG Electronics Inc. All Rights Reserved. (1908-REV00)
- Page 12 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
- Page 13 • Use only an authorized attachments / accessories approved by product and/or its panel. Otherwise, this may result in electric LG Electronics. Otherwise, this may result in fire, electric shock, shock or product damage. malfunction, or product damage.
-
Page 14: Separate Purchase
Preparing Separate Purchase Separate purchase items can be changed or modified for quality • If the TV is turned on for the first time after it was shipped from the improvement without any notification. Contact your dealer to buy these factory, initialization of the TV may take a few minutes. -
Page 15: Lifting And Moving The Tv
Lifting and moving the TV • Avoid touching the screen at all times, as this may result in damage to the screen. • Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the Please note the following advice to prevent the TV from being scratched TV may occur. -
Page 16: Securing The Tv To A Wall
LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please... -
Page 17: Satellite Dish
Connections • Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. • For more information of screws and wall mount bracket, refer to the Separate purchase. Connect various external devices to the TV and switch input modes to •... -
Page 18: Other Connections
Other connections External Devices Available external devices are: Blu-ray player, HD receivers, DVD players, Connect your TV to external devices. For the best picture and audio VCRs, audio systems, USB storage devices, PC, gaming devices, and quality, connect the external device and the TV with the HDMI cable. other external devices. -
Page 19: External Speakers
External Speakers Method of volume control port • Cable Spec. (Depending on model) Each Up / Down pin is pulled to 3.3 V with CPU GPIO. EXTERNAL / UP / DOWN CPU detects SPEAKER OUT transition from 3.3 V level for STEREO (8 ) volume control. -
Page 20: Using Button
Using Button Network Wired network connection You can simply operate the TV functions, using the button. This TV can be connected to a Pro:Centric server via the port. After making the physical connection, the TV needs to be set up for network communication. -
Page 21: Using Remote Control
Using Remote Control * To use the button, press and hold for more than 3 seconds. (POWER) Turns the TV on or off. (INPUT) Changes the input source. The descriptions in this manual are based on the buttons on the remote Number buttons Enters numbers. -
Page 22: Registering Magic Remote Control
Troubleshooting Registering Magic Remote Control How to register the Magic Remote Control The software version can be updated for improvement in performance. To use the Magic Remote, first pair it with your TV. Customer needs to ensure the compatibility of customer’s equipment 1 Put batteries into the Magic Remote and turn the TV on. -
Page 23: Abnormal Display
Abnormal display • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product. • This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (white, red, blue or green) at a size of 1 ppm on the panel. -
Page 24: Specifications
Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV DVB-T DVB-T2 PAL/SECAM B/G, D/K, I Television system DVB-C SECAM L DVB-S/S2 DVB-S/S2 DVB-C DVB-T/T2 VHF III: 174 ~ 230 MHz Channel coverage UHF IV: 470 ~ 606 MHz 46 ~ 862 MHz (Band) 950 ~ 2,150 MHz 46 ~ 890 MHz... -
Page 25: Operating Temperature
Wireless module (LGSBWAC92) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 18 dBm 5,150 to 5,725 MHz 18 dBm 5,725 to 5,850 MHz (Not for EU) 12 dBm Bluetooth Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 8 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table. - Page 26 HDMI-DTV supported mode HDMI-PC supported Mode • PC audio is not supported. Horizontal Vertical Resolution • Use HDMI IN 1 for PC mode. (Depending on model) Frequency (kHz) Frequency (Hz) 31.46 59.94 Horizontal Vertical 640 x 480p Resolution 31.5 Frequency (kHz) Frequency (Hz) 31.47 59.94...
-
Page 27: Supported Photo Formats
Component port connecting Supported Audio Formats information File Item Info Format Component ports on the TV Bit rate 32 Kbps - 320 Kbps Sample freq. 16 kHz - 48 kHz .mp3 Support MPEG1, MPEG2 Video output ports on DVD player Channels mono, stereo Bit rate Sample freq. -
Page 28: Supported Video Formats
• ULTRA HD Video: 3840 x 2160, 4096 x 2160 • Some HEVC encoded ULTRA HD videos other than the content Extension Codec officially provided by LG Electronics may not be played. VC-1 Advanced Profile (except for • Some codecs can be supported after a software upgrade. Video .asf... -
Page 29: Open Source Software Notice Information
The terms HDMI and HDMI High-Definition Multimedia Interface, LG Electronics will also provide open source code to you on CD-ROM and the HDMI Logo are trademarks or registered trademarks of for a charge covering the cost of performing such distribution (such HDMI Licensing Administrator, Inc. - Page 30 - [Picture] [Picture Mode Settings] [OLED LIGHT] Adjust static image on the screen for a long time. LG OLED TVs incorporate to lower value dedicated functions that protect the screen from possible image - [Picture] [Additional Settings] [OLED Panel Settings] retention.
- Page 31 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model Serial No.
- Page 32 OWNER’S MANUAL RS-232C OLED TV Please read this manual carefully before operating your set and retain it for future reference. www.lg.com...
- Page 33 IR CODES • This feature is not available for all models. Code (Hexa) Function Note Remote control Button (POWER) (Power On/Off) (INPUT) Remote control Button Number Key 1-9 11-19 Remote control Button Remote control Button (Screen Remote) Remote control Button (Voice recognition) Number Key 0 Remote control Button...
- Page 34 Code (Hexa) Function Note Remote control Button (RED) Remote control Button (GREEN) Remote control Button (YELLOW) Remote control Button (BLUE) Remote control Button Remote control Button Remote control Button Remote control Button...
-
Page 35: External Control Device Setup
EXTERNAL CONTROL DEVICE SETUP Phone jack Type (Depending on model) • You need to purchase the phone-jack to RS-232C cable required for RS-232C Setup the connection between the PC and the TV, which is specified in the manual. • Image shown may differ from your TV. * For other models, connect to the USB port. -
Page 36: Communication Parameters
RS-232C Configurations Command Reference List (Depending on model) 7-Wire Configurations Data (Standard RS-232C cable) Command1 Command2 (Hexadecimal) 1 Power 00 to 01 2 [Aspect Ratio] (See p. 6) 3 Screen Mute (See p. 7) 4 Volume Mute 00 to 01 5 Volume 00 to 64 Control... -
Page 37: Transmission / Receiving Protocol
Transmission / Receiving Protocol 1 Power (Command: k a) ►To control Power On/Off of the set. (Depending on Model) Transmission Transmission (k)(a)( )([Set ID])( )([Data])(Cr) (Command1)(Command2)( )([Set ID])( )([Data])(Cr) [Data] 00 : [Off] (Command1) : First command to control the TV. (j, k, m or x) [Data] 01 : [On] (Command2) : Second command to control the TV. - Page 38 3 Screen Mute (Command: k d) 6 [Contrast] (Command: k g) ►To select screen mute on/off. ►To adjust screen contrast. You can also adjust contrast in the picture settings. Transmission Transmission (k)(d)( )([Set ID])( )([Data])(Cr) (k)(g)( )([Set ID])( )([Data])(Cr) [Data] 00 : Screen mute off (Picture on) / Video mute off Data Min : 00 to Max : 64 [Data] 01 : Screen mute on (Picture off) * Refer to "Real data mapping".
