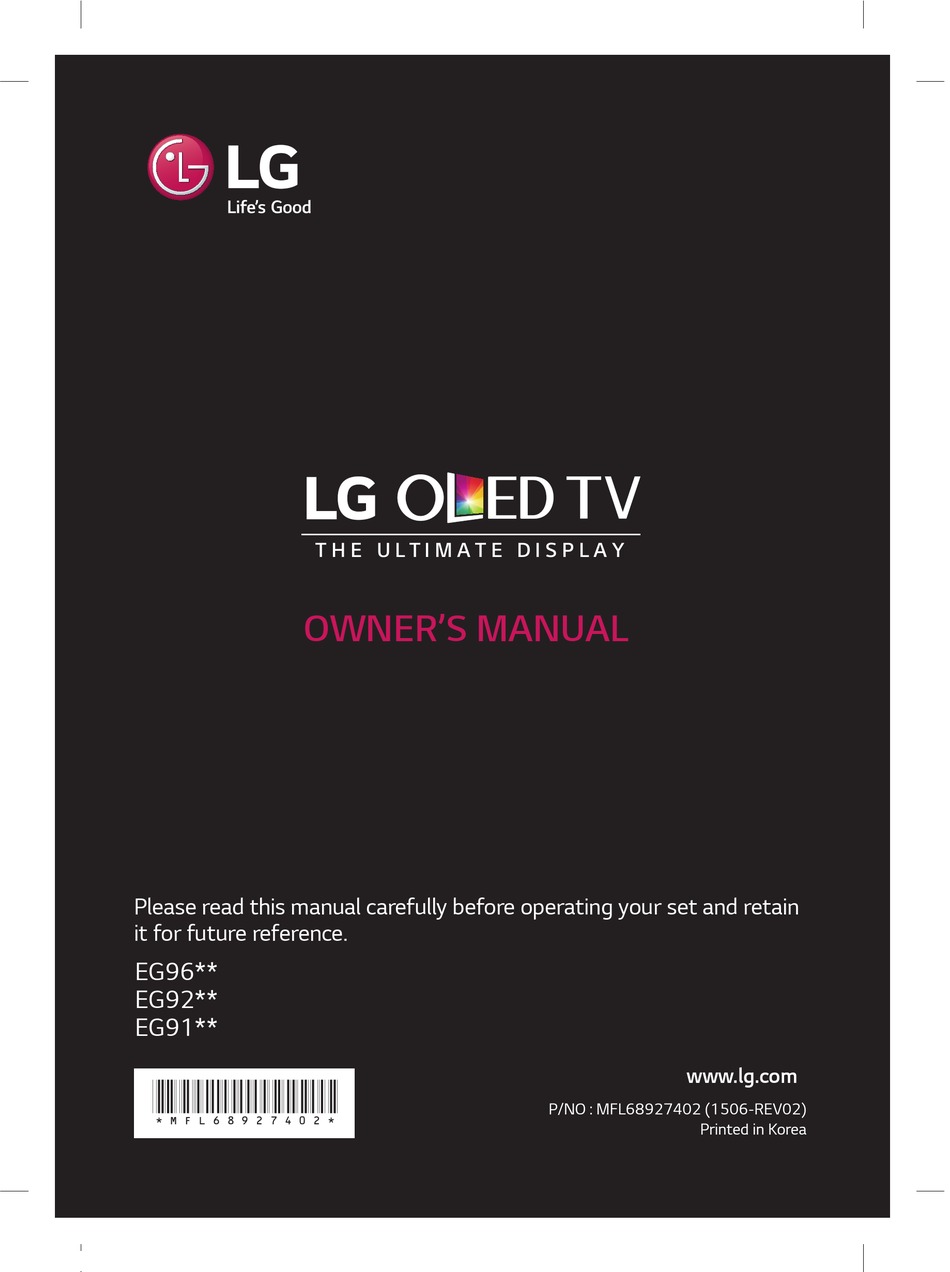

- Page 1 T H E U L T I M A T E D I S P L A Y OWNER’S MANUAL Please read this manual carefully before operating your set and retain it for future reference. EG96** EG92** EG91** www.lg.com *MFL68927402* P/NO : MFL68927402 (1506-REV02) Printed in Korea...
- Page 2 India region only. (Below sentence is not applicable for above 1920 X 1080 resolution TV models.) ATTENTION: This product is qualified for the BEE Star rating in the ‘Home’ Mode. The Objectives of Star Labeling Program is designed to promote energy efficient products and practices.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS MAGIC REMOTE FUNCTIONS LICENSES - Registering magic remote - How to use magic remote OPEN SOURCE SOFTWARE NOTICE - Precautions to take when using the magic INFORMATION remote USING THE USER GUIDE SAFETY INSTRUCTIONS - Viewing 3D Imaging (Only 3D models) MAINTENANCE INSTALLATION PROCEDURE... -
Page 4: Licenses
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are avail- able for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Please read these safety precautions carefully before using the product. Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except WARNING for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. - Page 6 SAFETY INSTRUCTIONS Do not plug too many electrical devices into a single Do not insert any metal objects/conductors (like multiple electrical outlet. Otherwise, this may result a metal chopstick/cutlery/screwdriver) between in fire due to over-heating. power cable plug and input Wall Socket while it is connected to the input terminal on the wall.
- Page 7 Contact the service centre for check, calibration or repair. Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation. If any of the following occur, unplug the product immediately and contact your local service centre.
- Page 8 SAFETY INSTRUCTIONS CAUTION When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric Install the product where no radio wave occurs. shock hazard. There should be enough distance between an We recommend that you maintain a distance of at outside antenna and power lines to keep the former least 2 to 7 times the diagonal screen size when...
- Page 9 SAFETY INSTRUCTIONS Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting.
- Page 10 SAFETY INSTRUCTIONS As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH. If the product feels cold to the touch, there may be a small “flicker”...
-
Page 11: Viewing 3D Imaging (Only 3D Models)
SAFETY INSTRUCTIONS Viewing 3D Imaging (Only 3D models) WARNING Displaying a still image (e.g., broadcasting channel Viewing environment logo, on-screen menu, scene from a video game y Viewing Time or computer screen) for a prolonged time may - When watching 3D contents, take 5 - 15 cause damage to the screen, resulting in retention minute breaks every hour. - Page 12 SAFETY INSTRUCTIONS Cautions when using the 3D glasses CAUTION y Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly. Viewing environment y Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
-
Page 13: Installation Procedure
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING NOTE y Image shown may differ from your TV. y Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. y The available menus and options may differ from the input source or product model that you are using. y New features may be added to this TV in the future. - Page 14 ASSEMBLING AND PREPARING Magic remote, Owner’s manual Cinema 3D glasses Cable Holder The number of 3D glasses Batteries (AA) (See p. 26) may differ depending on (See p. 34) the model or country. Component gender Composite gender Stand Assy Stand Assy cable cable (Stand Base/Stand...
-
Page 15: Separate Purchase
Contact your dealer to buy these items. These devices only work with certain models. AG-F*** AN-MR600 AN-VC550 AG-F***DP Cinema 3D Glasses Magic Remote Smart Camera Dual Play Glasses LG Audio Device Compatibility EG91**, EG92**, EG96** AG-F*** • Cinema 3D Glasses AN-MR600 • Magic Remote AN-VC550 •... -
Page 16: Parts And Buttons
A type : EG91** B type : EG92** Screen Screen Speakers Speakers Joystick Button Joystick Button Remote Control Sensor Remote Control Sensor Standby Light Standby Light C type : EG96** Screen Speakers Joystick Button Remote Control Sensor and Intelligent Sensor LG Logo Light... -
Page 17: Using The Joystick Button
Joystick Button - This button is located below the TV screen. NOTE y You can set the LG Logo Light or Standby Light to on or off by selecting GENERAL in the main menus. Using the joystick button You can operate the TV by pressing the button or moving the joystick left, right, up, or down. -
Page 18: Lifting And Moving The Tv
ASSEMBLING AND PREPARING Lifting and moving the TV Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. CAUTION y Avoid touching the screen at all times, as this may result in damage to the screen. -
Page 19: Setting Up The Tv
ASSEMBLING AND PREPARING Setting up the TV (Image shown may differ from your TV.) Attaching the stand Only 55EG91** Protective Package 4 EA M4 x L20 Stand cover When assembling the stand, lay the front screen Protective Package included in the product box on a table or product box and then place the TV screen face down on the Protective Package. - Page 20 ASSEMBLING AND PREPARING Only 55EG96**, 55EG92** Stand cover Protective Package Stand Cover When assembling the stand, lay the front screen Protective Package included in the product box on a table or product box and then place the TV screen face down on the Protective Package.
- Page 21 ASSEMBLING AND PREPARING Stand Cover 5 EA M4 x L20 Cover Holder CAUTION y Insert the Cover Holder of the Stand Cover into the holes until it clicks. Press the Stand Stand Cover gently so that the non-woven fabric Cover inside is attached tightly.
- Page 22 ASSEMBLING AND PREPARING Only 65EG96** Protective Package Stand Cover 8 EA When assembling the stand, lay the front screen M4 x L20 Protective Package included in the product box on a table or product box and then place the TV screen face down on the Protective Package.
- Page 23 ASSEMBLING AND PREPARING Stand Cover Cover Holder CAUTION y Insert the Cover Holder of the Stand Cover into the holes until it clicks. Press the Stand Cover gently so that the non-woven fabric inside is attached tightly. CAUTION y When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
-
Page 24: Mounting On A Table
ASSEMBLING AND PREPARING Mounting on a table WARNING (Image shown may differ from your TV.) y If a television is not positioned in a Lift and tilt the TV into its upright position on a sufficiently stable location, it can be table. -
Page 25: Mounting On A Wall
When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. 10 cm Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. -
Page 26: Tidying Cables
If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. y Do not over tighten the screws as this may cause damage to the TV and void your warranty. -
Page 27: Making Connections
MAKING CONNECTIONS MAKING CONNECTIONS Antenna connection This section on MAKING CONNECTIONS mainly Connect the TV to a wall antenna socket with an RF uses diagrams for the EG96** models. cable (75 Ω). Connect various external devices to the TV and switch input modes to select an external device. -
Page 28: Hdmi Connection
MAKING CONNECTIONS HDMI connection (Only EG91**) Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown. (Only EG96**, EG92**) (*Not Provided) (*Not HDMI Provided) DVD / Blu-Ray / PC / HD Cable Box / HD STB... -
Page 29: Dvi To Hdmi Connection
MAKING CONNECTIONS DVI to HDMI connection (Only EG96**, EG92**) Picture HDMI ULTRA HD Transmits the digital video signal from an external device to the TV. Connect the external device Deep Colour : and the TV with the DVI-HDMI cable as shown. To y On - Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0) y Off - Support 4K @ 50/60 Hz (4:2:0) transmit an audio signal, connect an audio cable. -
Page 30: Component Connection
MAKING CONNECTIONS Component connection (Only EG91**) Transmits analogue video and audio signals from an external device to the TV. Connect the external device and the TV with a component gender cable as shown. ( Audio in) COMPONENT VIDEO AUDIO (*Not Provided) YELLOW GREEN... -
Page 31: Composite Connection
MAKING CONNECTIONS Composite connection Audio connection Transmits analogue video and audio signals from You may use an external audio system instead of an external device to the TV. Connect the external the built-in speaker. device and the TV with a composite gender cable as shown. -
Page 32: Headphone Connection
MAKING CONNECTIONS Headphone connection USB connection Transmits the headphone signal from the TV to an Connect a USB storage device such as a USB flash external device. Connect the external device and the memory, external hard drive or a USB memory card TV with the headphone as shown. - Page 33 MAKING CONNECTIONS (Only EG91**) (*Not Provided) (*Not Provided) (*Not Provided) NOTE y Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it to the USB IN port on the TV directly. y Connect the external power source if your USB is needed.
-
Page 34: Magic Remote Functions
MAGIC REMOTE FUNCTIONS MAGIC REMOTE FUNCTIONS When the message “Magic Remote battery is low. Change the battery. ” is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching ends to the label inside the compartment, and close the battery cover. - Page 35 MAGIC REMOTE FUNCTIONS pqrs wxyz LIST INFO Wheel (OK) Press the center of the Wheel button to select a menu. You can change programmes by using the wheel button. Navigation buttons (up/down/left/right) Press the up, down, left or right button to scroll the menu. If you press buttons while the pointer is in use, the pointer will EXIT...
-
Page 36: Registering Magic Remote
MAGIC REMOTE FUNCTIONS How to use magic remote Registering magic remote y Shake the Magic Remote How to register the magic remote BACK HOME slightly to the right and left or (HOME), (INPUT), press To use the Magic Remote, first pair it buttons to make the with your TV. -
Page 37: Using The User Guide
USING THE USER GUIDE / MAINTENANCE MAINTENANCE USING THE USER GUIDE User Guide allows you to more easily access the Cleaning your TV detailed TV information. Clean your TV regularly to keep the best performance and to extend the product lifespan. (HOME) button to access the Home 1 Press the menu. -
Page 38: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Problem Solution Cannot control the TV with y Check the remote control sensor on the product and try again. the remote control. y Check if there is any obstacle between the product and the remote control. y Check if the batteries are still working and properly installed No image display and no y Check if the product is turned on. -
Page 39: Environmental Information
5. To locate a nearest collection centre or call for pick-up (limited area only) for disposal of this appliance, please contact Toll Free No. 1800-180-9999 for details. All collection centre and pick up facilities are done by third parties whith LG... -
Page 40: Specifications
SPECIFICATIONS SPECIFICATIONS (Only EG91**, EG92**, EG96**) Wireless module(LGSBW41) Specifications Wireless LAN Bluetooth Standard IEEE 802.11a/b/g/n Standard Bluetooth Version 4.0 2400 to 2483.5 MHz Frequency Frequency 5150 to 5250 MHz 2400 to 2483.5 MHz Range Range 5725 to 5850 MHz(for Non EU) 802.11a: 13 dBm 802.11b: 15 dBm Output Power... - Page 41 SPECIFICATIONS Product specifications may be changed without prior notice due to upgrade of product functions. For the power supply and power consumption, refer to the label attached to the product. Thickness(T) Depth(D) EG96** MODELS 55EG960T-TA 65EG960T-TA 55EG960Y-TA 65EG960Y-TA With stand (mm) 1226 x 760 x 213 1447 x 884 x 237 (W x H x D)
- Page 42 SPECIFICATIONS Digital TV Analogue TV (Depending on country) (Depending on country) PAL B/B, PAL B/G, PAL D/K, PAL-I Television System DVB-T(*DVB-T/T2) SECAM B/G, SECAM D/K NTSC-M Programme Coverage VHF, UHF VHF, UHF, CATV Maximum number of storable DVB-T/T2 & Analogue TV : 1,500 programmes External Antenna Impedance 75 Ω...
- Page 44 Record the model number and serial number of the TV. Refer to the label on the back cover and (Only DTV) quote this information to your dealer when requiring any service. MODEL SERIAL...
