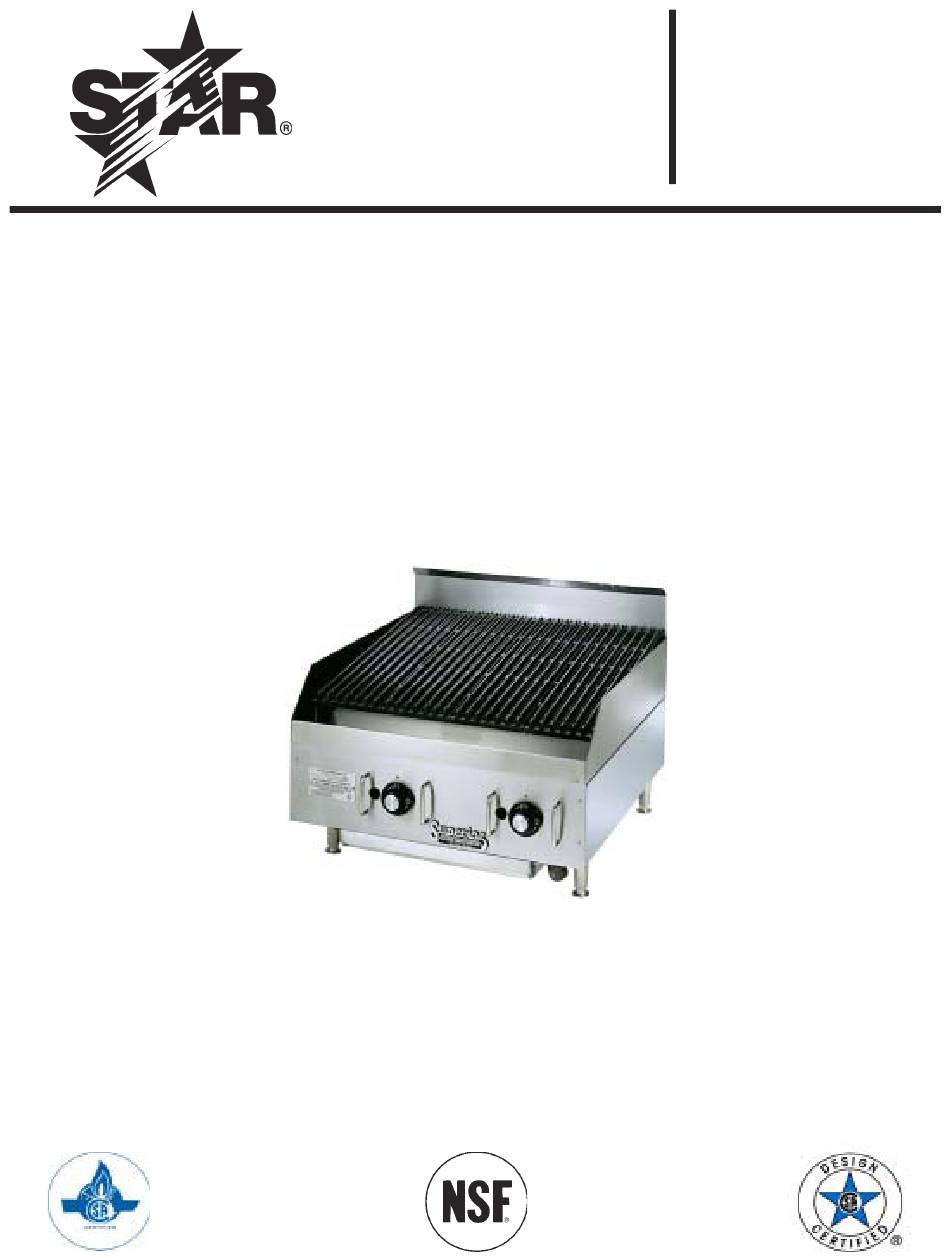

- Page 1 Star Manufacturing Installation International Inc. Operating 10 Sunnen Drive St. Louis, MO 63143 Instructions Phone: (314) 781-2777 2M-Z3289 Rev. A 2/26/03 Fax: (314) 781-3636 STAR-MAX GAS CHARBROILER MODELS 6015CBSB, 6024CBSB, 6036CBSB, 6124RCBSB, and 6136RCBSB 6024CBSB...
-
Page 2: Safety Symbol
SAFETY SYMBOL This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: General Installation Data
GENERAL INSTALLATION DATA FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR CAUTION OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. KEEP THE This equipment is designed and sold for commercial APPLIANCE AREA CLEAR AND FREE FROM use only by personnel trained and experienced in its COMBUSTIBLES. - Page 4 GAS PIPING CHECKING FOR GAS LEAKS Gas piping shall be of such size and so installed as to Soap and water solution or other material acceptable provide a supply of gas sufficient to meet the full gas for the purpose, shall be used in locating gas leakage. input of the appliance.
-
Page 5: Exhaust Canopy
EXHAUST CANOPY DO NOT PUT MORE THAN 5 LBS. LAVA ROCK PER EACH BURNER Open hearth broilers inherently create a good deal of heat and smoke and should be installed under an efficient exhaust hood with flame proof filters. A ADJUSTING HEAT PATTERN vertical distance of not less than 48"... -
Page 7: Parts List
6015CBSB/6024CBSB/6036CBSB 2R-8229 2/4/6 SHIELD-KNOB 6015CBSB/6024CBSB/6036CBSB IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
