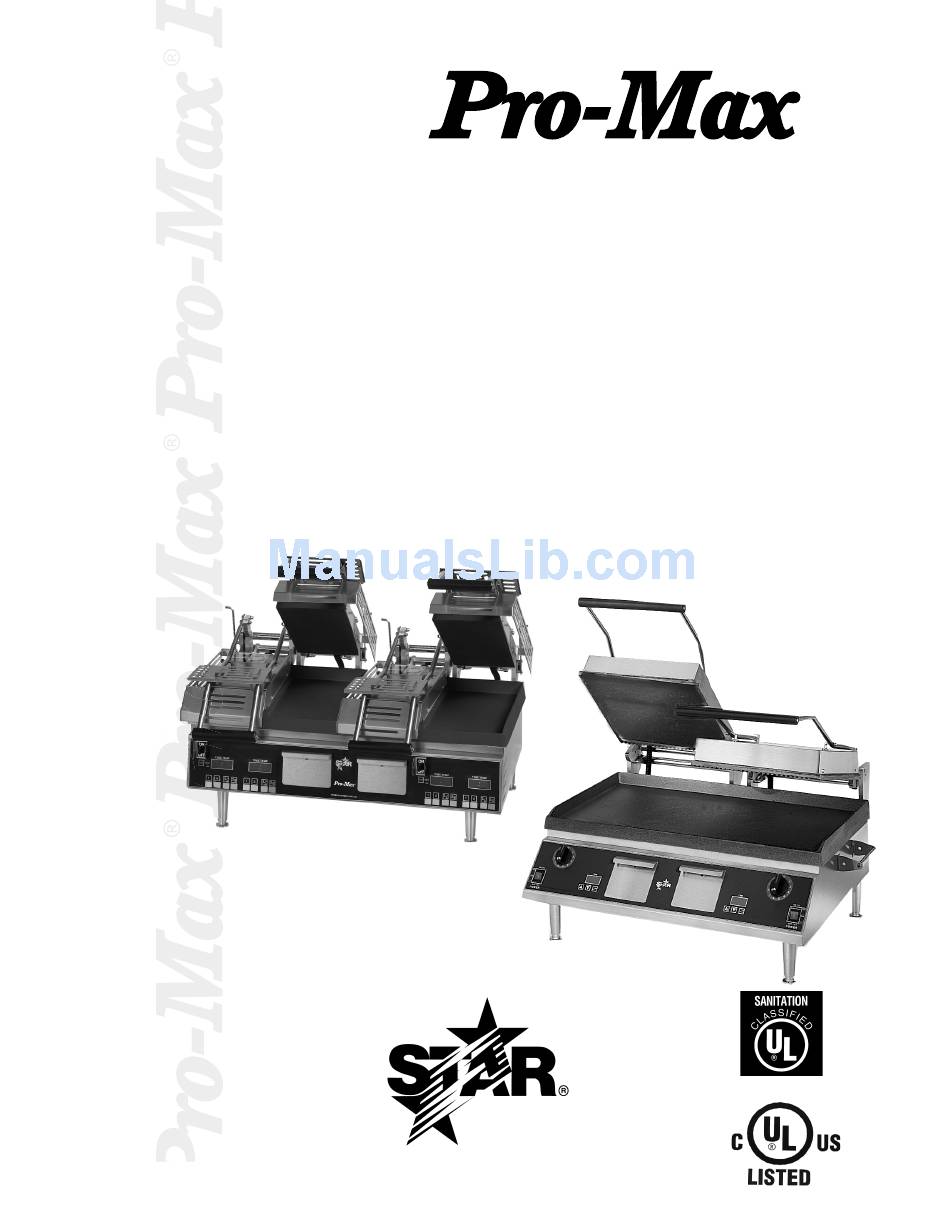

- Page 1 ® TWO-SIDED GRILLS MODEL CG28, GR28 SERIES Installation and Operation Instructions 2M-Z9667 Rev. C 8/01/07 GR28SPTI GR28IT...
-
Page 2: Maintenance And Repairs
Due to periodic changes in designs, methods, procedures, policies and regulations, the specifi cations contained in this sheet are subject to change without notice. While Star Manufacturing exercises good faith efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached as a result of using the specifi... -
Page 3: Product Identification
PRODUCT IDENTIFICATION Star Manufacturing International, Inc. Two Sided Grills Models: GR28I-240V-Smooth Iron Platens without Timers GR28I-240VC-Smooth Iron Platens without Timers, Canadian GR28IT-240V-Smooth Iron Platens with 2 Timers GR28IT-240VC-Smooth Iron Platens with 2 Timers, Canadian GR28ITGS-240V-Iron Platens, 1 Grooved & 1 Smooth Top, Smooth Bottom with 2 Timers GR28ITGS-240VC-Iron Platens, 1 Grooved &... -
Page 4: General Installation Data
General Installation Data CAUTION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions &... - Page 5 ELECTRICAL SPECIFICATIONS Model No. Volts Rated Wattage Amps NEMA Plug GR28I 7200 L6-30P GR28IT 7200 L6-30P GR28ITGS 7200 L6-30P GR28SPTI 7100 L6-30P CG28I 7200 L6-30P CG28IT 7200 L6-30P CG28IGT 7200 L6-30P CG28ITGT 7200 L6-30P CG28SPTI 7100 L6-30P Initial Start Up Level unit using the adjustable feet under the unit (approximately 1/2"...
-
Page 6: Manual Control Operation
MANUAL CONTROL OPERATION Setting The Temperature The thermostat control knob is used to set the temperature to your requirements. The maximum set point is 550°F (288°C), the minimum set point is 175°F (79°C). See Knob Settings. Setting The Timer (Timer Models Only) (9 MIN. -
Page 7: Electronic Control Operation
ELECTRONIC CONTROL OPERATION Preset Times And Temperatures If adjustments are required, please refer to the time or temperature programming section in this manual. °F/°C CONVERSION To change the temperature display from °F to °C or from °C to °F, hold the TEMP button while the unit is turned off. -
Page 8: Operation
NOTE: Temperature settings are done with the Left side buttons only. The time settings programmed on the left buttons will also be programmed onto the Right side. See the next section to make time changes to the Right side only. Each programming change must be saved by pressing the TEMP button! Right Side (Timer only): 1. -
Page 9: Monthly Lubrication/Inspection
Monthly Lubrication/Inspection Apply two (2) drops of non-toxic mineral or vegetable oil to counter balance shoulder rivets and plastic spacers. Check and clean brass rollers to make sure they are rolling and not sliding on the cam surfaces of the counterbalance. Check the bolts, screws and nuts, tighten if necessary. -
Page 10: Operation Troubleshooting
WARNING Do not use ice or cold water to clean the cooking surfaces when the unit is hot. The surfaces are cast aluminum or cast iron and may crack or deform under the shock of rapid temperature change. Operation Troubleshooting 1. - Page 11 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same.
- Page 15 SPTI MODELS ONLY Part of Item 26 SPTI This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE OR MAY VARY SLIGHTLY FROM ILLUSTRATION SHOWN.
-
Page 16: Parts List
RTD-PROBE - 48” LONG WIRE SPTI IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. -
Page 17: Manual Control
MANUAL CONTROL ELECTRONIC CONTROL This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE OR STAR MANUFACTURING INTERNATIONAL INC. - Page 18 PS-GR0225 SWITCH KIT 2I-05-07-0013 SWITCH BOOT IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 19 2J-Z2329 PILOT LIGHT 240V (NOT SHOWN) IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 20 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
