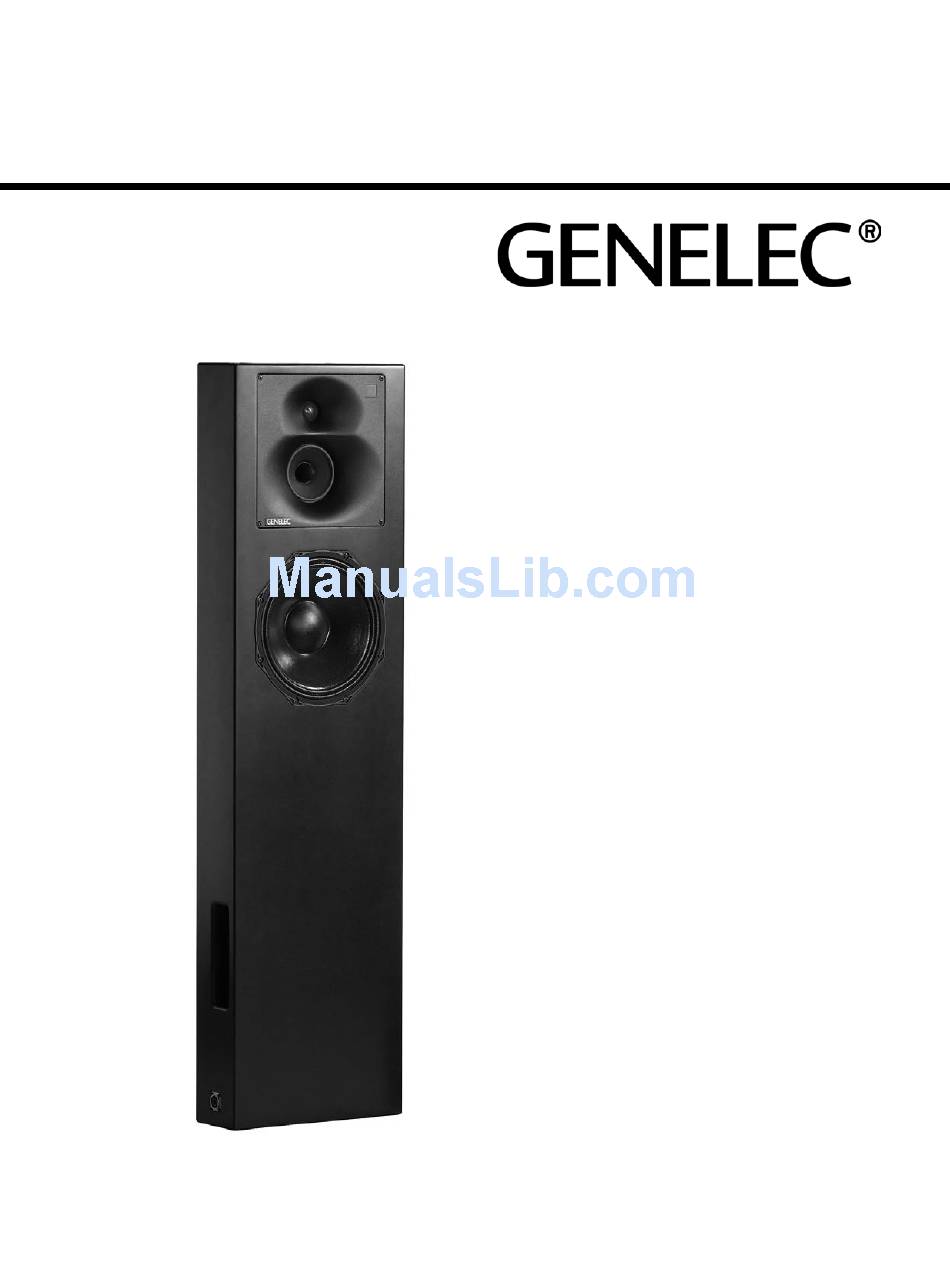

- Page 1 AOW312B Operating Manual Genelec AOW312B Active On-Wall Loudspeaker...
-
Page 2: Installation
Genelec AOW312B Active On-Wall Loudspeaker System The Genelec AOW312B is a three-way active loudspeaker system designed for medium sized, high quality home theater applications. This system excels as side or rear channels when mounted on-wall. It also offers mini- mum intrusion into designed spaces while providing high sound pressure levels required when employing Genelec’s large three-way... -
Page 3: Maintenance
8 to 20 mm (5/16" to 13/16") to fit in the Speakon connector. Alternatively, pre-terminated lengths of cable are available from Genelec. Be sure not to mix the amplifier/loud- speaker pairs when installing multiple loud- speakers at the same time. Each amplifier and... - Page 4 (14 AWG) 30 m (100 ft) 3,3 mm (12 AWG) 40 m (130 ft) 5,3 mm (10 AWG) 60 m (200 ft) Table 1. Recommended cable thicknesses for different lengths of cable Cable Screen (Source) (Speaker) Figure7. RCA to XLR cable...
- Page 5 Refer to sup- plier for full sales and guarantee terms. EC Declaration of Conformity This is to certify that the Genelec AOW312B Active On-Wall Loudspeaker conforms to the following standards: Safety: EN / IEC 60065:1998 6th Edition...
-
Page 6: System Specifications
*Note that the cable connectors require additional >100 mm (4") space behind the amplifier Genelec Document D0075R001a Copyright Genelec Oy 5.2008. All data subject to change without prior notice amplifier section Bass amplifier short term output power Midrange amplifier short term output power Treble amplifier short term output power Long term output power is limited by driver unit protection circuitry.
