Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
MODEL PAXLR - PAX
U
L
C
US LISTED
US LISTED
4
IND. CONT . EQ.
51EB
GENERAL DESCRIPTION
®

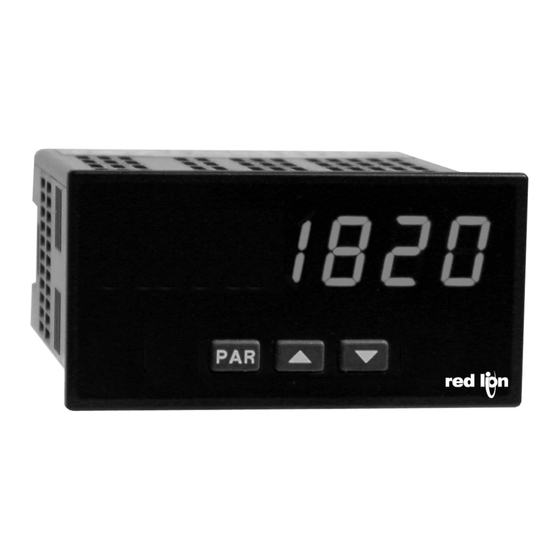

The PAX
Lite Rate Meter, Model PAXLR, provides the versatility and
flexibility needed to accommodate virtually any rate measuring application. The
meter has the ability to scale for direct readout in terms of the units being
measured. Whether a machine produces bottles, cloth, wire, or beverage mix,
operation is enhanced when the rate readout is expressed directly in bottles/min.,
feet/min., gallons/min., or whatever units are needed in plant applications.
The PAXLR can accommodate magnetic pickups, logic sensors, and NPN
open collector sensors. The pulses are received and scaled, so the desired
display can be achieved. The meter is programmed through both the front panel
buttons and DIP switches. Once the programming is complete, the front panel
buttons can be disabled by a DIP switch setting.
The meter has been specifically designed for harsh industrial environments.
With NEMA 4X/IP65 sealed bezel and extensive testing to meet CE
requirements, the meter provides a tough, yet reliable application solution.

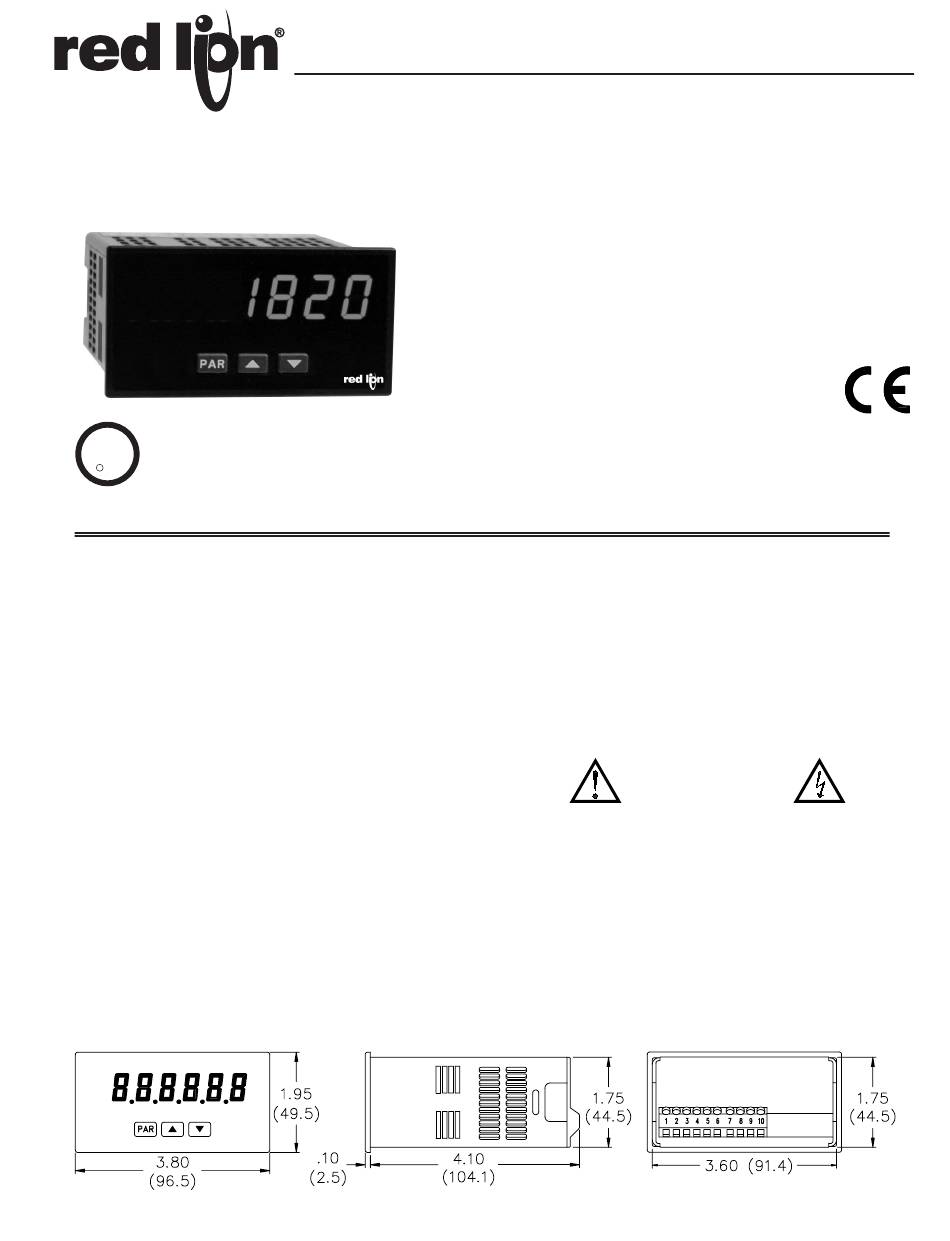

DIMENSIONS In inches (mm)
®
LITE RATE METER
! RATE INDICATION
! 6-DIGIT, 0.56" (14.2 mm) HIGH LED DISPLAYS
! INPUT RATES UP TO 25 KHZ
! ACCEPTS A WIDE VARIETY OF SENSORS
! PROGRAMMABLE SCALING
! PROGRAMMABLE UPDATE TIME
! PROGRAMMABLE DECIMAL POINTS
! NEMA 4X/IP65 SEALED FRONT BEZEL
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Read complete instructions prior to
installation and operation of the unit.
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is
2.1" (53.4) H x 5" (127) W.
1
CAUTION: Risk of Danger.
Bulletin No. PAXLR-C
Drawing No. LP0564
Released 8/08
CAUTION: Risk of electric shock.
Advertisement
Table of Contents
Related Manuals for Red Ion PAXLR000
Summary of Contents for Red Ion PAXLR000
- Page 1 Bulletin No. PAXLR-C Drawing No. LP0564 Released 8/08 Tel +1 (717) 767-6511 Fax +1 (717) 764-0839 www.redlion.net ® MODEL PAXLR - PAX LITE RATE METER ! RATE INDICATION ! 6-DIGIT, 0.56" (14.2 mm) HIGH LED DISPLAYS ! INPUT RATES UP TO 25 KHZ ! ACCEPTS A WIDE VARIETY OF SENSORS ! PROGRAMMABLE SCALING ! PROGRAMMABLE UPDATE TIME...
- Page 2 ABLE ONTENTS Ordering Information ....2 Wiring the Meter ..... . 4 General Meter Specifications.
- Page 3 ENERAL ETER PECIFICATIONS DISPLAY: 6-digit, 0.56" (14.2 mm), 7-segment LED. IECEE CB Scheme Test Certificate # US/8843A/UL Decimal points are programmed by front panel keys. CB Scheme Test Report # 04ME11209-20041018 2. POWER: Issued by Underwriters Laboratories, Inc. AC Power: 115/230 VAC, switch selectable. Allowable power line variation IEC 61010-1, EN 61010-1: Safety requirements for electrical ±10%, 50/60 Hz, 6 VA.
- Page 4 2.0 S ETTING THE WITCHES The meter has switches that must be checked and/or changed prior to SWITCH 3 applying power. To access the power switch, remove the meter base from the HI Frequency: Removes damping capacitor and allows max. frequency. case by firmly squeezing and pulling back on the side rear finger tabs.
- Page 5 3.1 POWER WIRING AC Power DC Power Terminal 1: VAC Terminal 3: +VDC Terminal 2: VAC Terminal 4: COMM 3.2 INPUT WIRING Two Wire Proximity, Current Source AC Inputs From Tach Generators, Etc. Magnetic Pickup Current Sinking Output Current Sourcing Output Interfacing With TTL Emitter Follower;...
- Page 6 4.0 R EVIEWING THE RONT UTTONS AND ISPLAY DISPLAY MODE OPERATION PROGRAMMING MODE OPERATION Access Programming Mode Store selected parameter and index to next parameter " No Function Increment selected digit of parameter value No Function Select digit position in parameter value 5.0 S CALING THE ETER...
- Page 7 6.0 P ROGRAMMING THE ETER PROGRAMMING SEQUENCE The Rate Indicator has five programmable parameters which are entered in HIGH UPDATE TIME (DISPLAY ZERO) the sequence shown above, using the front panel push buttons. 2'#.$" Before programming, refer to the section on Scaling the Meter to determine seconds )+ 1 00+ 0...
- Page 8 LIMITED WARRANTY The Company warrants the products it manufactures against defects in materials and workmanship for a period limited to two years from the date of shipment, provided the products have been stored, handled, installed, and used under proper conditions. The Company’s liability under this limited warranty shall extend only to the repair or replacement of a defective product, at The Company’s option.
