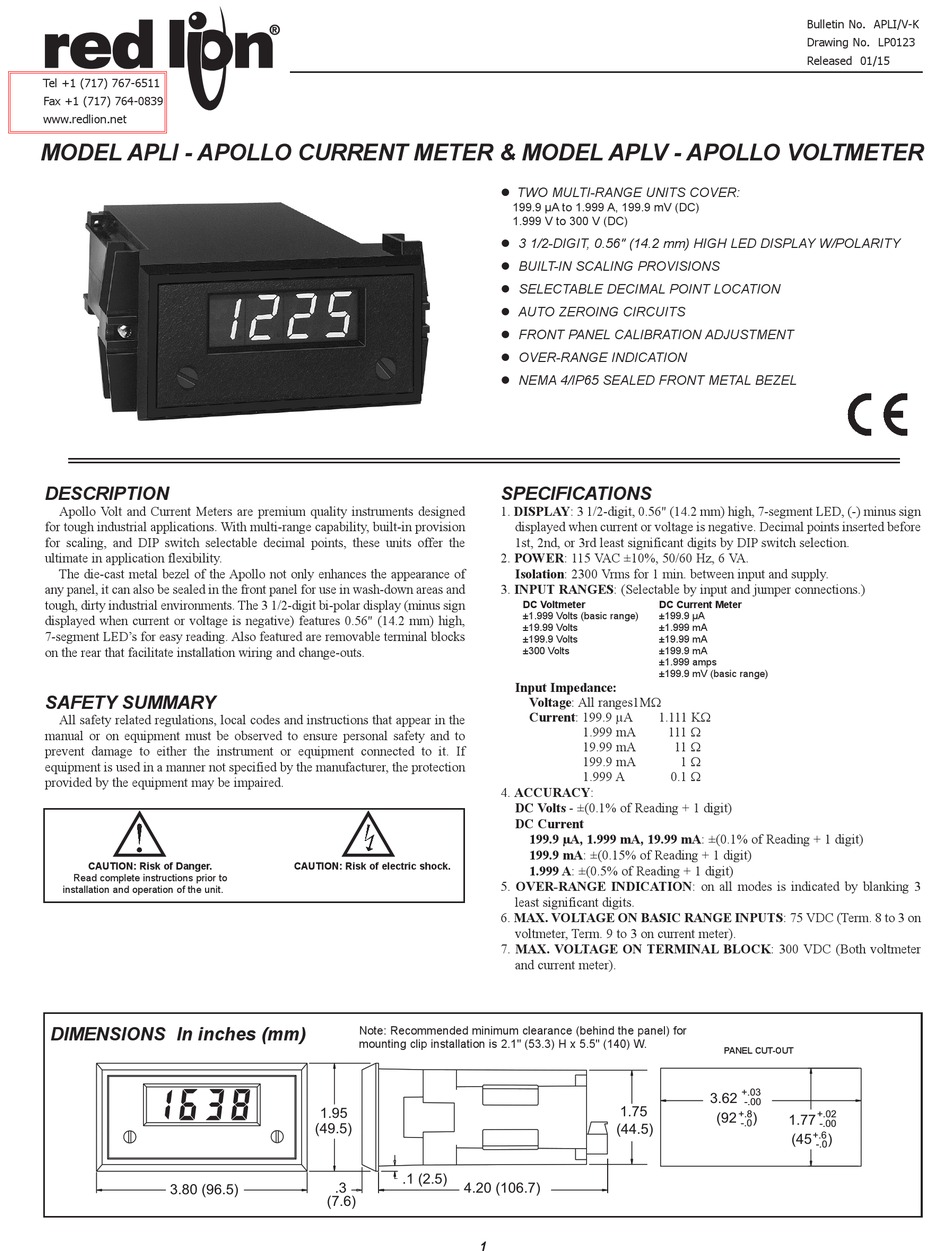

MODEL APLI - APOLLO CURRENT METER & MODEL APLV - APOLLO VOLTMETER
DESCRIPTION
Apollo Volt and Current Meters are premium quality instruments designed
for tough industrial applications. With multi-range capability, built-in provision
for scaling, and DIP switch selectable decimal points, these units offer the
ultimate in application flexibility.

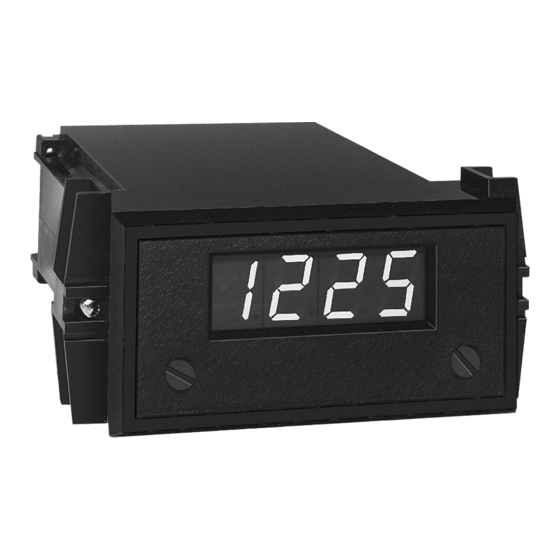

The die-cast metal bezel of the Apollo not only enhances the appearance of
any panel, it can also be sealed in the front panel for use in wash-down areas and
tough, dirty industrial environments. The 3 1/2-digit bi-polar display (minus sign
displayed when current or voltage is negative) features 0.56" (14.2 mm) high,
7-segment LED's for easy reading. Also featured are removable terminal blocks
on the rear that facilitate installation wiring and change-outs.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
DIMENSIONS In inches (mm)
1638
3.80 (96.5)
CAUTION: Risk of electric shock.
Note: Recommended minimum clearance (behind the panel) for
mounting clip installation is 2.1" (53.3) H x 5.5" (140) W.
1.95
(49.5)
.1 (2.5)
.3 4.20 (106.7)
(7.6)
 TWO MULTI-RANGE UNITS COVER:
199.9 µA to 1.999 A, 199.9 mV (DC)
1.999 V to 300 V (DC)
 3 1/2-DIGIT, 0.56" (14.2 mm) HIGH LED DISPLAY W/POLARITY
 BUILT-IN SCALING PROVISIONS
 SELECTABLE DECIMAL POINT LOCATION
 AUTO ZEROING CIRCUITS
 FRONT PANEL CALIBRATION ADJUSTMENT
 OVER-RANGE INDICATION
 NEMA 4/IP65 SEALED FRONT METAL BEZEL
SPECIFICATIONS
1. DISPLAY: 3 1/2-digit, 0.56" (14.2 mm) high, 7-segment LED, (-) minus sign
displayed when current or voltage is negative. Decimal points inserted before
1st, 2nd, or 3rd least significant digits by DIP switch selection.
2. POWER: 115 VAC ±10%, 50/60 Hz, 6 VA.
Isolation: 2300 Vrms for 1 min. between input and supply.
3. INPUT RANGES: (Selectable by input and jumper connections.)
DC Voltmeter
±1.999 Volts (basic range)
±19.99 Volts
±199.9 Volts
±300 Volts
Input Impedance:
Voltage: All ranges1MΩ
Current: 199.9 µA
1.999 mA
19.99 mA
199.9 mA
1.999 A
4. ACCURACY:
DC Volts - ±(0.1% of Reading + 1 digit)
DC Current
199.9 µA, 1.999 mA, 19.99 mA: ±(0.1% of Reading + 1 digit)
199.9 mA: ±(0.15% of Reading + 1 digit)
1.999 A: ±(0.5% of Reading + 1 digit)
5. OVER-RANGE INDICATION: on all modes is indicated by blanking 3
least significant digits.
6. MAX. VOLTAGE ON BASIC RANGE INPUTS: 75 VDC (Term. 8 to 3 on
voltmeter, Term. 9 to 3 on current meter).
7. MAX. VOLTAGE ON TERMINAL BLOCK: 300 VDC (Both voltmeter
and current meter).
1.75
(44.5)
1
Bulletin No. APLI/V-K
Drawing No. LP0123
Released 01/15
DC Current Meter
±199.9 µA
±1.999 mA
±19.99 mA
±199.9 mA
±1.999 amps
±199.9 mV (basic range)
1.111 KΩ
111 Ω
11 Ω
1 Ω
0.1 Ω
PANEL CUT-OUT
+.03
3.62
-.00
+.8 +.02
(92 )
1.77
-.0 -.00
+.6
(45 )
-.0
