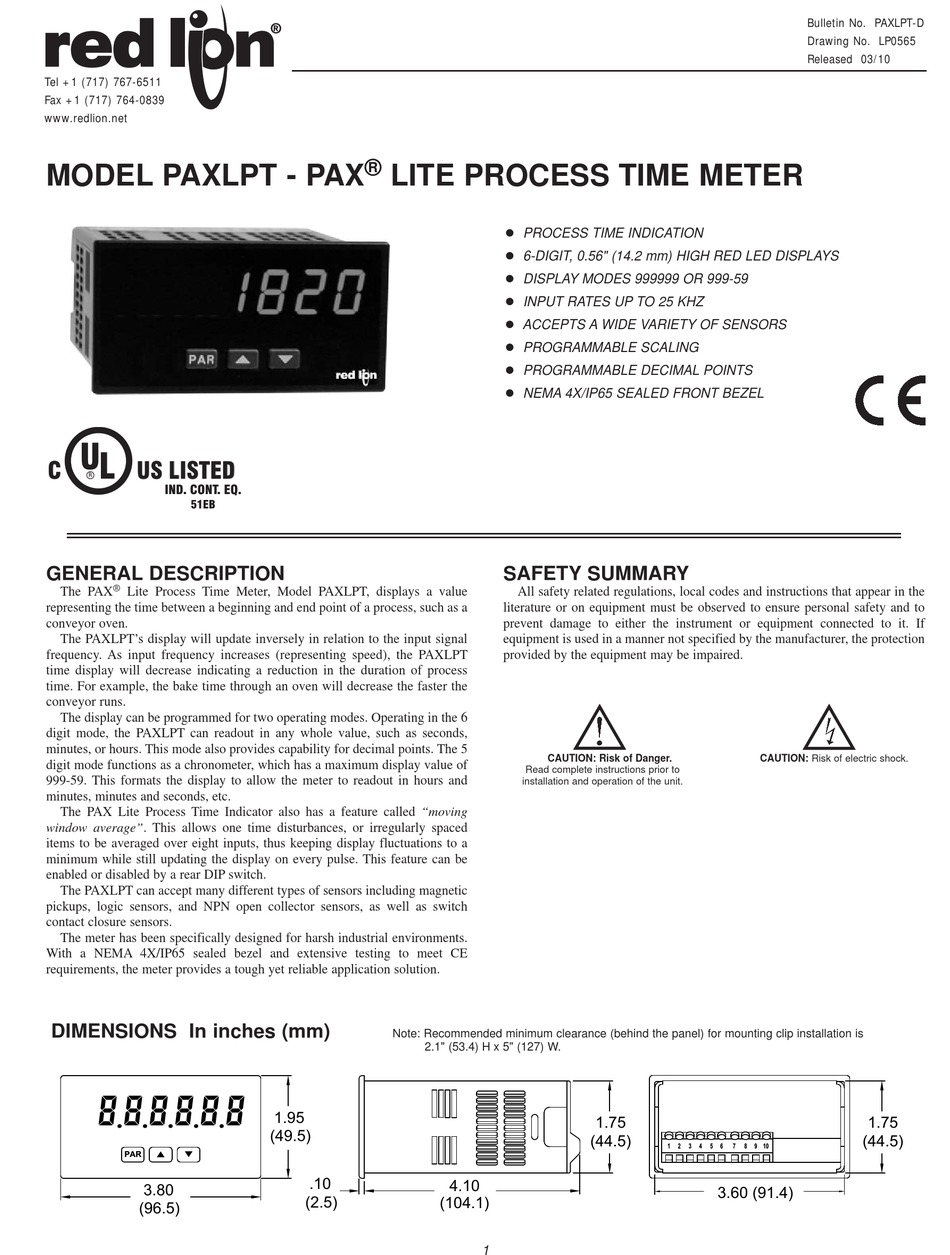

MODEL PAXLPT - PAX
U L
C C
US LISTED
US LISTED
R
IND. CONT. EQ.
51EB
GENERAL DESCRIPTION
®
The PAX
Lite Process Time Meter, Model PAXLPT, displays a value
representing the time between a beginning and end point of a process, such as a
conveyor oven.
The PAXLPT's display will update inversely in relation to the input signal
frequency. As input frequency increases (representing speed), the PAXLPT
time display will decrease indicating a reduction in the duration of process
time. For example, the bake time through an oven will decrease the faster the
conveyor runs.
The display can be programmed for two operating modes. Operating in the 6
digit mode, the PAXLPT can readout in any whole value, such as seconds,
minutes, or hours. This mode also provides capability for decimal points. The 5
digit mode functions as a chronometer, which has a maximum display value of
999-59. This formats the display to allow the meter to readout in hours and
minutes, minutes and seconds, etc.
The PAX Lite Process Time Indicator also has a feature called "moving
window average". This allows one time disturbances, or irregularly spaced
items to be averaged over eight inputs, thus keeping display fluctuations to a
minimum while still updating the display on every pulse. This feature can be
enabled or disabled by a rear DIP switch.
The PAXLPT can accept many different types of sensors including magnetic
pickups, logic sensors, and NPN open collector sensors, as well as switch
contact closure sensors.
The meter has been specifically designed for harsh industrial environments.
With a NEMA 4X/IP65 sealed bezel and extensive testing to meet CE
requirements, the meter provides a tough yet reliable application solution.
DIMENSIONS In inches (mm)
8. 8 . 8 . 8 . 8 . 8
PAR
3.80
(96.5)
®
LITE PROCESS TIME METER
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is
2.1" (53.4) H x 5" (127) W.
1.95
(49.5)
.10
4.10
(2.5)
(104.1)
 PROCESS TIME INDICATION
 6-DIGIT, 0.56" (14.2 mm) HIGH RED LED DISPLAYS
 DISPLAY MODES 999999 OR 999-59
 INPUT RATES UP TO 25 KHZ
 ACCEPTS A WIDE VARIETY OF SENSORS
 PROGRAMMABLE SCALING
 PROGRAMMABLE DECIMAL POINTS
 NEMA 4X/IP65 SEALED FRONT BEZEL
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
1.75
(44.5)
1
Bulletin No. PAXLPT-D
Drawing No. LP0565
Released 03/10
CAUTION: Risk of electric shock.
1
2
3
4
5 6
7
8
9
10
3.60 (91.4)
1.75
(44.5)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAXLPT and is the answer not in the manual?

Questions and answers

Summary of Contents for Red Ion PAXLPT

  • Page 1 The display can be programmed for two operating modes. Operating in the 6 digit mode, the PAXLPT can readout in any whole value, such as seconds, minutes, or hours. This mode also provides capability for decimal points. The 5 CAUTION: Risk of Danger.
  • Page 2: Table Of Contents

    ABLE ONTENTS Ordering Information ....2 Wiring the Meter ..... . . 4 General Meter Specifications .
  • Page 3: General Meter Specifications

    ENERAL ETER PECIFICATIONS 1. DISPLAY: 6-digit, 0.56" (14.2 mm), 7-segment red LED. Type 4X Enclosure rating (Face only), UL50 Decimal points are programmed by front panel keys (6 digit mode only) IECEE CB Scheme Test Report # 04ME11209-20041018 2. POWER: Issued by Underwriters Laboratories, Inc.
  • Page 4: Setting The Jumper And Switches

    2.0 S ETTING THE UMPER AND WITCHES The meter has a jumper and switches, which must be checked and/or changed SWITCH 1 prior to applying power. To access the power switch and the jumper, remove the SNK.: Adds internal 7.8 K pull-up resistor to + 12 VDC, I = 1.9 mA SWITCH 2 meter base from the case by firmly squeezing and pulling back on the side rear...
  • Page 5 3.1 POWER WIRING AC Power DC Power Terminal 1: VAC Terminal 3: +VDC Terminal 2: VAC Terminal 4: COMM 3.2 INPUT WIRING Two Wire Proximity, Current Source AC Inputs From Tach Generators, Etc. Magnetic Pickup Resistor to limit current 2.2KΩ to 2.5 mA MAX.
  • Page 6: Reviewing The Front Buttons And Display

    The pulses from a sensor are received by the DR = 150 minutes PAXLPT, and then scaled to produce just such a readout. The following formula PPS = 450 RPM x 60 PPR will help provide the scaling values to achieve the desired readout.
  • Page 7: Programming The Meter

    6.0 P ROGRAMMING THE ETER TIME TIME PROGRAMMING SEQUENCE DISPLAY DISPLAY dEC Pt SC FAC SCALEr Decimal Scale Scale Factor Multiplier Position The Process Time Indicator has three programmable parameters which are SCALE MULTIPLIER entered in the sequence shown above, using the front panel push buttons. ...
  • Page 8 LIMITED WARRANTY The Company warrants the products it manufactures against defects in materials and workmanship for a period limited to two years from the date of shipment, provided the products have been stored, handled, installed, and used under proper conditions. The Company’s liability under this limited warranty shall extend only to the repair or replacement of a defective product, at The Company’s option.
