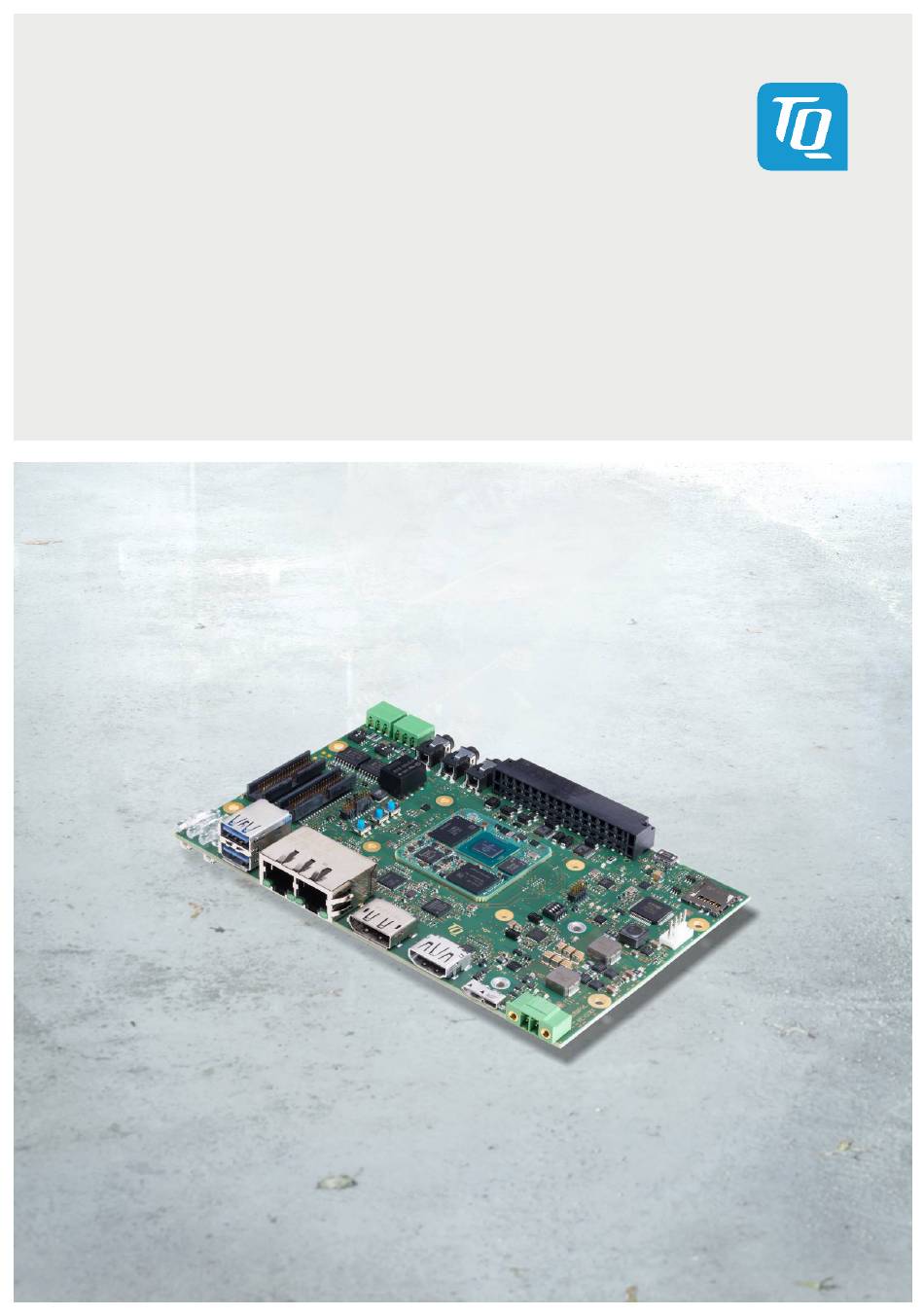

- Page 1 MBa8MPxL User's Manual MBa8MPxL UM 0100 04.08.2022...
-
Page 2: Table Of Contents
User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page i TABLE OF CONTENTS ABOUT THIS MANUAL ...................................... 1 Copyright and license expenses ............................1 Registered trademarks ................................1 Disclaimer ....................................1 Imprint ......................................1 Tips on safety .................................... 2 Symbols and typographic conventions ........................... - Page 3 User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page ii Assembly ....................................32 SAFETY REQUIREMENTS AND PROTECTIVE REGULATIONS ......................33 EMC ......................................33 ESD ......................................33 Operational safety and personal security ........................33 CLIMATIC AND OPERATIONAL CONDITIONS ............................33 Protection against external effects ..........................
- Page 4 User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page iii TABLE DIRECTORY Table 1: Terms and conventions ....................................2 Table 2: Data interfaces ........................................5 Table 3: Diagnostic and user interfaces ..................................5 Table 4: C devices, address mapping on TQMa8MPxL and MBa8MPxL ...................... 9 Table 5: Temperature sensor SE97BTP, D1 ................................
- Page 5 User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page iv FIGURE DIRECTORY Figure 1: Block diagram MBa8MPxL ..................................... 4 Figure 2: MBa8MPxL interfaces top ....................................6 Figure 3: MBa8MPxL interfaces bottom ..................................7 Figure 4: Block diagram TQMa8MPxL ..................................8...
- Page 6 User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page v REVISION HISTORY Rev. Date Name Pos. Modification 0001 06.03.2021 Petz First edition Non-functional changes, expressions, phrases Figure 1 Updated Table 2 “3.3 V” for X555 removed 0002 16.03.2021...
-
Page 7: About This Manual
Important Notice: Before using the MBa8MPxL or parts of the MBa8MPxL schematics, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. TQ-Systems GmbH makes no other warranties including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose. -
Page 8: Tips On Safety
Violation of this guideline may result in damage / destruction of the MBa8MPxL and be dangerous to your health. -
Page 9: Naming Of Signals
User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page 3 Naming of signals A hash mark (#) at the end of the signal name indicates a low-active signal. Example: RESET# If a signal can switch between two functions and if this is noted in the name of the signal, the low-active function is marked with a hash mark and shown at the end. -
Page 10: Brief Description
The MBa8MPxL is designed as a carrier board for the TQMa8MPxL. The TQMa8MPxL is directly soldered on the MBa8MPxL. ® Core of the MBa8MPxL is the TQMa8MPxL with an NXP i.MX 8M Plus CPU based on a Dual or Quad Cortex -A53. -
Page 11: Mba8Mpxl Interfaces, Overview
User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page 5 MBa8MPxL interfaces, overview The following interfaces/functions and user interfaces are available on the MBa8MPxL: Table 2: Data interfaces Interface Connector Type Remark X15, X16, Audio 3 × 3.5 mm jack... -
Page 12: Mba8Mpxl Interfaces, Location
User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page 6 MBa8MPxL interfaces, location Figure 2: MBa8MPxL interfaces top... - Page 13 User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page 7 MBa8MPxL interfaces, (continued) Figure 3: MBa8MPxL interfaces bottom...
-
Page 14: Electronics
On the MBa8MPxL the standard interfaces like USB, Ethernet, etc., provided by the TQMa8MPxL are routed to industry standard connectors. All other relevant signals and buses provided by the TQMa8MPxL are routed to 50 mil pin headers on the MBa8MPxL. -
Page 15: I 2 C Devices, Address Mapping
All I2C buses provided by the TQMa8MPxL have a 3.3 V level. In order to be able to connect 1.8 V components as well, two level converters are used on the MBa8MPxL. One is permanently connected to I2C4, the second can be varied in its connection, but uses I2C2 by default. -
Page 16: Rtc Backup
RTC backup In case of power failure or power down, a lithium battery type CR2032 on the MBa8MPxL supplies the RTC on the TQMa8MPxL, which can be supplied with 2.1 V to 3.7 V, typical 3.0 V. The TQMa8MPxL features an i.MX 8M Plus-internal RTC or a discrete RTC PCF85063A. -
Page 17: Reset
The RESET_OUT# signal of the TQMa8MPxL is available on the MBa8MPxL. A red LED (V59) on the MBa8MPxL indicates a reset condition; see Table 26. On the MBa8MPxL a partial reset of the TQMa8MPxL is possible, e.g. with signals PMIC_WDOG_IN# and RESET_IN#. TQMa8MPxL... -
Page 18: Power Supply
Power supply At X13, the MBa8MPxL has to be supplied with 24 V +10 % / –33 % (16 V to 26.4 V). All other voltages required on the MBa8MPxL are derived from the supply voltage. 5 V (2.2 A), 3.3 V (1.75 A) and 1.8 V (0.75 A) are available at pin headers X61 and X63. It must be ensured that the permissible limit values of the input circuitry are not exceeded. -
Page 19: Communication Interfaces
3.3.1 Ethernet 1000 Base-T (RGMII) The i.MX 8M Plus CPU has two independent RGMII interfaces. On the MBa8MPxL both interfaces are used to provide two Gigabit Ethernet ports by means of two DP83867 Ethernet PHYs. The PHY has boot straps to start with adjustable default values. Some boot straps can be customized with placement options. -
Page 20: Sd Card Interface
3.3.2 SD card interface The MBa8MPxL offers a microSD card slot that can also be used as boot source. All signals are directly connected to the USDHC2 interface of the i.MX 8M Plus. The TQMa8MPxL voltage V_3V3_SD supplies the microSD card slot. Since this voltage is controlled by SD_RESET#, the microSD card is automatically reset in case of a Reset. -
Page 21: Usb 3.0 Hub
USB Host 1 & 2 of the TUSB8041 are connected to a Dual USB 3.0 Type A socket (X36) on the MBa8MPxL. USB Host 3 is routed to the PCIe M.2 connector X48, USB Host 4 is routed to the LVDS-CMD connector X7 on the MBa8MPxL. -
Page 22: Pcie M.2
For PCIe, the connection of a plug-in card in the M.2 form factor is provided. The M.2 standard defines different codings for the connector, an M.2 slot with "A+E" coding is used on the MBa8MPxL. M.2 modules are available in different form factors. The MBa8MPxL supports the common 2230 form factor. -
Page 23: Debug Uart
User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page 17 3.3.5 PCIe M.2 (continued) Table 11: Pinout M.2, X48 Pin name Target pin/net Pin name Target pin/net M1/M2 M1; M2 REFCLK-1/RSV V_3V3_PCIE REFCLK+1/RSV V_3V3_PCIE UIM_POWER_SRC X557 – Pin 4... -
Page 24: Mipi Dsi / Displayport
The TQMa8MPxL MIPI DSI interface, consisting of a differential clock signal and four differential data lines, is routed on the MBa8MPxL to DisplayPort connector X65 via a Toshiba TC9595XBG DSI-to-DisplayPort bridge. The bridge supports DisplayPort 1.1a standard and thus resolutions of 1920x1200 at 60 FPS. -
Page 25: Mipi Csi
If a use as GPIO is required, this can be made possible by equipping 0 Ω resistors. The I C buses operate at 1.8 V and are connected to I2C4 via a level shifter on the MBa8MPxL. CSI0 can optionally be connected to another I C bus to avoid address conflicts. -
Page 26: Lvds
The i.MX 8M Plus offers an LVDS controller with a dual LVDS interface. Each of the interfaces uses four differential lanes. On the MBa8MPxL there is one interface for connecting single or dual LVDS. In addition, two GPIO (BLT_EN, RESET#), a PWR_EN and a PWM signal are provided. -
Page 27: Hdmi
3.3.10 HDMI The HDMI_TX interface of the TQMa8MPxL is provided on the MBa8MPxL on an HDMI connector. Between TQMa8MPxL and HDMI socket is a "HDMI signal conditioning chip", which converts the levels and provides ESD protection. The HDMI_ARC_N and HDMI_ARC_P signals have capacitors between the module and the connector according to the EARC specification. -
Page 28: Can Fd
CAN FD The CAN ports of the TQMa8MPxL are available on the MBa8MPxL via level converters on the 3-pin connectors X18 and X19. Both interfaces are galvanically isolated with 1 kV. The CAN interfaces are not galvanically isolated from each other. -
Page 29: Audio
A Texas Instruments TLV320 audio codec is assembled. It is configured via SAI3 and controlled by the I2C2 bus. The audio codec provides microphone, line in and line out signals at 3.5 mm jacks on the MBa8MPxL. The supply voltage and signal level operate at 1.8 V. All jack sockets are ESD protected. -
Page 30: Ecspi
SPDIF The SPDIF interface is not used as such on the MBa8MPxL, but can be provided on a pin header if required. By default these module signals are configured as GPIO to enable the control of the user LEDs via transistors.; see chapter 3.4.4. -
Page 31: Io Extension
3.3.19 IO extension The TQMa8MPxL provides eight GPIO1 interface pins as four outputs and four inputs at an IO connector on the MBa8MPxL. All signals can operate at up to 24 V. The corresponding circuitry is provided on the MBa8MPxL. -
Page 32: Pin Header
3.3.20 Pin header All signals, which are not used on the MBa8MPxL are routed on two pin headers. Most of these signals can be configured as GPIO. 1.8 V, 3.3 V, and 5 V are available on each pin header. - Page 33 User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page 27 3.3.20 Pin header (continued) Table 22: Pinout header X61 Dir. Level Group Signal Signal Group Level Dir. Power V_5V_SW V_1V8 Power 1.8 V 1.8 V CLK1_IN V_3V3_MB Power 3.3 V...
-
Page 34: Diagnostic And User Interfaces
Push buttons On the MBa8MPxL two push buttons are routed to a pin header and can be connected to any other signal from there. SWITCH_B# and GPT1_CPTR2, as well as SWITCH_A# and GPT1_CLK can each be connected via 0 Ω bridges. -
Page 35: Status Leds
User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page 29 3.4.4 Status LEDs The MBa8MPxL offers 21 diagnosis and status LEDs (plus the ones in the RJ45 connectors) to signal the system status. Table 25: Status LEDs Interface Ref. -
Page 36: Jtag
RESET_IN#, 10 kΩ PU SOFTWARE No software is required for the MBa8MPxL. Suitable software is only required on the TQMa8MPxL and is not a part of this Preliminary User's Manual. More information can be found in the TQ-Support Wiki for the... -
Page 37: Mechanics
The MBa8MPxL has overall dimensions (length × width) of 160 × 100 mm The highest component on the top side of the MBa8MPxL is approximately 15.5 mm (stacked USB Type A connector). The highest component on the bottom side of the MBa8MPxL is approximately 12 mm (pin header). -
Page 38: Assembly
User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page 32 Assembly Figure 25: MBa8MPxL component placement top Figure 26: MBa8MPxL component placement bot The labels on the MBa8MPxL show the following information: Table 27: Labels on MBa8MPxL... -
Page 39: Safety Requirements And Protective Regulations
TQMa8MPxL or the MBa8MPxL and thus malfunction, deterioration or destruction. Protection against external effects Protection class IP00 was defined for the MBa8MPxL. There is no protection against foreign objects, touch or humidity. Reliability and service life No detailed MTBF calculation has been done for the MBa8MPxL. -
Page 40: Environment Protection
General notes Due to technical reasons a battery is necessary for the MBa8MPxL. Batteries containing mercury (Hg), cadmium (Cd) or lead (Pb) are not used. If this is for technical reasons unavoidable, the device is marked with the corresponding hazard note. -
Page 41: Appendix
User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page 35 APPENDIX Acronyms and definitions The following acronyms and abbreviations are used in this document: Table 29: Acronyms Acronym Meaning Analog/Digital Converter Artificial Intelligence ® Advanced RISC Machine... - Page 42 User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page 36 Acronyms and definitions (continued) Table 30: Acronyms (continued) Acronym Meaning Media Access Controller Microphone MIPI Mobile Industry Processor Interface Machine Learning MTBF Mean operating Time Between Failures...
-
Page 43: References
User's Manual l MBa8MPxL UM 0100 l © 2022, TQ-Systems GmbH Page 37 References Table 30: Further applicable documents Name Rev. / Date Company i.MX 8M Plus Applications Processor Data Sheet Rev. 1 / 08/2021 i.MX 8M Plus Applications Processor Reference Manual Rev. - Page 44 TQ-Systems GmbH Mühlstraße 2 l Gut Delling l 82229 Seefeld Info@TQ-Group TQ-Group...
