Summary of Contents for Myson TOUCH4
- Page 1 Model: TOUCH4 Model: TOUCH4...
-

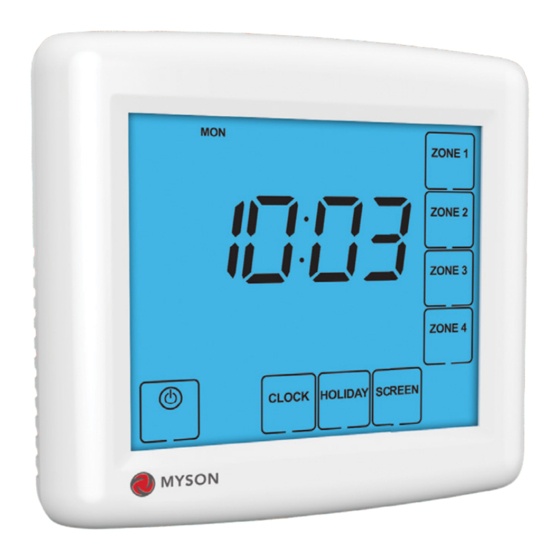

Page 2: Product Image
Model: TOUCH4 Model: TOUCH4 Time Clock Series Time Clock Series... -
Page 3: Table Of Contents
Table of Contents Product Image Table of Contents Installation Procedure LCD Display Normal Run Mode Setting the Clock Holiday Selecting 5/2 Day or 7 Day Programming Adjusting the Switching Times Copy Function Mode Select Boost Facility Wiring Diagram Model: TOUCH4... -
Page 4: Installation Procedure
Installation Procedure Mount the time clock at eye level. Read the instructions fully so you get the best from our product.. Don’t Do not install near to a direct heat source as this will affect functionality. Do not push hard on the LCD screen as this may cause irreparable damage. This time clock is designed to be flush mounted and requires a back box of 35mm (minimum depth) to be sunk into the wall prior to installation. - Page 5 Model: TOUCH4...
- Page 6 Time Clock Series Time Clock Series...
-
Page 7: Lcd Display
Power: Press once to turn off display. Cancel: Used to exit setup/program operations. Setup/Programming Keys - Used to navigate setup options. Off/Constant/Auto – Displays selected zones’ programming mode. Zone/Time Selection Keys – Used with Zone/Times configuration. Model: TOUCH4... -
Page 8: Normal Run Mode
Normal Run Mode In normal run mode, the time clock will display the current time. It can also be set to show the status for a particular zone. To display the status of a zone, press Zone 1 – Zone 4. This screen will be displayed until you press DONE and return to the main menu. -
Page 9: Setting The Clock
Use the Left Up/Down keys to set the hour ............• Use the Right Up/Down arrow keys to set the minute ........• Press the Day key to set the day ..................• ..................Current Day Hours Minutes Adjust Minutes Adjust Hours Adjust Day Model: TOUCH4 Model: TM4... -
Page 10: Holiday
Holiday All four timed outputs will be disabled during a holiday period. At the end of your holiday, the time clock will revert back to the programmed setting. • Press HOLIDAY ....................• Enter the desired duration in days ............•... -
Page 11: Selecting 5/2 Day Or 7 Day Programming
00 = 5/2 Day mode, 01 = 7 Day mode • ................In 5/2 Day mode the time clock will display In 7 Day mode, the time clock Mon > Fri prompting you to program the will display Mon. switching times for the weekend. Model: TOUCH4 Model: TM4... -
Page 12: Adjusting The Switching Times
Adjusting the Switching Times • Select the zone you wish to program, for example Zone 1 ........ • Press EDIT ..........................If the zone is operating in 5/2 day mode, you will see Mon, Tue, Wed, Thu, Fri on the display. If it is operating in 7 day mode, you will see Mon. •... -
Page 13: Copy Function
To use the Copy function, follow these steps: • Select the zone to copy from and press EDIT ............• Press the Copy key ......................• Select each zone you want to copy to ........• .................. Copy Key Model: TOUCH4 Model: TM4... -
Page 14: Mode Select
Mode Select Each zone can operate in 3 modes: Auto: The zone will work to the programmed switching To set the mode for the zone, follow these steps: • Select the zone you wish to program ........• Press Mode until the desired mode is displayed ..........•... -
Page 15: Wiring Diagram
Wiring Diagram - TOUCH4 TOUCH4 230VAC Neutral Live Switch Live CH4 Switch Live CH3 Switch Live CH2 Switch Live CH1 Model: TOUCH4 Model: TM4... - Page 16 Want More Information? Call our support team on: +44 (0)845 402 3434 Or view technical specifications directly on our website: www.myson.co.uk MYSON Eastern Avenue, Team Valley, Gateshead, Tyne & Wear NE11 0PG, UK T: +44 (0)845 402 3434 F: +44 (0)191 491 7568 sales@myson.co.uk...
