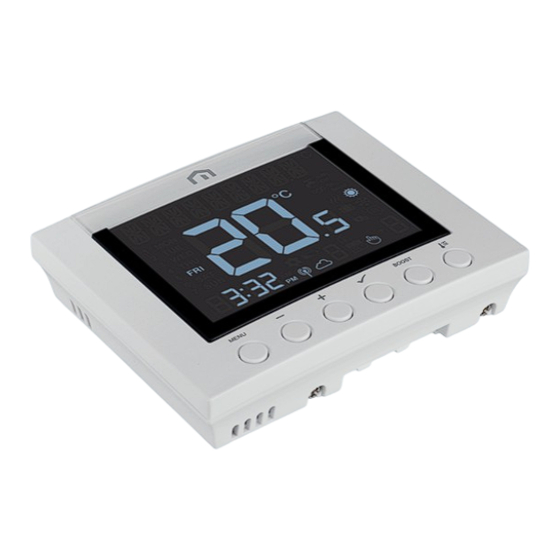

- Page 1 Installation and user manual Heating, cooling Smart, app & hot water connectivity Battery Geo location powered Unisenza Plus - Thermostat 5 year guarantee...
- Page 2 Unisenza Plus - Thermostat Installation and user manual Release Date First release August 2023...
-
Page 3: Table Of Contents
Safety warnings ........................4 Pictograms used in this manual....................4 Purpose of the manual .......................4 Intended use ...........................4 Safety regulations ........................5 Technical data .........................6 Unisenza Plus Thermostat .......................6 Dimensions ..........................7 Pack contents .......................... 7 Overview ..........................8 Unisenza Plus Thermostat .......................8 Button usage ..........................8 Display icons ..........................9... -
Page 4: Safety Warnings
Installation and connection instructions. Intended use The Unisenza Plus Thermostat is a wireless room thermostat with Zigbee 3.0. It offers two channels control outputs through the Zigbee wireless communications. The first channel can be used for programmable room temperature controls and the second channel is designed for a timer control of domestic hot water on/off. -
Page 5: Safety Regulations
Unisenza Plus - Thermostat Installation and user manual • Operation modes include Schedule, Manual, Temporary override, Boost, Holiday and Off with frost protection • 7-day, 5/2-day or single-day programming options • Optimum start/stop control strategies for energy efficiency • Selectable TPI or Span control algorithm •... -
Page 6: Technical Data
RED directive 2014/53/EU • ROHS directive 2011/65/EU • REACH (EC 1907/2006) The Unisenza Plus Thermostat complies with the relevant UK Statutory Instruments: • Electrical Equipment (Safety) Regulations 2016 • Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012/3032) •... -
Page 7: Dimensions
Unisenza Plus - Thermostat Installation and user manual DIMENSIONS PACK CONTENTS a. Wall mount bracket b. Unisenza Plus Thermostat c. 2 x AA-sized Alkaline Batteries d. Plate fixing screw e. Fixing wall plug for plate fixing... -
Page 8: Overview
Unisenza Plus - Thermostat Installation and user manual OVERVIEW Unisenza Plus Thermostat Display LCD 2. Operation mode button 3. Boost button 4. Confirm button 5. Button + 6. Button - 7. Menu / Back button 8. Battery compartment Button usage... -
Page 9: Display Icons
Unisenza Plus - Thermostat Installation and user manual Display icons Icon Description Text Bar (9 digits) Time Room Temperature/Set point Day of the Week (numeric or alphabetic display defined in set- tings) Demand Active (Heat / Cool) Schedule mode - Schedule mode icon with program number Temporary Override Permanent Hold Boost mode under schedule +Hr... -
Page 10: Applications
The device can also be used as the master room control unit when paired with Unisenza PLUS Elec- tronic Thermostatic Head. In such use case, Unisenza Plus Thermostat is used as the room temper- ature sensor and setpoint interface for the paired Unisenza PLUS Electronic Thermostatic Head. A... -
Page 11: Download The App
Installation and user manual DOWNLOAD THE APP The management of the Unisenza Plus Thermostat is also possible through a dedicated APP that allows its configuration and the management of the devices you will pair. In order to download the APP, you need to connect to the STORE of your device used for con- figuration and install the Unisenza Plus. -
Page 12: Installation
Unisenza Plus - Thermostat Installation and user manual INSTALLATION Recommendations for a correct installation 50°C 0°C O ST M EN Unisenza Plus Unisenza Thermostat Plus Thermostat Unisenza Plus Thermostat... -
Page 13: Fixing The Bracket To The Wall
Unisenza Plus - Thermostat Installation and user manual Fixing the bracket to the wall When fastening, be very careful not to use too much force when tightening the supplied screws. During assembly, if any problems arise, contact the Manufacturer and request assistance. -
Page 14: Inserting The Batteries
Installation and user manual Inserting the batteries The Unisenza Plus Thermostat, to work, requires 2 AA alkaline batteries (included in the package). When installing the batteries, observe the correct polarity indicated in the battery housing. Reversing the polarity runs the risk of damaging the electronic regulator. -
Page 15: Fixing The Thermostat To The Bracket
Unisenza Plus - Thermostat Installation and user manual Fixing the thermostat to the bracket When fastening, be very careful not to use too much force when tightening the supplied screws. During assembly, if any problems arise, contact the Manufacturer and request assistance. -
Page 16: Use
15 seconds. Power up The ignition of the Unisenza Plus Thermostat takes place by inserting the batteries in their housing, which has already been seen in the previous chapters. Below what appears on the display. - Page 17 Unisenza Plus - Thermostat Installation and user manual YES or NO YES or NO If "YES" was chosen at the "CONNECT" request, remember to activate the association mode in the Unisenza Plus Gateway, to do this consult the Gateway manual. If "NO" has been chosen, it will be possible to pair the device at a later time by accessing the menu: ADMIN SETTING->...
-
Page 18: Pairing To Unisenza Plus Gateway
Pairing to Unisenza Plus Gateway With APP The association between the Unisenza Plus Thermostat and the Unisenza Plus Gateway can be done through the system management APP. To proceed with the association you need to have already installed and configured the Gateway. - Page 19 MENU BOOST If you want to associate a Unisenza Plus Thermostat that was previously associated with an- other Gateway, it is necessary to perform a reset to the factory settings of the electronic regu- lator before making the new association.
- Page 20 Installation and user manual Without APP The association between the Unisenza Plus Thermostat and the Unisenza Plus Gateway can also be made directly between the two devices. To proceed with the association you need to have already installed and configured the Gateway.
- Page 21 LAN/WiFi ZigBee MENU BOOST If you want to associate a Unisenza Plus Thermostat that was previously associated with another Gateway, it is necessary to perform a reset to the factory settings of the electronic regulator before making the new association.
-
Page 22: Pairing With Other Unisenza Plus Device (Optional)
Unisenza Plus - Thermostat Installation and user manual Pairing with other Unisenza Plus device (optional) After the Unisenza Plus Thermostat joined a Unisenza Plus network, it can - MAIN - AUTO be paired with a Unisenza Plus Receiv- - AUX - er or Unisenza Plus Electronic Ther- mostatic Head. - Page 23 Unisenza Plus - Thermostat Installation and user manual Pair device using the local interface SYS MODE SCHEDULE USER SET ADMIN SET NETWORK PAIR TEMP DISP VLV PROT CONTROL MIN SP MAX SP CONNECT STATUS IDENTIFY REMOVE - MAIN - AUTO - AUX - MENU BOOST...
-
Page 24: Change Operation Mode
Unisenza Plus - Thermostat Installation and user manual Change set point The icon flashes when Optimum Start/Stop is active or Valve Protection operates. Change operation mode Press Operation Mode button to switch between Schedule/Tempo- rary override and Permanent Hold mode. Icon Mode Explanation... -
Page 25: Boost - Set Point
Unisenza Plus - Thermostat Installation and user manual Boost - Set point This mode allows you to temporarily change the set point of a schedule for a certain period of time. To activate the Boost mode, proceed as follows: Once the operating period established for the Boost mode has elapsed, the device will auto- matically return to operating with the last mode that was previously selected. -
Page 26: Change System Mode (Heating&Cooling)
Unisenza Plus - Thermostat Installation and user manual Change system mode (Heating&Cooling) HEAT COOL Cool mode is available only when SYS TYPE is HEAT+COOL. Press Menu/Back button to return to main screen. Change Hot water operation mode (available only when SYS TYPE is “HEAT+DHW”) SYS MODE HOT WATER SCHEDULE... -
Page 27: Schedule Setting
Unisenza Plus - Thermostat Installation and user manual Schedule setting Schedule for different mode (HEATING, COOLING and HOT WATER) can be defined separately here. Three schedule program are available (7 DAY / SINGLE / 5+2 DAY). SYS MODE SCHEDULE USER SET ADMIN SET LANGUAGE When SYS MODE is... - Page 28 Unisenza Plus - Thermostat Installation and user manual HOUR + or - MINUTES TEMPERATURE + or - + or - Repeat above procedure to set up to 6 time slot. Press Menu/Back button to return to main screen.
- Page 29 Unisenza Plus - Thermostat Installation and user manual For hot water On/Off 5 + 2 DAYS 5 + 2 DAYS 7 DAYS SINGLE DAY HOUR + or - MINUTES HOUR + or - + or -...
-
Page 30: Key Lock
Unisenza Plus - Thermostat Installation and user manual MINUTES + or - Repeat above procedure to set up to 3 time slot. Press Menu/Back button to return to main screen. Key lock Lock the keypad KEYPAD LOCKED Unock the keypad KEYPAD UNLOCKED... -
Page 31: User Setting
Unisenza Plus - Thermostat Installation and user manual User setting SYS MODE SCHEDULE USER SET ADMIN SET LANGUAGE The editable settings are: Time 12hr or 24hr display format Clock Set hour and minute Date Set year, month and day TIMEDATE Daylight saving time on or off Time disp Display time on device or not... -
Page 32: Admin Setting
Unisenza Plus - Thermostat Installation and user manual Admin setting SYS MODE SCHEDULE USER SET ADMIN SET LANGUAGE The editable settings are: Select temperature display interval at 0.5°C(1°F) or 0.1°C Temp disp (0.2°F). Select valve protection mode On or Off. If the relay is not turned On for a week, the thermostat will turn On the heat- Vlv prot ing to move the actuators for less than 3 minutes time, to... - Page 33 Unisenza Plus - Thermostat Installation and user manual Network Join the thermostat to the gateway. Join Network Disconnect the thermostat from the gateway. Unjoin Network Identify which gateway is connected. Identify Pair Connect Show number of paired device. State Pair Select EU-ID (display the last 6 digit) of a Unisenza Plus Identify device to identify.
-
Page 34: Language Setting
Unisenza Plus - Thermostat Installation and user manual Language setting SYS MODE SCHEDULE USER SET ADMIN SET LANGUAGE CHOICE POSSIBILITY: ENGLISH FRENCH SPANISH GERMAN DUTCH ROMANIAN POLISH CZECH Protection High temperature limiting If the room temnperature exceeds 41°C, all heating outputs will be turned off. Temperature sensing error If there is any sensor error on room temperature measurement, the thermostat will notify all related output devices to turn Off. -
Page 35: Error Code Display
Unisenza Plus - Thermostat Installation and user manual Error code display An error code will be displayed on the text bar when error is detected. When single error is detected, the error code is displayed directly on the text bar. When multiple errors are detected, text bar displays XX ERRORS while XX is the total number of error detected. -
Page 36: Maintenance
The Unisenza Plus Thermostat upgrades its software automatically when there is a newer version software available from the server. A valid connection to the gateway and the Internet is needed to allow the Unisenza Plus Thermostat to download the new software image. All device functionality is maintained during the download and the update process, until the device restarts to update the new software. -
Page 37: 12 Manual Download And Updates
Unisenza Plus - Thermostat Installation and user manual 12 MANUAL DOWNLOAD AND UPDATES Due to the requirement for continuous improvement, we constantly update the user manuals of our systems. We therefore invite you to periodically check whether the manual in your possession is always the latest written version. - Page 38 Unisenza Plus - Thermostat Installation and user manual...
- Page 39 Unisenza Plus - Thermostat Installation and user manual...
- Page 40 A PURMO GROUP BRAND Bulevardi 46 P.O. Box 115 FI-00121 Helsinki Finland www.purmogroup.com Every care has been taken in the creation of this document. No part of this document may be reproduced without the express written consent of Purmo Group. Purmo Group accepts no responsibility for any inaccuracies or consequences arising from the use or misuse of the information contained herein.
