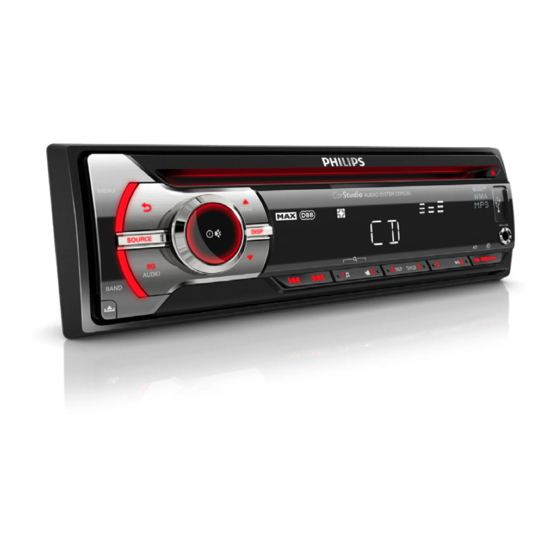

Philips CMB2102/55 User Manual

Philips CMB2102/55 User Manual

Advertisement

Quick Links

Always there to help you
Register your product and get support at
www.philips.com/welcome
CEM2101
Question?
Contact
Philips
User manual

Advertisement

Table of Contents
loading

Summary of Contents for Philips CMB2102/55

  • Page 1 Always there to help you Register your product and get support at www.philips.com/welcome CEM2101 Question? Contact Philips User manual...
  • Page 3: Table Of Contents

    Contents 1 Important 7 Adjust system settings Safety Turn beep sound on/off Notice Turn demo mode on/off Dimmer Dance 2 Your car audio system Reset Introduction What's in the box 8 Additional information Overview of the main unit Detach the front panel Replace fuse 3 Get started Remove the unit...
  • Page 4: Important

    Any changes or modifications made to this caused by failure to follow instructions, the device that are not expressly approved by warranty does not apply. Philips Consumer Lifestyle may void the user’s • This apparatus is designed for negative authority to operate the equipment. ground (earth) 12 V DC operation only.
  • Page 5 Microsoft Corporation in the United States and/or other countries. This apparatus includes this label: 2013 © Koninklijke Philips Electronics N.V. All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
  • Page 6: Your Car Audio System

    Main unit (with a sleeve) Congratulations on your purchase, and b Front panel welcome to Philips! To fully benefit from the c Trim plate support that Philips offers, register your product at www.philips.com/welcome. d Carrying case for front panel e Rubber cushion Introduction f Screw x 1 pc...
  • Page 7: Overview Of The Main Unit

    Overview of the main unit e ZONE a SOURCE • Select tuner band. • Select audio source. • Select MP3/WMA folder. b MENU • Switch music listening zone. • Access system menu. • Eject disc. • Return to previous menu. • USB socket.
  • Page 8: Get Started

    Always follow the instructions in this chapter in sequence. • Select preset radio station No.6. If you contact Philips, you will be asked for the • Start play. model and serial number of your apparatus. The • Pause or resume play.
  • Page 9 Note on the power supply lead (yellow) • When you connect other devices to this apparatus, ensure that the rating of the car circuit is higher than the total fuse value of all the connected devices. Notes on speaker connection •...
  • Page 10 Remove the mounting sleeve with the supplied disassembly tools. Connector Connect to Antenna ANTENNA Rear right REAR LINE OUT R speaker (Socket) Rear left speaker REAR LINE OUT L (Socket) OE Remote OE REMOTE (Purple) • The pin arrangement for the ISO connectors depends on the type of vehicle you drive.
  • Page 11: Turn On

    Reconnect the negative terminal of the car battery. Attach the front panel Attach the trim plate. Insert the right side of the panel in the chassis until it is correctly engaged. Press the left side of the panel until the mechanism locks it into place.
  • Page 12: Select Country/Region

    View clock Select country/region In any mode, press and hold MAX SOUND Note until the clock is displayed. • Select correct country/region for this unit, otherwise • Press any key to cancel the clock the unit can not work properly. display.
  • Page 13: Listen To Radio

    4 Listen to radio Store stations automatically In Radio mode, press and hold DBB until [STORE - - -] is displayed. Press to confirm. » The six strongest stations of the Tune to a radio station selected band are saved in preset channel automatically.
  • Page 14: Play Audio Files

    5 Play audio files Play from USB Note Note • Ensure that the USB device contains playable music. • Ensure that the disc or device contains playable files. Insert the USB device Slide the USB socket cover marked Play a disc the left. Note Insert the USB device into the USB socket. »...
  • Page 15: Connect External Sound Source

    • [SHUF OFF]: cancel shuffle play. Rotate to navigate through all folders. Press to access the selected folder. » The unit starts playing the first song Connect external sound from the selected folder automatically. source Connect the external sound source to • To go back to upper level of a folder, press MP3 LINK socket with a 3.5 mm cable.
  • Page 16: Adjust Sound

    • To resume sound, press again. Switch music listening zone Turn Dynamic Bass Boost Philips’ innovative Zone technology enables (DBB) on/off driver or passengers to enjoy music with the best speakers balance and experience more vivid spacial effect as the artist is intended to Press DBB and the current setting is create.
  • Page 17: Other Sound Settings

    7 Adjust system Other sound settings settings You can also adjust the preset EQ / AUDIO settings. Press EQ / AUDIO for 3 seconds. Press repeatedly to select the item to be adjusted: Turn beep sound on/off • [BAS] (bass) range: -7 to +7. • [TRE] (treble) range: -7 to +7.
  • Page 18: Dance

    8 Additional Rotate to select a setting: • [DIMM HIGH] (dimmer high) information • [DIMM LOW] (dimmer low) Dance You can turn on or off the spectrum on the Detach the front panel LCD display. Press MENU. You can detach the front panel to deter theft. repeatedly until [DANCE] is Press Press...
  • Page 19: Remove The Unit

    Note • If the new fuse gets damaged again, there may be an internal malfunction. Consult your Philips dealer. Remove the unit You can remove the unit from the dashboard. Detach the front panel. Pull out the unit by using the disassembly...
  • Page 20: Product Information

    9 Product information Note • Product information is subject to change without prior notice. Power supply 12 V DC (11 V - 16 V), negative ground Fuse 15 A Suitable speaker impedance 4 - 8 Maximum power output 50 W x 4 Continuous power output 21 W x 4 RMS (4 10% T.H.D.)
  • Page 21: Troubleshooting

    If the problem remains • WMA files in Lossless format unsolved, go to the Philips web site (www. philips.com/support). When you contact Philips, ensure that your apparatus is nearby and the model number and serial number are available.
  • Page 22: Glossary

    11 Glossary • Ensure that the CD is not encoded with copyright protection technologies. The CD skips tracks • Ensure that the CD is not damaged or dirty. • Ensure that random mode is deactivated. A file format with a sound data compression Disc cannot be ejected system.
  • Page 24 Specifications are subject to change without notice © 2013 Koninklijke Philips Electronics N.V. All rights reserved. CEM2101_55_UM_V1.0...
  • Page 25 Always there to help you Register your product and get support at www.philips.com/welcome CSP6911 Question? Contact Philips User manual...
  • Page 27 Contents Important Safety Notice Your car stereo speakers Introduction What’s in the box Installation Option 1: Mount on door (front or rear) Option 2: Mount on rear tray Product information Troubleshooting ES-AR...
  • Page 28: Important

    Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. 2013 © Koninklijke Philips Electronics N.V. All rights reserved.
  • Page 29: Your Car Stereo Speakers

    Measure the depth of the area Congratulations on your purchase, and where you are to mount the speaker, and welcome to Philips! To fully benefit from the ensure that the speaker does not obstruct any support that Philips offers, register your product other components of the car.
  • Page 30 Mark the cut-off hole and the 4 bolt holes. Note • Match the “left”, “right”, “+” and “-” terminals correctly. Revised polarity may degrade sound quality. • Two 4-ohm speakers, wired in stereo, present a 8 ohm load to each channel of the amplifier. Most two channel amplifiers work well in this configuration.
  • Page 31: Option 2: Mount On Rear Tray

    4 Product Option 2: Mount on rear tray information Note • Product information is subject to change without prior notice. Model CSP6911 Speaker type 16x24cm, You can also mount the speakers into the 3-way triaxial surface of the rear tray. speaker Follow the steps in section “Option 1: Mount in RMS power (Watts)
  • Page 32: Troubleshooting

    To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this apparatus, go to the Philips web site (www. philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.
  • Page 33 ES-AR...
  • Page 34 Specifications are subject to change without notice © 2013 Koninklijke Philips Electronics N.V. All rights reserved. CSP6910_UM_55_UM_V3.0...
