PRODUCT GUIDE

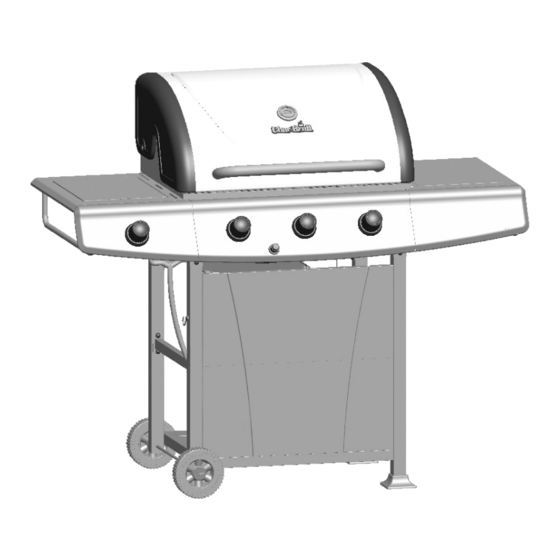

MODEL 463210510
IMPORTANT: Fill out the product record information below.
Serial Number
See rating label on grill for serial number.
Date Purchased
For support and to register your
grill, please visit us at
www.charbroil.com
If you have questions or need
assistance during assembly,
please call 1-800-241-7548.
Estimated assembly time: 35-40 minutes
Assembly instructions © 2009
®
11/04/09 • 261800303446
