Char-Broil 463210511 Product Manual

Char-broil charcoal grill user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Caldera®; Charcoal2Go®; Char-Broil®; American Gourmet®;
Bandera®; Brush Hawg®; CB 940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; Everybody Grills®; Grill 2 Go®; Grill 2 Go® Express®; Grill Lovers®; Infrared
Grilling That's All About U®; Keepers of the Flame®; Magneto®; New Braunfels Smoker Company®; Patio Bistro®; Patio Caddie®; Patio Kitchen®; Pro-Sear®;
RED®; Quantum®; Santa Fe®; Sear and Grill®; Sierra®; Signature Series®; Sure2Burn®; The Big Easy®; U®; Wild West Tradition®; and the following marks:
The following are trademarks of W.C. Bradley Co.:America's Legendary Barbeque Company™; Advantage Series™; Auto-Clean™;Chef Tested™; Commercial
Series™; Designer Series™;; Diamond Flame™; Double Chef™; Everybody Outside™; FastStart™; FlavorMaster™; Front Avenue™; Grill 2 Go® Advantage™;
Grill 2 Go® Ice™; Hog and Yard Bird™; H20 Smoker™; Infrared. Grilling's Juicy Little Secret™; Incredible Taste. Infallible Results™; Infrared Inside™; Let's Grill
Something Together™; Longhorn™;; Precision Flame™; Quick2Burn™; QuickSet™; Ready When You Are™; Season, Set, And Savor™; Sizzle On The Grill™;
SureFire™; Torchfork™; Trentino™; Universal Grill Parts™; You Bring the Party™
© 2010 Char-Broil, LLC Columbus, GA 31902
PRODUCT GUIDE

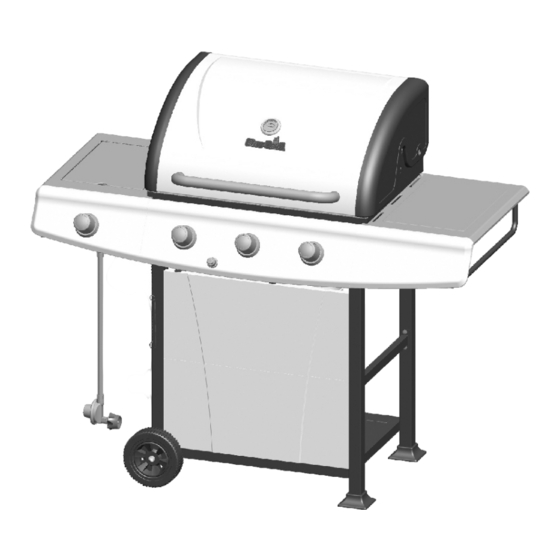

MODEL 463210511
IMPORTANT: Fill out the product record information below.
Serial Number
Date Purchased
For support and to register your
grill, please visit us at
www.charbroil.com
If you have questions or need
assistance during assembly,
please call 1-800-241-7548.
Estimated assembly time: 35-40 minutes
®
TEC™ is a trademark of Tec Infrared Grills.
Printed in China
See rating label on grill for serial number.
®
Assembly instructions © 2010
11/09/10 • G560-001-040801

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 463210511 and is the answer not in the manual?

Questions and answers

Related Manuals for Char-Broil 463210511

Summary of Contents for Char-Broil 463210511

  • Page 1 The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Caldera®; Charcoal2Go®; Char-Broil®; American Gourmet®; Bandera®; Brush Hawg®; CB 940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; Everybody Grills®; Grill 2 Go®; Grill 2 Go® Express®; Grill Lovers®; Infrared Grilling That’s All About U®;...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS For Your Safety ........2-3 Grilling Guide.

  • Page 3: California Proposition

    WARNING CALIFORNIA PROPOSITION 65 1. Combustion by-products produced when using this product contain chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm. 2. This product contains chemicals, including lead and lead compounds, known to the State of California to cause cancer, birth defects or other reproductive harm.

  • Page 4: Pre-Heating Grill

    GRILLING GUIDE – Getting Started First Time Use Read your Assembly Manual and ensure the grill is put together properly. Remove all Point-of-Purchase advertising material from all grill surfaces before first use. We recommend operating your grill on its highest setting for 15-20 minutes prior to your first use. This aids in removing the oils used during manufacturing.
  • Page 5 GRILLING GUIDE – Grilling 101 Outdoor grilling is really quite simple. You'll succeed with burgers, dogs, or steaks usually on your very first try. With experience, you will learn how to work with your grill, creating more imaginative meals all the time. This knowledge makes up the art of grilling.
  • Page 6 GRILLING GUIDE – Tips & Tricks Cooking on your new grill is a hands-on experience, and it is recommended to remain outside with your grill while cooking. Grilling can be affected by many external conditions. In cold weather, you will need more heat to reach an ideal cooking temperature, and grilling may take longer.

  • Page 7: Grilling Guide

    GRILLING GUIDE – Cleaning Your Grill Why Clean? We've all heard the saying, “an ounce of prevention is worth a pound of cure.” This is great advice when it comes to keeping your grill clean. Routine Care Periodic cleaning of this grill is necessary, as grill fires can occur when grease and food debris collect in the bottom of the grill.

  • Page 8: Use And Care

    USE AND CARE DANGER • NEVER store a spare LP cylinder under or near the appliance or in an enclosed area. • Never fill a cylinder beyond 80% full. • An over filled or improperly stored cylinder is a hazard due to possible gas release from the safety relief valve.
  • Page 9 LP Cylinder Exchange •Many retailers that sell grills offer you the option of replacing your empty LP cylinder through an exchange service. Use only those reputable exchange companies that inspect, precision fill, test and certify their cylinders. Exchange your cylinder only for an OPD safety feature-equipped cylinder as described in the "LP Cylinder"...
  • Page 10 Hold coupling nut and regulator as shown for proper connection to LP cylinder valve. 6.Turn the coupling nut clockwise and tighten to a full stop. The regulator will seal on the back-check feature in the LP cylinder valve, resulting in some resistance. An additional one-half to three-quarters turn is required to complete the connection.
  • Page 11 WARNING For Safe Use of Your Grill and to Avoid Serious Injury: • Do not let children operate or play near grill. • Keep grill area clear and free from materials that burn. • Do not block holes in sides or back of grill. •...

  • Page 12: Match-Lighting

    Ignitor Lighting (continued) 8. For grills equipped with ELECTRONIC IGNITION at each burner: Repeat steps 4 through 6 to light each burner. 9. Once each burner has ignited, turn knobs to desired setting. WARNING Turn controls and gas source or tank OFF when not in use.

  • Page 13: Spider Alert

    CAUTION SPIDER ALERT! SPIDER AND WEBS INSIDE BURNER TUBE If you notice that your grill is getting hard to light or that the flame isn’t as strong as it should be, take the time to check and clean the venturi’s. VALVE CONTROL PANEL In some areas of the country, spiders or small insects have been...

  • Page 14: Limited Warranty

    LIMITED WARRANTY This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*.

  • Page 15: Parts List

    PARTS LIST Qty Description FIREBOX TUBE BURNER, F/ ELECTRODE TUBE BURNER, NO ELECTRODE ELECTRODE, MAIN BURNER CARRY OVER TUBE HEAT TENT, VAPORIZER BAR TOP LID, OUTER TOP LID, INNER INSERT TOP LID, LEFT END CAP TOP LID, RIGHT END CAP LOGO PLATE TEMPERATURE GAUGE BEZEL, F/ TEMPERATURE GAUGE...

  • Page 16: Parts Diagram

    PARTS DIAGRAM...

  • Page 17: Assembly

    ASSEMBLY Place legs as shown.NOTE:Left leg assembly has large holes on ends of legs. Attach center brace, left front and left rear leg with 1/4-20x1/2" screws,7mm Flat Washer and 7mm Lock Washer on each side. Attach upper brace, left leg assembly which was assembled previously with 1/4-20x1/2" screws,7mm Flat Washer and 7mm Lock Washer on each side.
  • Page 18 Attach upper and lower front panel to cart with 1/4-20x1/2" screws, 7mm Flat Washer and ASSEMBLY 7mm Lock Washer on each side. Attach upper front panel to lower front panel with #10-24x1/2" screws and #10-24 hex nuts. Qty: Qty: 1/4-20x1/2" #10-24x1/2"...
  • Page 19 Stand cart upright. Attach tank heat shield to cart back brace with #10-24x1/2" screws. Qty: 3 #10-24x1/2" Machine Screw Place grease tray to the cart assembly as shown. Insert tank retainer to the holes from the bottom shelf. Attach with a hitch pin. Tank Heat Shield Grease Tray Tank Retainer,Wire Form...
  • Page 20 This step requires two people to lift and position grill head onto cart. ASSEMBLY Carefully lower the grill head onto the cart. Make sure the regulator hose is hanging outside the cart. Attach with 1/4-20x1/2" screws. Qty: 4 1/4-20x1/2" Machine Screw Mount fascia onto side shelf using three #10-24x1/2"...
  • Page 21 Attach right side shelf to the firebox with 1/4-20x1/2" screws on the upper holes. ASSEMBLY Attach right fasica to control panel with #10-24x1/2" screws. Qty: 1/4-20x1/2" Machine Screw Qty: #10-24x1/2" Machine Screw Attach right towel bar to the rear of right side shelf with #10-24x1/2" screws and #10-24 hex nuts. Attach right towel bar to the front of right fascia with #8-32x3/8"...
  • Page 22 Repeat step 8(A)on left side shelf. Tighten the pre-installed screws to the left side shelf (B) Attach left side shelf to firebox with 1/4-20x1/2” screws on the upper holes.Attach left fascia to control panel with #10-24x1/2” screws. Position valve behind fascia and line up holes (C). Insert (1) of the #8-32x3/8”...
  • Page 23 Attach left towel bar to the rear of left side shelf with #10-24x1/2” screws and #10-24 hex nuts. Attach left towel bar to left fascia with #8-32x3/8” screw and #8-32 het nuts (A). Place grate onto sideburner shelf (B). Place control knob onto sideburner valve stem (C). Control Knob Place heat tents over burners as shown.
  • Page 24 Place cooking grates onto grate rests. Place warming grid onto the top of the firebox. Vertical legs insert into the slots on the upper ledge of the firebox. Slot Unscrew ignitor cap and place AA battery into ignitor slot with positive end (+) facing outward. Screw ignitor cap onto ignitor. Warming Grid Cooking Grate Ignitor Cap...
  • Page 25 Hang grease cup clip from bottom of grease tray and place grease cup into grease cup clip. Grease Tray Grease Cup Clip Grease Cup LP tank is sold separately. Use only with an OPD (over-fill protection device) equipped LP tank. Fill and leak check before attaching to grill and regulator.

  • Page 26: Troubleshooting

    EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department. Emergencies Possible Cause Gas leaking from • Damaged hose. cracked/cut/burned hose. Gas leaking from LP • Mechanical failure due to rusting or cylinder.
  • Page 27 Troubleshooting (continued) Problem Possible Cause Burner(s) will not light ELECTRONIC IGNITION: using ignitor. • No spark, no ignition noise. (See Electronic Ignition Troubleshooting also) • No spark, some ignition noise. • Sparks, but not at electrode or at full strength. Burner(s) will not •...

  • Page 28: Troubleshooting - Electronic Ignition

    Troubleshooting - Electronic Ignition Problem (Ignition) Possible Cause SECTION I No sparks appear at • Battery not installed any electrodes when properly. Electronic Ignition Button is pressed; no noise can • Dead battery. be heard from spark module. • Button assembly not installed properly.
  • Page 29 NOTES...
  • Page 30 NOTES...

  • Page 31: Registration Card

    Warranty Registration Department P.O. Box 1240 Columbus, GA 31902-1240...
