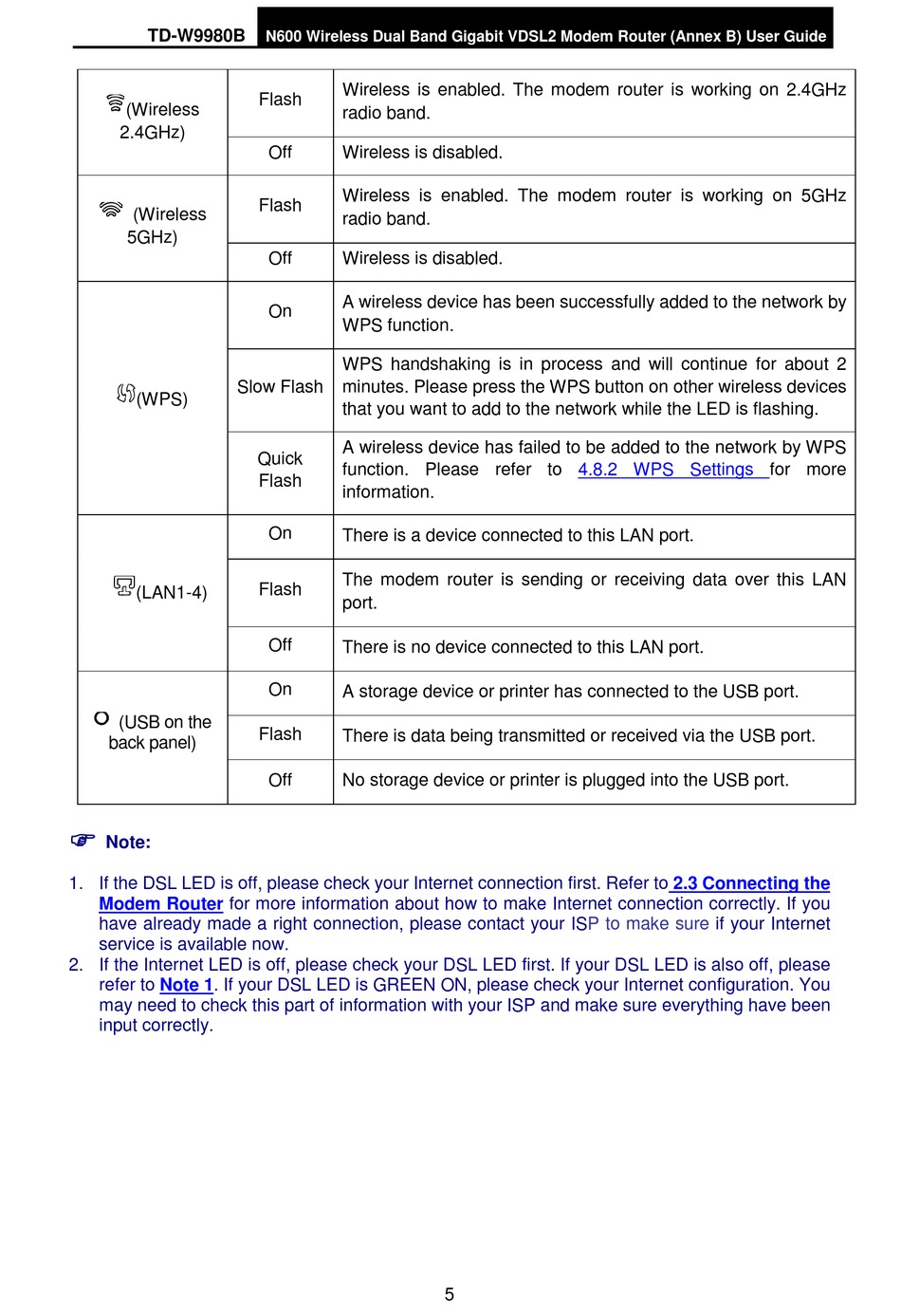

TP-Link TD-W9980B User Manual page 15

TD-W9980B
(Wireless
2.4GHz)
(Wireless
5GHz)
Slow Flash
(WPS)
(LAN1-4)
(USB on the
back panel)

Note:
1. If the DSL LED is off, please check your Internet connection first. Refer to
Modem Router for more information about how to make Internet connection correctly. If you
have already made a right connection, please contact your
service is available now.
2. If the Internet LED is off, please check your DSL LED first. If your DSL LED is also off, please
refer to Note 1. If your DSL LED is GREEN ON, please check your Internet configuration. You
may need to check this part of information with your ISP and make sure everything have been
input correctly.
N600 Wireless Dual Band Gigabit VDSL2 Modem Router (Annex B) User Guide
Wireless is enabled. The modem router is working on 2.4GHz
Flash
radio band.
Off Wireless is disabled.
Wireless is enabled. The modem router is working on 5GHz
Flash
radio band.
Off Wireless is disabled.
A wireless device has been successfully added to the network by
On
WPS function.
WPS handshaking is in process and will continue for about 2
minutes. Please press the WPS button on other wireless devices
that you want to add to the network while the LED is flashing.
A wireless device has failed to be added to the network by WPS
Quick
function. Please refer to
Flash
information.
On
There is a device connected to this LAN port.
The modem router is sending or receiving data over this LAN
Flash
port.
Off
There is no device connected to this LAN port.
On
A storage device or printer has connected to the USB port.
Flash
There is data being transmitted or received via the USB port.
Off No storage device or printer is plugged into the USB port.
4.8.2 WPS Settings
ISP to make sure
5
for more
2.3 Connecting the
if your Internet
