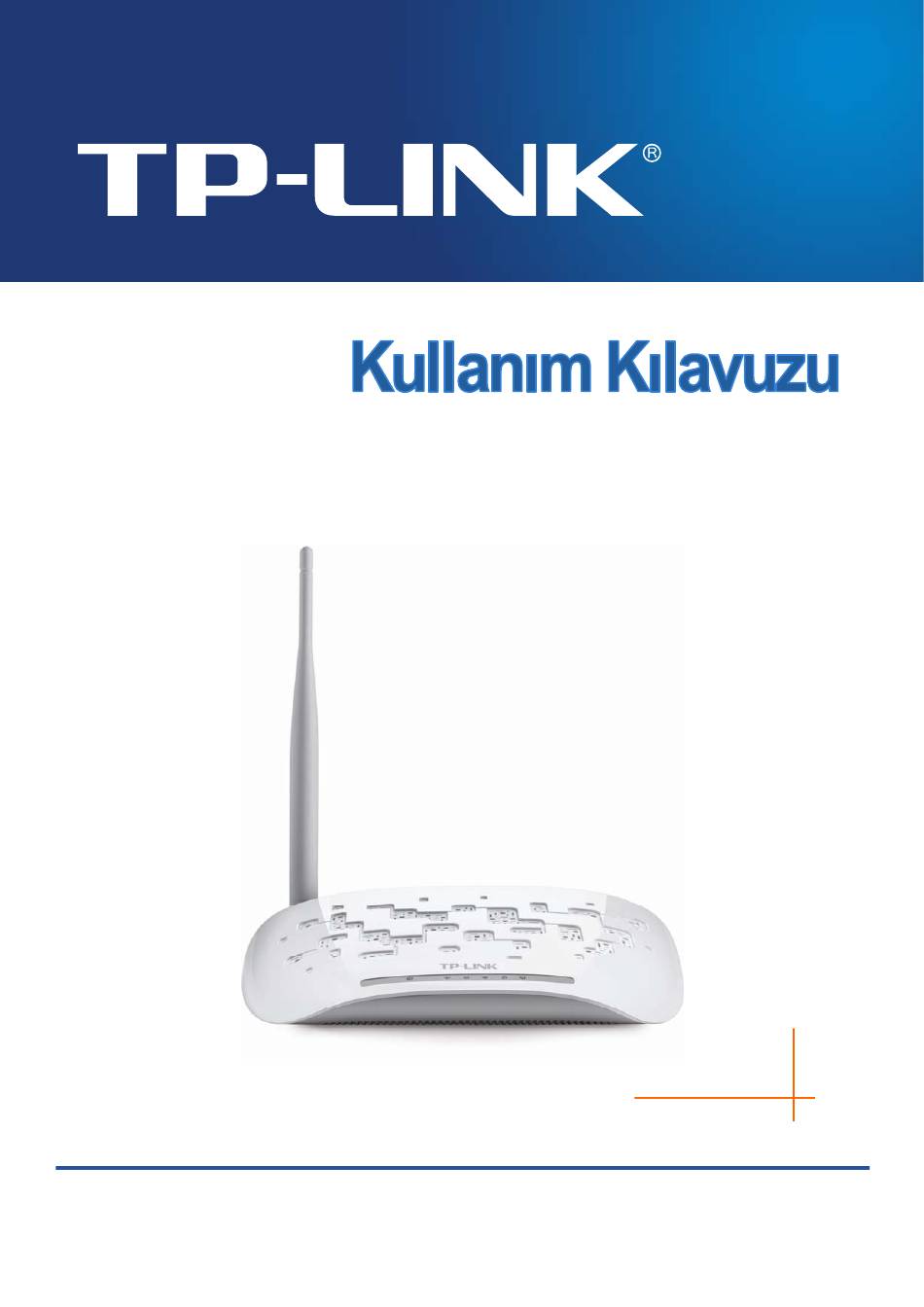

  • Page 1 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Rev: 2.0.0 1910010736...
  • Page 2 TECHNOLOGIES CO., LTD tescilli markasıdır. Diğer markalar ve ürün adları, sahiplerinin markaları veya tescilli markalarıdır. TP-LINK TECHNOLOGIES CO., LTD izni olmadan, özelliklerin herhangi bir kısmı hiç bir şekilde yeniden üretilemez veya tercüme, değiştirme veya uyarlama gibi herhangi bir türev oluşturma amacıyla kullanılamaz.
  • Page 3 FCC RF Radyasyona Maruz Kalma Bildirimi Bu ekipman, kontrolsüz bir çevre için belirlenen FCC RF maruz kalma sınırları ile uyumludur. Bu cihaz ve anteni, başka bir anten veya vericiyle aynı yere yerleştirilmemeli ya da birlikte çalıştırılmamalıdır. "FCC RF maruz kalma uyumluluk gereksinimleriyle uyması için, bu izin sadece Mobil Konfigürasyonlara verilmiştir.
  • Page 4 TP-LINK TECHNOLOGIES CO., LTD UYGUNLUK BEYANI Şu ekipman için: Ürün Tanımı: 150Mbps Kablosuz N ADSL2+ Modem Router Model No.: TD-W8151N Ticari marka: TP-LINK Yukarıdaki ürünlerin, Konsey Yönetmelikleri kapsamında ürün için uygulanabilir olan tüm teknik düzenlemeleri karşıladığını kendi sorumluluğumuzda beyan ederiz: Yönetmelikler 1999/5/EC, Yönetmelikler 2004/108/EC, Yönetmelikler 2006/95/EC, Yönetmelikler...

  • Page 5: Table Of Contents

    İÇERİK Paket İçeriği ......................1 Bölüm 1. Giriş ...................... 2 Ürün İnceleme ..................2 Başlıca Özellikler .....................2 Teamüller ....................3 Bölüm 2. Donanım Kurulumu ................4 Ön Panel ....................4 Arka Panel.....................5 Kurulum Ortamı ..................6 Yönlendiricinin Bağlanması ..............7 Bölüm 3. Hızlı Kurulum Kılavuzu................ 9 Bilgisayar Yapılandırması..............9 Oturum Aç...
  • Page 6 4.5.2 Filtre......................56 4.5.3 SNMP ...................... 65 4.5.4 UPnP ....................... 65 4.5.5 DDNS....................... 66 4.5.6 CWMP ..................... 66 Bakım ....................67 4.6.1 Yönetim....................68 4.6.2 Saat Dilimi....................68 4.6.3 Firmware ....................70 4.6.4 Yeniden Başlatma..................72 4.6.5 Tanılama ....................72 Yardım....................73 Ek A: Özellikler......................

  • Page 7: Paket İçeriği

    150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Paket İçeriği The following contents should be found in your package: One TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router One Power Adapter for TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Quick Installation Guide One RJ45 cable Two RJ11 cables...

  • Page 8: Bölüm 1. Giriş

    The device is designed to provide a simple and cost-effective ADSL Internet connection for a private Ethernet or IEEE 802.11n/ IEEE 802.11g/ IEEE 802.11b wireless network. The TD-W8151N connects to an Ethernet LAN or computers via standard Ethernet ports. The ADSL connection is made using ordinary telephone line with standard connectors. Multiple workstations can be networked and connected to the Internet using a single Wide Area Network (WAN) interface and single global IP address.

  • Page 9: Teamüller

    Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List). 1.2 Teamüller The Router or device mentioned in this User Guide stands for TD-W8151N without any explanations. Parameters provided in the pictures are just references for setting up the product, which may differ...

  • Page 10: Bölüm 2. Donanım Kurulumu

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Bölüm 2. Donanım Kurulumu 2.1 Ön Panel Figure 2-1 The LEDs locate on the front panel. They indicate the device’s working status. For details, please refer to LED Explanation. LED Açıklamaları:...

  • Page 11: Arka Panel

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Note: 1. If the ADSL LED is off, please check your Internet connection first. Refer to 2.4 Connecting the Modem Router for more information about how to make Internet connection correctly. If you have already made a right connection, please contact your ISP to make sure if your Internet service is available now.

  • Page 12: Kurulum Ortamı

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Method one: With the Router powered on, use a pin to press and hold the Reset button for at least 5 seconds. And the Router will reboot to its factory default settings.

  • Page 13: Yönlendiricinin Bağlanması

    Method one: Plug one end of the twisted-pair ADSL cable into the ADSL LINE port on the rear panel of TD-W8151N, and insert the other end into the wall socket. Method two：You can use a separate splitter. External splitter can divide the data and voice, and then you can access the Internet and make calls at the same time.
  • Page 14 Plug one end of the twisted-pair ADSL cable into the ADSL LINE port on the rear panel of TD-W8151N. Connect the other end to the MODEM port of the external splitter. Step 2: Connect the Ethernet cable. Attach one end of a network cable to your computer’s Ethernet port or a regular hub/switch port, and the other end to the LAN port on the TD-W8151N.
  • Page 15 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 2-4...

  • Page 16: Bölüm 3. Hızlı Kurulum Kılavuzu

    Hızlı Kurulum Kılavuzu 3.1 Bilgisayar Yapılandırması After you directly connect your PC to the TD-W8151N or connect your adapter to a Hub/Switch which has connected to the Router, you need to configure your PC’s IP address. Follow the steps below to configure it.
  • Page 17 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 3-2 Step 3: Select Genel tab, highlight Internet Protocol (TCP/IP), and then click the Özellikler button.
  • Page 18 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 3-3 Step 4: Configure the IP address as Figure 3-4 shows. After that, click Tamam.
  • Page 19 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 3-4 Note: You can configure the PC to get an IP address automatically, select “Obtain an IP address automatically” and “Obtain DNS server address automatically” in the screen above. Now, you can run the Ping command in the command prompt to verify the network connection.

  • Page 20: Oturum Aç

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu If the result displayed is similar to the screen shown below, it means that your PC has not connected to the Router. Figure 3-6 You can check it follow the steps below:...
  • Page 21 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 3-7 Step 1: Select the Hizli Kurulum tab, then click SİHİRBAZI ÇALIŞTIR, and you will see the next screen. Click the İLERİ button. Figure 3-8 Step 2: Configure the time for the Router, and then click the İLERİ button.
  • Page 22 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 3-10 Step 4: Configure the following options provided by your ISP: Kullanıcı adı, Şifre, VPI, VCI and Bağlantı Tipi. Then click İLERİ. Figure 3-11 Step 5: Configure the rules for the Wlan, and click İLERİ.
  • Page 23 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 3-12 Note: If the Access Point is Etkin, the wireless function will be available even without the external antenna because of an additional printed antenna. To adopt the wireless security protection measures, please refer to Section 4.3.3...

  • Page 24: Bölüm 4. Yazılım Yapılandırması

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Bölüm 4. Yazılım Yapılandırması This User Guide recommends using the “Quick Installation Guide” for first-time installation. For advanced users, if you want to know more about this device and make use of its functions adequately, maybe you will get help from this chapter to configure the advanced settings through the Web-based Utility.

  • Page 25: Sistem Logları

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-2 4.1.2 Sistem Logları Choose “Durum→Sistem Logları” menu, and you will be able to query the logs of the Router.

  • Page 26: İstatistikler

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-3 The Router can keep logs of all traffic. You can query the logs to find what happened to the Router. Click the LOGLARI TEMİZLE button to clear the logs.
  • Page 27 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-4 Arayüz: You can select Ethernet, ADSL and WLAN to view the corresponding network traffic over different ports. Select Ethernet, and you will see the statistics table as below. Statistics Table: İletilen Paketler...

  • Page 28: Hızlı Kurulum

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Select ADSL, and you will see the statistics table as below. Statistics Table: İletilen toplam PDU The total PDUs transmitted over the ADSL port. İletim The total errors occurred over the ADSL port when data İstatistikler...

  • Page 29: Arayüz Ayarları

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu 4.3 Arayüz Ayarları Choose “Arayüz Ayarları”, you can see the next submenus: Internet, LAN and Kablosuz. Figure 4-5 Click any of them, and you will be able to configure the corresponding function.
  • Page 30 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP. You need to activate the VC to take effect. For PVCs management, you can use ATM QoS to setup each PVC traffic line's priority.
  • Page 31 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Enkapsülasyon: Select the encapsulation mode for the Dynamic IP Address, you can leave it default. NAT: Select this option to Enable/Disable the NAT (Network Address Translation) function for this VC. The NAT function can be activated or deactivated per PVC basis.
  • Page 32 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-8 Note: Each IP address entered in the fields must be in the appropriate IP form, which is four IP octets separated by a dot (x.x.x.x), such as 192.168.1.100. The Router will not accept the IP address if it is not in this format.
  • Page 33 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-9 Servis Adı: Enter a name to mark current connection, or you can leave it blank. Kullanıcı Adı: Enter your username for your PPPoA/PPPoE connection. Şifre: Enter your password for your PPPoA/PPPoE connection.

  • Page 34: Lan

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu IP address provided by your ISP. For Static IP, you need to specify the IP address, Alt Ağ Maskesi and Ağ Geçidi IP Adresi. Varsayılan Rota: You should select Evet to configure the PVC as the default gateway to internet from this device.
  • Page 35 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-11 Router Yerel IP: These are the IP settings of the LAN interface for the device. These settings may be referred to as Private settings. You may change the LAN IP address if needed. The LAN IP address is private to your internal network and cannot be seen on the Internet.
  • Page 36 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu • Multicast: Select IGMP version, or disable the function. IGMP (Internet Group Multicast Protocol) is a session-layer protocol used to establish membership in a multicast group. The ADSL ATU-R supports IGMP version 1 (IGMP v1), IGMP v2. and IGMP v3 Select “Devre Dışı”...
  • Page 37 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu • Host Adı: Display the name of the DHCP client. • IP Adresi: Display the IP Address of the DHCP client. • MAC Adresi: Display the MAC Address of the DHCP client.

  • Page 38: Kablosuz

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-13 • DHCP Server IP for Relay Agent: Enter the DHCP server IP Address runs on WAN side. Note: If you select Devre Dışı, the DHCP function will not take effect.
  • Page 39 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-14...
  • Page 40 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Access Point Ayarları: These are the settings of the access point. You can configure the rules to allow wireless-equipped computers and other devices to communicate with a wireless network. • Access point: Select Etkin to allow wireless station to associate with the access point.
  • Page 41 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu • Kanal Bant Genişliği: Select the Bandwidth you want to use from the drop-down List. There are two options, “20 MHz” and “20/40 MHz”. If bigger bandwidth is selected, device could transmit and receive data with higher speed.
  • Page 42 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu WEP- 64Bits To configure WEP-64Bits settings, select the WEP-64Bits option from the drop-down list. The menu will change to offer the appropriate settings. WEP-64Bits is a data privacy mechanism based on a 64-bit shared key algorithm, as described in the IEEE 802.11g standard.
  • Page 43 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu WPA-PSK To configure WPA-PSK settings, select the WPA-PSK option from the drop-down list. The menu will change to offer the appropriate settings. WPA-PSK requires a shared key and does not use a separate server for authentication. PSK keys can be ASCII or Hex type.
  • Page 44 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu WPA-PSK/WPA2-PSK To configure WPA-PSK/WPA2-PSK settings, select the WPA-PSK/WPA2-PSK option from drop-down list. menu will change offer appropriate settings. WPA-PSK/WPA2-PSK requires a shared key and does not use a separate server for authentication.
  • Page 45 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-21 Method One: Step 1: Press the WPS button on the back panel of the Router or click WPS 'i başlat button in Figure 4-21. Step 2: Press and hold the WPS button of the adapter directly for 2 or 3 seconds.
  • Page 46 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Method Two: Step 1: Press the WPS button on the front panel of the Router or click WPS 'i başlat button in Figure 4-21. Step 2: For the configuration of the wireless adapter, please choose “Push the button on my access point”...
  • Page 47 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu The WPS Configuration Screen of Wireless Adapter PIN Kodu If the wireless adapter supports Quick Secure Setup and the PIN method, you can add it to the network by PIN with the following two methods. Click PIN Kodu, you will see the screen as shown below.
  • Page 48 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu The WPS Configuration Screen of Wireless Adapter Step 2: For the Router, keep PIN Kodu selected and enter the PIN Kodu of the wireless adapter in the field after Üye PIN kodu as shown below. Then click WPS 'i başlat.
  • Page 49 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu 00745659 The WPS Configuration Screen of Wireless Adapter Note: The default PIN Kodu of the Router can be found in its label or the WPS configuration screen as Figure 4-23. •...

  • Page 50: Gelişmiş Ayarlar

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu • Mac Adresi: Enter the MAC Address you wish to filter in the field. Note: For most users, it is recommended to use the default Wireless LAN Performance settings. Any changes made to these settings may adversely affect your wireless network. Under certain circumstances, changes may benefit performance.
  • Page 51 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-26 Click ROTA EKLEME button to add a new route in the next screen (shown in Figure 4-27). Figure 4-27 Hedef IP Adresi: This parameter specifies the IP network address of the final destination.

  • Page 52: Nat

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu 4.4.3 NAT Choose “Gelişmiş Ayarlar→NAT” menu, you can setup the NAT (Network Address Translation) function for the Router (shown in Figure 4-28). Figure 4-28 Sanal Devre: Enter Sanal Devre Index that you plan to setup for the NAT function.
  • Page 53 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-29 DMZ Host IP Adresi: Enter the specified IP Address for DMZ host on the LAN side. 4.4.3.2 Sanal Sunucu Choose “Gelişmiş Ayarlar→NAT→Sanal Sunucu” in Figure 4-28, you can configure the Virtual Server in the next screen.
  • Page 54 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-30 Kural Dizini: The Virtual server rule index for this VC. You can specify 10 rules in maximum. All the VCs with single IP will use the same Virtual Server rules.
  • Page 55 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Step 2: Select the Kural Dizini for the rule as shown in Figure 4-30. Step 3: Select the Uygulama you want from drop-down list, then the protocol and port number will be added to the corresponding field automatically, you only need to configure the IP address for the virtual server;...

  • Page 56: Qos

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Kural Dizini: Select the Virtual server rule index for this VC. You can specify 8 rules in maximum. Kural Tipi: There are four types: one-to-one, Many-to-One, Many-to-Many Overload and Many-to-Many No-overload.
  • Page 57 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-32 QoS: Select this option to Activate/Deactivate the IP QoS on different types (IP ToS and DiffServ). Özet: Click the button to view the configurations of QoS. Kural: Configure the rules for QoS. If the traffic complies with the rule, then the Router will take the corresponding action to deal with it.

  • Page 58: Vlan

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu • Uygulama: Select the application that the rule aimed at. • Fiziksel Portlar: Select the port whose traffic flow are controlled by the rule. • Hedef MAC Adresi & IP & Maske & Port Aralığı: Enter the IP information about the Destination host for the rule.
  • Page 59 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Virtual LAN (VLAN) is a group of devices on one or more LANs that are configured so that they can communicate as if they were attached to the same LAN, when in fact they are located on a number of different LAN segments.
  • Page 60 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-34 VLAN Dizini: Select the VLAN index for this VC. You can specify 8 groups in maximum. VLAN ID: This indicates the VLAN group. ATM Vcleri: Select the ATM VCs as members of VLAN, and if you leave the Tagged blank, the tag in frames will be deleted when transmitted from the VC.

  • Page 61: Adsl

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-35 PVID: Each physical port has a default VID called PVID (Port VID). PVID is assigned to untagged frames or priority tagged frames (frames with null (0) VID) received on this port.

  • Page 62: Erişim Yönetimi

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-36 ADSL Modu: Select the ADSL operation mode which your ADSL connection uses. ADSL Tipi: Select the ADSL operation type which your ADSL connection uses. 4.5 Erişim Yönetimi Choose “Erişim Yönetimi”, you can see the next submenus: Figure 4-37 Click any of them, and you will be able to configure the corresponding function.

  • Page 63: Filtre

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-38 ACL: If Etkin, the IP addresses which are contained in the Access Control List can access to the Router. If Devre Dışı, all IP addresses can access to the Router.
  • Page 64 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu 4.5.2.1 IP Filtresi Select IP/MAC Filtresi as the Filtre Tipi, and select IP as the Kural Tipi (shown in Figure 4-39), then you can configure the filter rules based on IP address. The filtering includes Giden and Gelen, the detailed descriptions are provided below.
  • Page 65 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu IP/MAC Filtresi Dizini: Select the Set index for the IP Filter entry. This index can match with six IP / MAC Filter Rule Indexes. Arayüz: Select the interface for the entry.
  • Page 66 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu To add an IP Address filtering entry: For example: If you desire to block E-mail received and sent by the IP address 192.168.1.7 on your local network; And wish to make the PCs with IP address 192.168.1.8 unable to visit the website of IP address 202.96.134.12, while other PCs have no limit.
  • Page 67 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Step 4: Select the Protokol as “TCP” and select the Eşleşmeyenler Kuralı as “Sonraki”. Step 5: Finally, click the KAYDET to save the entry. Step 6: Go to Step 2 to configure the next two rules: Block E-mail received by the IP address 192.168.1.7 on your local network;...
  • Page 68 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-40 Kural Tipi: Select MAC for the MAC Filter rule. Etkin: Select “Evet” to make the rule to take effect. MAC Adresi: Enter the MAC address for the rule. Eşleşmeyenler Kuralı: If the current rule can not match, and you select İlet, the router will skip the rule and transmit directly.
  • Page 69 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Step 1: Select the “IP/MAC Filtresi” as the Filtre Tipi Seçimi: Select the “MAC” as the Kural Tipi on the Filter screen (show in Figure 4-40). Then you can configure the specific rule for the example.
  • Page 70 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Select the IP/MAC Filtresi Dizini and IP/MAC Filtresi Kural Dizini to view or modify the entry. Select the IP/MAC Filtresi Dizini and IP/MAC Filtresi Kural Dizini to locate the specific rule, and then click the SIL button to delete the entry.
  • Page 71 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-42 Filtre Tipi Seçimi: Select the URL Filter for the next configuration. Etkin: Select “Evet” to make the rule to take effect. URL Dizin: Select the index for the URL Filter entry.

  • Page 72: Snmp

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu 4.5.3 SNMP Choose “Erişim Yönetimi→SNMP”, you can see the SNMP screen. The Simple Network Management Protocol (SNMP) is used for exchanging information between network devices. Figure 4-43 Get Ortak Parola: Set the password for the gelen Get and Get next requests from the management station.

  • Page 73: Ddns

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu UPnP: Activate or Deactivate the UPnP function. Only when the function is activated, can the UPnP take effect. Oto-Ayarlı: If you activate the function, then the UPnP network devices can automatically configure network addressing, announce their presence in the network to other UPnP devices and enable exchange of simple product and service descriptions.

  • Page 74: Bakım

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-46 CWMP: Select activate the CWMP function. URL: Enter the website of ACS which is provided by your ISP. Kullanıcı Adı & Şifre: Enter the User Name and password to login the ACS server.

  • Page 75: Yönetim

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-47 Click any of them, and you will be able to configure the corresponding function. 4.6.1 Yönetim Choose “Bakım→Yönetim”, you can set new password for admin in the screen (shown in Figure 4-48).
  • Page 76 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-49 Note: The ADSL Router built-in some NTP Servers, when the Router connects to the Internet, the Router will get the system time automatically from the NTP Server. You can also configure the NTP Server address manually, and then the Router will get the time from the specific Server firstly.

  • Page 77: Firmware

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Select Manuel olarak as the Synchronize time, you need to set the date and time corresponding to the current time. Figure 4-51 4.6.3 Firmware Choose “Bakım→Firmware”, you can upgrade the firmware of the Router in the screen (shown in Figure 4-52).
  • Page 78 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Step 2: Click the GÜNCELLEME button. Note: When you upgrade the router's firmware, you may lose its current configurations, so please back up the router’s current settings before you upgrade its firmware.

  • Page 79: Yeniden Başlatma

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu To restore the Router’s settings: Step 1: Click the Gözat button to locate the update file for the device, or enter the exact path in “New Romfile Location” field. Step 2: Click the GÜNCELLEME button to complete.

  • Page 80: Yardım

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-56 4.7 Yardım Choose “Yardım”, you can view the help information for configuration of any function.
  • Page 81 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Figure 4-57 Note: Click the tab, and you will be able to get the corresponding information.

  • Page 82: Ek A: Özellikler

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Ek A: Özellikler General ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5, Standards and Protocols IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, TCP/IP, PPPoA, PPPoE, SNTP, HTTP, DHCP, ICMP, NAT Safety &...

  • Page 83: Ek B: Sorun Giderme

    TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Ek B: Sorun Giderme T1. Routerın ayarlarını sıfırlayarak fabrika çıkış ayarlarına nasıl döndürebilirim? Router açıkken RESET düğmesine basınız ve 8-10 saniye boyunca elinizi çekmeden basılı tutunuz. Not: Cihaz reset atılıp sıfırlandıktan sonra önceden girilmiş olan ayarlar silinecektir. Bu yüzden cihazı...
  • Page 84 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Bağdaştırıcı ayarlarını değiştirin'e basınız Yerel Ağ Bağlantısı'na sağ click yapınız Özellikler'e basınız...
  • Page 85 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Internet Protokolü Sürüm 4 (TCP/IPv4) 'e çift tıklayınız Otomatik olarak bir IP adresi al seçimini yapınız DNS sunucu adresini otomatik olarak al seçimini yapınız Tamam'a basınız...
  • Page 86 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Windows Vista OS İçin Başlat > Ayarlar > Denetim Masası'na gidiniz, yandaki sayfayı göreceksiniz. Ağ durumu ve görevlerini görüntüle'ye basınız Durumu görüntüle'ye basınız Özellikler'e tıklayınız...
  • Page 87 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Internet Protokolü Sürüm 4 (TCP/IPv4) 'e çift tıklayınız Otomatik olarak bir IP adresi al seçeneğine tıklayınız DNS sunucu adresini otomatik olarak al seçeneğine tıklayınız Tamam'a basınız...
  • Page 88 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Windows XP OS İçin Başlat > Denetim Masası'na gidiniz, yandaki sayfayı göreceksiniz. Ağ ve Internet Bağlantıları'na tıklayınız Ağ Bağlantıları'na tıklayınız Yerel Ağ Bağlantısı'na sağ tıklayınız Özellikler'e tıklayınız...
  • Page 89 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Internet Protocol (TCP/IP) çift tıklayınız Otomatik olarak bir IP adresi al seçimini yapınız DNS sunucu adresini otomatik olarak al seçimini yapınız Tamam'a tıklayınız...
  • Page 90 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu Tamam'a tıklayınız...
  • Page 91 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu 2) IE Tarayıcınızı yapılandırınız IE tarayıcınızı açınız, Araçlar sekmesine tıklayınız, şu ekranı göreceksiniz. Internet Seçenekleri'ni tıklayınız Asla bağlantı numarası çevirme ögesini seçiniz Tamam'a tıklayınız Yukarıdaki ayarları yapılandırdıktan sonra yeniden Web tabanlı yapılandırma sayfasına bağlanmayı...
  • Page 92 TD-W8151N 150Mbps Kablosuz N ADSL2+ Modem Router Kullanım Kılavuzu 4) Problem halen devam ediyorsa lütfen Teknik Destek bölümümüzle bağlantıya geçiniz. Not: Sorun Giderme ve Teknik Destek hakkında daha fazla bilgi için lütfen Teknik Destek Web Sayfamızı ziyaret ediniz: http://www.tp-link.com.tr/Support/...

  • Page 93: Ek C: Teknik Destek

    Global Tel: +86 755 26504400 E-posta: support@tp-link.com Hizmet saatleri: haftanın 7 günü 24 saat TP-LINK TECHNOLOGIES CO., LTD. Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4), Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China Türkiye Tel: 444 19 25 (Türkçe Servis)
