LG LCE3010SB Owner's Manual

Ceramic-glass radiant cooktop.
Hide thumbs

Advertisement

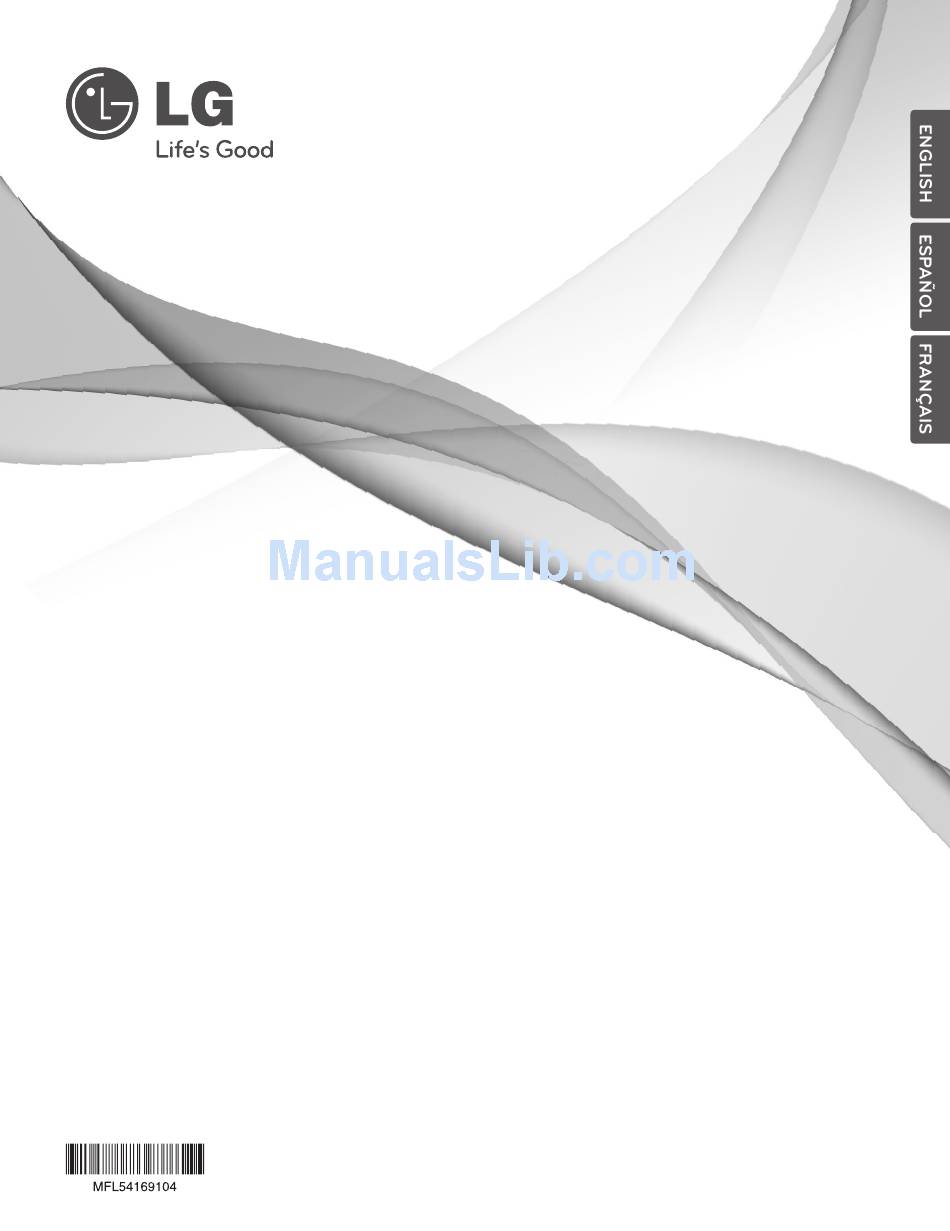

OWNER'S MANUAL
CERAMIC-GLASS RADIANT COOKTOP
Please read this guide thoroughly before operating
and keep it handy for reference at all times.
LCE3010SB
LCE3610SB
www.lg.com

Advertisement

   Also See for LG LCE3010SB

   Related Manuals for LG LCE3010SB

   Summary of Contents for LG LCE3010SB

  • Page 1

    OWNER’S MANUAL CERAMIC-GLASS RADIANT COOKTOP Please read this guide thoroughly before operating and keep it handy for reference at all times. LCE3010SB LCE3610SB www.lg.com...

  • Page 2: Table Of Contents

    Warranty for customers in the U.S.A..30 Warranty for customers in Canada ... 31 THANK YOU! Congratulations on your purchase and welcome to the LG family. Your new LG RADIANT Cooktop combines precision cooking features with simple operation and stylish design. By following...

  • Page 3: Important Safety Information

    I M P O RTA N T S A F E T Y I N F O R M AT I O N READ ALL INSTRUCTIONS BEFORE USE You can download an owner's & installation manual at http://www.lg.com. WARNING For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock, or to prevent property damage, personal injury, or death.

  • Page 4: Electrical Safety

    I M P O RTA N T S A F E T Y I N F O R M AT I O N READ ALL INSTRUCTIONS BEFORE USE SAFETY PRECAUTIONS • Wear proper apparel. Loose-fitting or hanging garments should never be worn while using the appliance.

  • Page 5: Safety During Use

    I M P O RTA N T S A F E T Y I N F O R M AT I O N READ ALL INSTRUCTIONS BEFORE USE SAFETY DURING USE • This appliance may only be used for normal cooking and frying in the home.

  • Page 6: Safety When Cleaning

    I M P O RTA N T S A F E T Y I N F O R M AT I O N SAFETY DURING USE • Do not place hot cookware on cold cooktop glass. This could cause glass to break. •...

  • Page 7: California Safe Drinking Water And Toxic Enforcement Act

    I M P O RTA N T S A F E T Y I N F O R M AT I O N HOW TO AVOID DAMAGE TO THE APPLIANCE • Prior to using your cooktop for the first time, apply the recommended cooktop cleaning creme to the ceramic surface.

  • Page 8: Cookware Tips

    C O O K WA R E T I P S SELECTING COOKWARE POTS AND PANS The better the pot, the better the cooking results. • You can recognize good pots and pans by their bases. The base should be as thick and flat as possible.

  • Page 9

    SELECTING COOKWARE AVOIDING SCRATCHES It is recommended to always use heavier gauge stainless steel cookware on your ceramic cooktop surface. This will help reduce the possibility of developing scratches on the ceramic surface. Low-quality cookware can scratch the cooktop surface. Cookware should always be lifted over the ceramic cooktop surface to prevent scratching.

  • Page 10: Parts And Features

    PA RT S A N D F E AT U R E S PARTS AND FEATURES OF YOUR COOKTOP Throughout this manual, features and appearance may vary from your model. LCE3010SB Radiant Cooktop Single Cooking Zone 8″ (203mm) 1900W Single Cooking Zone 6″...

  • Page 11: Touch Control Features

    TOUCH CONTROL FEATURES LOCATIONS OF SURFACE ELEMENTS AND CONTROLS The surface burner elements are positioned in the same locations on the cooktop and the control panel for ease of use. LCE3010SB Radiant Cooktop Single Single Left Rear Center Rear Element...

  • Page 12: Operating Instructions

    O P E R AT I N G I N S T RU C T I O N S BEFORE USING THE COOKTOP Before using the cooktop for the first time, clean it thoroughly with the included cleaner or ceramic cooktop cleaner according to the Care and Cleaning instructions in this guide.

  • Page 13: Setting The Controls

    SETTING THE CONTROLS SETTING THE POWER LEVEL The power level for the selected Cooking Zone can be set from 1 to 9. To select the power level: Select the number on the element power settings for the active Cooking Zone to adjust the power level from 1 to 9.

  • Page 14: Using The Warming Zone

    O P E R AT I N G I N S T RU C T I O N S SETTING THE CONTROLS WARM The cooktop has a WARM setting feature that can be used on all Cooking Zone except the Warming Zone element.

  • Page 15: Using The Triple Cooking Zones

    The indicator light below the D (Dual) will turn ON. Select the desired power level. O P E R AT I N G I N S T RU C T I O N S (LCE3610SB only) LCE3010SB only LCE3610SB only...

  • Page 16: Using The Child Lock

    O P E R AT I N G I N S T RU C T I O N S USING CHILD LOCK You can lock the entire cooktop at any time when it is not in use. Locking the cooktop will prevent Cooking Zones from being turned on accidentally.

  • Page 17: Care And Cleaning

    CLEANING THE COOKTOP NORMAL DAILY USE CLEANING ONLY use Ceramic Cooktop Cleaner on the glass cooktop. Other creams may not be as effective or they might damage the surface with scratches or permanent staining. To maintain and protect the surface of your glass cooktop, follow these steps: Before using the cooktop for the first time, clean it with Ceramic Cooktop Cleaner.

  • Page 18: Installation Instructions

    I N S TA L L AT I O N I N S T RU C T I O N S INSTALLATION INSTRUCTIONS AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER. IMPORTANT: SAVE THESE INSTRUCTIONS FOR LOCAL ELECTRICAL INSPECTOR’S USE. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

  • Page 19: Technical Specifications

    TECHNICAL SPECIFICATIONS LCE3010SB Radiant Cooktop COOKTOP DIMENSIONS Width 30-27/32″ (783 mm) Depth 21-15/32″ (545mm) Height 4″ (101.6 mm) COOKING ZONES Position Diameter Front Left 6″ (152 mm) Front Right 9″/6″ (229/152 mm) Rear Left 8″ (203mm) Rear Right 6″ (152 mm) Center 7″...

  • Page 20: Preparing The Installation Location

    240/208 volt, 60 hertz, AC-only electrical supply with ground. • Minimum distance between cooktop and overhead cabinetry is 30″ (762 mm). 30″ Min. (762 mm) LCE3010SB Radiant Cooktop Unit Inch 30-27/32 21-15/32 All dimensions are stated in inches and millimeters (mm).

  • Page 21: Dimensions And Clearances

    (254 mm) 18″ (457 mm) 24″ (610 mm) Approximate location of junction box. Model LCE3010SB 3-3/4″ (95 mm) Recommend space cooktop and oven ″ (70mm) Min. from edge of cooktop to nearest combustible wall 12″ (either side of unit).

  • Page 22: Preparing The Installation Location

    I N S TA L L AT I O N I N S T RU C T I O N S PREPARING THE INSTALLATION LOCATION IMPORTANT INSTALLATION INFORMATION • All electric cooktops run off a single phase, threewire or four-wire cable, 240/208 volt, 60 hertz, AC-only electrical supply with ground.

  • Page 23: Dimensions And Clearances

    DIMENSIONS AND CLEARANCES Overhead cabinet should not exceed a maximum depth of 13″ (330 mm). 36″ Min (914 mm) CAUTION To eliminate the risk of burns or fire by reaching over heated surfaces, cabinet storage space located above the cooktop should be avoided.

  • Page 24: Electrical Connections

    I N S TA L L AT I O N I N S T RU C T I O N S ELECTRICAL CONNECTIONS IMPORTANT SAFETY INSTRUCTIONS • Be sure your cooktop is installed and grounded properly by a qualified installer or service technician.

  • Page 25

    ELECTRICAL CONNECTIONS ELECTRICAL CONNECTION Connect the flexible armored cable that extends from the surface unit to the junction box using a suitable strain relief at the point the armored cable enters the junction box. Then make the electrical connection as follows. Electrical ground is required on this appliance.

  • Page 26: Cooktop Installation

    I N S TA L L AT I O N I N S T RU C T I O N S ELECTRICAL CONNECTIONS IF COOKTOP IS USED IN A NEW BRANCH CIRCUIT INSTALLATION (1996 NEC), MOBILE HOME, RECREATIONAL VEHICLE, OR WHERE LOCAL CODES DO NOT PERMIT GROUNDING TO THE NEUTRAL (WHITE) WIRE Observe all governing codes and local ordinances.

  • Page 27: Final Check

    COOKTOP INSTALLATION Install the retainer brackets to the bottom of the cooktop; then snug the bolts against the bottom of the countertop as shown. LCE3010SB / LCE3610SB Radiant Cooktop Preferred installation Retainer brackets LCE3010SB Radiant Cooktop Alternative installation Rear Front...

  • Page 28: Troubleshooting

    T RO U B L E S H O OT I N G BEFORE CALLING FOR SERVICE Before you call for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of a defect in workmanship or materials. Problem Cooktop does not work Cooktop does not heat...

  • Page 29

    BEFORE CALLING FOR SERVICE Problem Possible Causes Flashing • There is a fault with thermistor or Micom. Flashing Flashing Flashing • Food spill/soil on touchpads. • Object placed on touchpad. • Touch time is long. Flashing • There is a fault with Display. Flashing •...

  • Page 30: Warranty For Customers In The U.s.a

    LG RADIANT COOKTOP LIMITED WARRANTY - USA LG Electronics Inc. will repair or replace your product, at LG’s option, if it proves to be defective in material or workmanship under normal use, during the warranty period set forth below, effective from the date of original consumer purchase of the product.

  • Page 31: Warranty For Customers In Canada

    LG RADIANT COOKTOP LIMITED WARRANTY - CANADA LG Electronics Inc. will repair or replace your product, at LG’s option, if it proves to be defective in material or workmanship under normal use, during the warranty period set forth below, effective from the date of original consumer purchase of the product.

  • Page 32

    M E M O...

  • Page 33

    LG Customer Information Center 1-800-243-0000 USA, Consumer User 1-888-865-3026 USA, Commercial User 1-888-542-2623 CANADA Register your product Online! www.lg.com Printed In Korea...
