La Crosse Technology WS-2317 Quick Setup Manual

Using cable connection or 433MHz for wireless transmission of weather data, this unique weather station can be powered
using batteries or AC power (or both at the same time) for all your weather needs in the home or office.

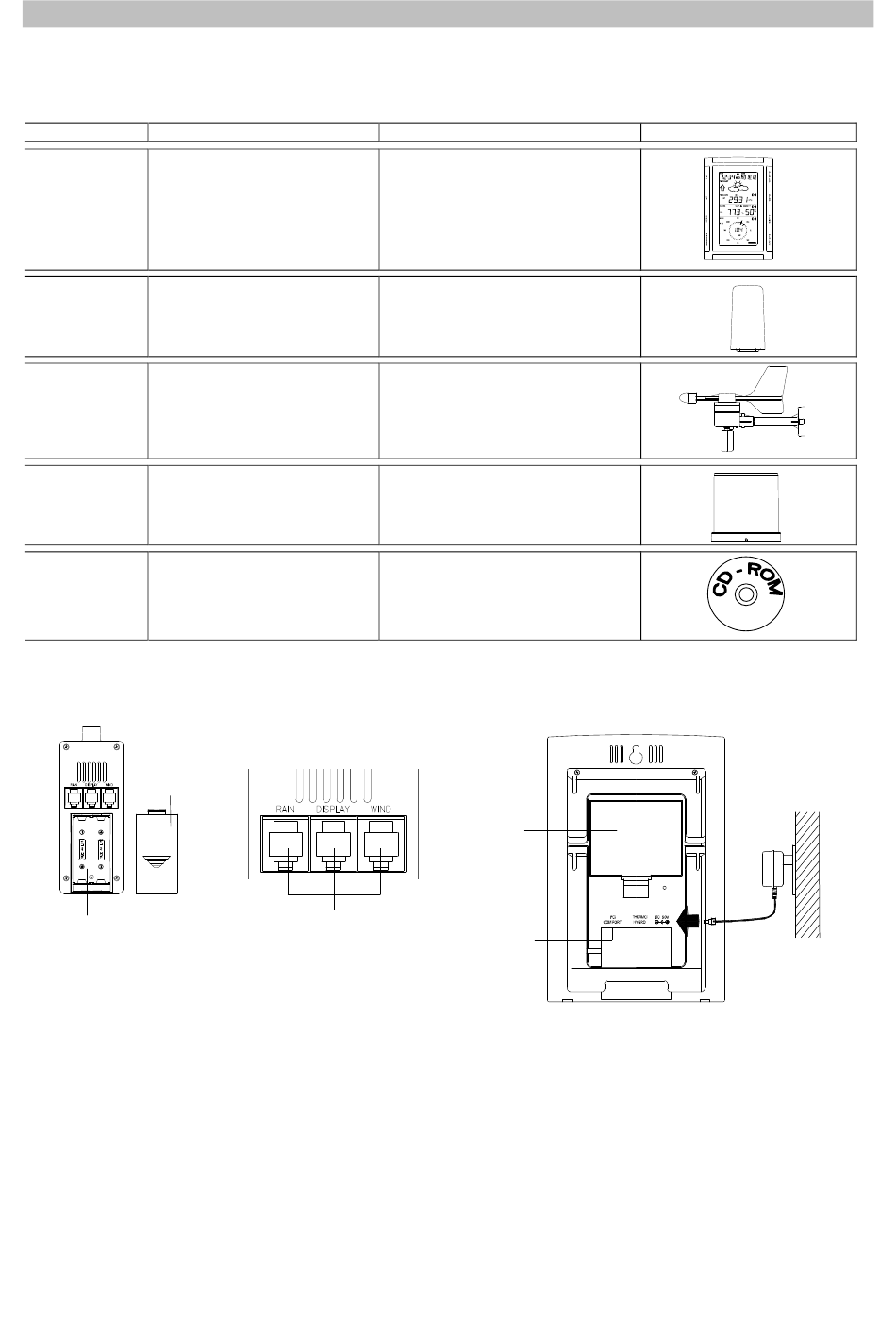

Carefully open and check that the following contents are complete:

Item: Consisting of:

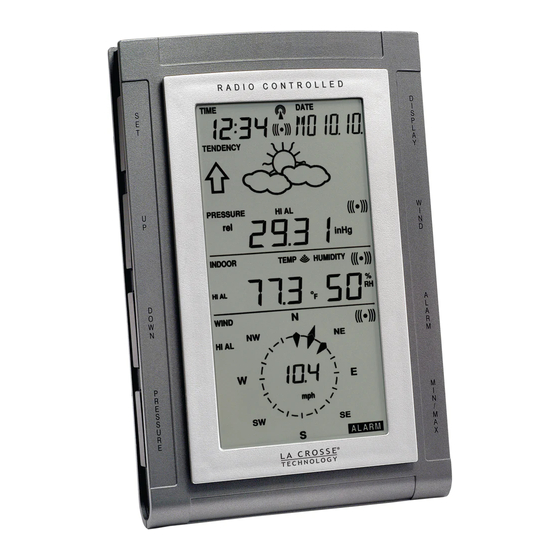

Base Station 1) Main unit
Thermo-Hygro 1) Main unit
Sensor 2) Rain protection cover
Wind Sensor 1) Main unit with wind vane
2) 32ft cable (already attached the
main unit)
3) Mast holder
Rain Sensor 1) Base and funnel
2) 32ft cable (already attached
the main unit)
'Heavy CD-ROM
Weather" PC (English version only)
software

Setting Up:

Important: Operating power is supplied to both the wind and rain sensors by the thermo-hygro sensor
Battery Cover
Battery Compartment

Setting up using batteries:

1) Sensors: Pull and remove the protective rain cover to reveal three socket ports and the battery cover. Insert the cables
of the wind and rain sensors in the correctly marked sockets. Slide open the battery compartment and checking the
correct polarity insert 2 x AA/LR6, 1.5V batteries and replace the cover and rain cover
2) Base Station: Now open the battery cover at the back of the unit and checking the correct polarity insert 3 x AA/LR6,
1.5V batteries and replace the battery cover

Setting up using the AC/DC power adaptor:

1) Sensors: Set up the sensors as described above in Setting up using batteries.
2) Base Station: Using the AC power adaptor (included in this set) plug it into mains supply and connect it to the 6.0V DC
adaptor socket located at the side of the base station.
Quick Set Up Manual - Weather Station
Thermo-Hygro Sensor
Sensor sockets
Fittings:
1) AD/DC 120V power Adaptor -
optional use (included)
1) 32ft cable - optional connection to
the base station (included)
2) Wall mounting screws
3) Plastic anchors for screws
1) 2 x U-bolts for mast holder
2) 4 x Washers
3) 4 x Nuts
4) 1 x screw (to fix main unit to the
mast holder
1) 6.5 ft computer cable for PC
function only - optional use
(included)
Battery
compartment
PC COM
Port
Illustration:
Base Station
Socket for sensor
DC 6.0V
socket
