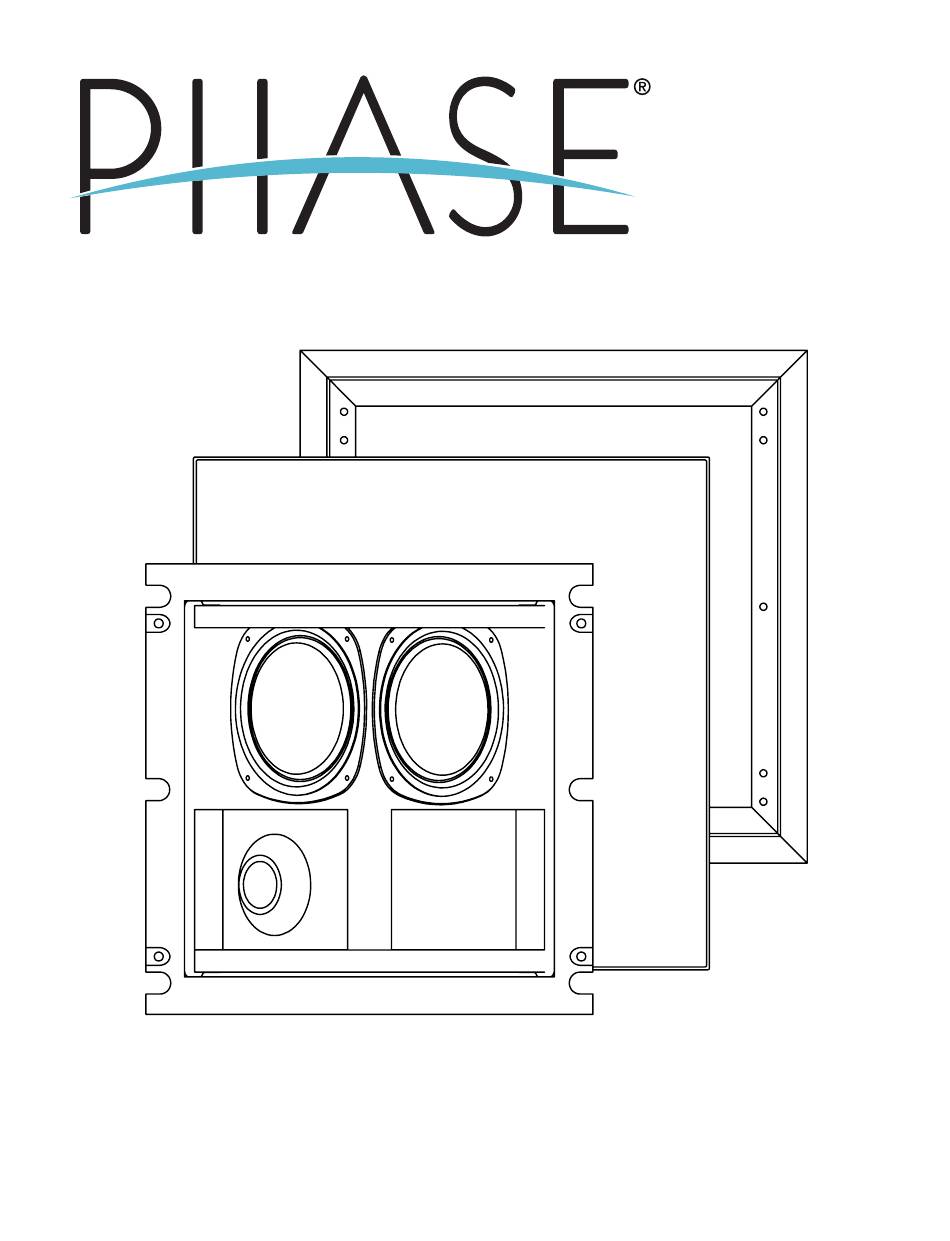

- Page 1 UNLESS OTHERWISE SPECIFIED: NAME DATE ABOWERS 12/10/2019 DRAWN DIMENSIONS ARE IN INCHES TOLERANCES: TITLE: CHECKED CI140 OWNER’S MANUAL FRACTIONAL ANGULAR: MACH BEND ENG APPR. TWO PLACE DECIMAL THREE PLACE DECIMAL MFG APPR. Q.A. INTERPRET GEOMETRIC Rev 12.10.2019 CONFIDENTIAL TOLERANCING PER:...
- Page 2 CI140 | OWNER’S MANUAL Thank you for purchasing the Phase Technology CI Custom Installation high definition in-wall speaker system. The mounting ® grame of extruded aluminum has a uniquely designed self-aligning clamping system to secure the flange assembly to the drywall.
- Page 3 5. Water and Moisture - The appliance should not be used near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc. 6. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer. PORTABLE CART WARNING 7.
- Page 4 Speaker Installation STEP 1: The cutout opening for the CI140 is 13.4” H x 13.25” W. Place the cutout template against the wall surface and align it using your bubble level and tape measure. Hold, tape, or staple the template in place and trace around the perimeter of the template with a pencil.
- Page 5 CI140: The CI140 has a nylon terminal block on the top end of the enclosure. Connect your speaker lead wire to the terminal block and secure teh stripped ends of your speaker wire by tightening down the screw terminals, the red wire to the positive, and the black to the negative.
