Owners Manual / Installation Instructions
T E C H N O L O G Y
CI120 & CI130
[GETTING STARTED]
FOR EFFICIENT INSTALLATION, YOU WILL NEED THE FOLLOWING TOOLS: • ELECTRIC SCREWDRIVER (DRILL) WITH PHILIPS
BIT • TAPE MEASURE • STUD-FINDER • 3/32" STANDARD SCREWDRIVER • DRYWALL SAW OR KNIFE • BUBBLE LEVEL • PENCIL
[BOX CONTENTS]
1 SPEAKER
1 MICRO-FLANGE GRILLE
1 MOUNTING FLANGE ASSEMBLY
1 HOLE TEMPLATE
GRILLE
Thank you for purchasing the Phase Technology
speaker system. The mounting frame of extruded aluminum has a uniquely designed self-
aligning clamping system to secure the flange assembly to the drywall. This patented design
simplifies installation and reduces unwanted wall vibration resulting in improved performance
and definition.
All CI Series speakers include self-resetting solid-state PTC protection circuits. This unique
system is able to detect when the speaker is being over-driven and lowers the speaker volume
until the problem is corrected. The PTC device then resets itself for normal operation.
Regardless of application, serious audiophile listening or home theater, we recommend that
you take the time to read this manual thoroughly before connecting speakers to your amplifier
or receiver. In the highly unlikely event that you should experience a problem with set-up or
operation, please contact one of our authorized dealers for assistance, or contact us directly.

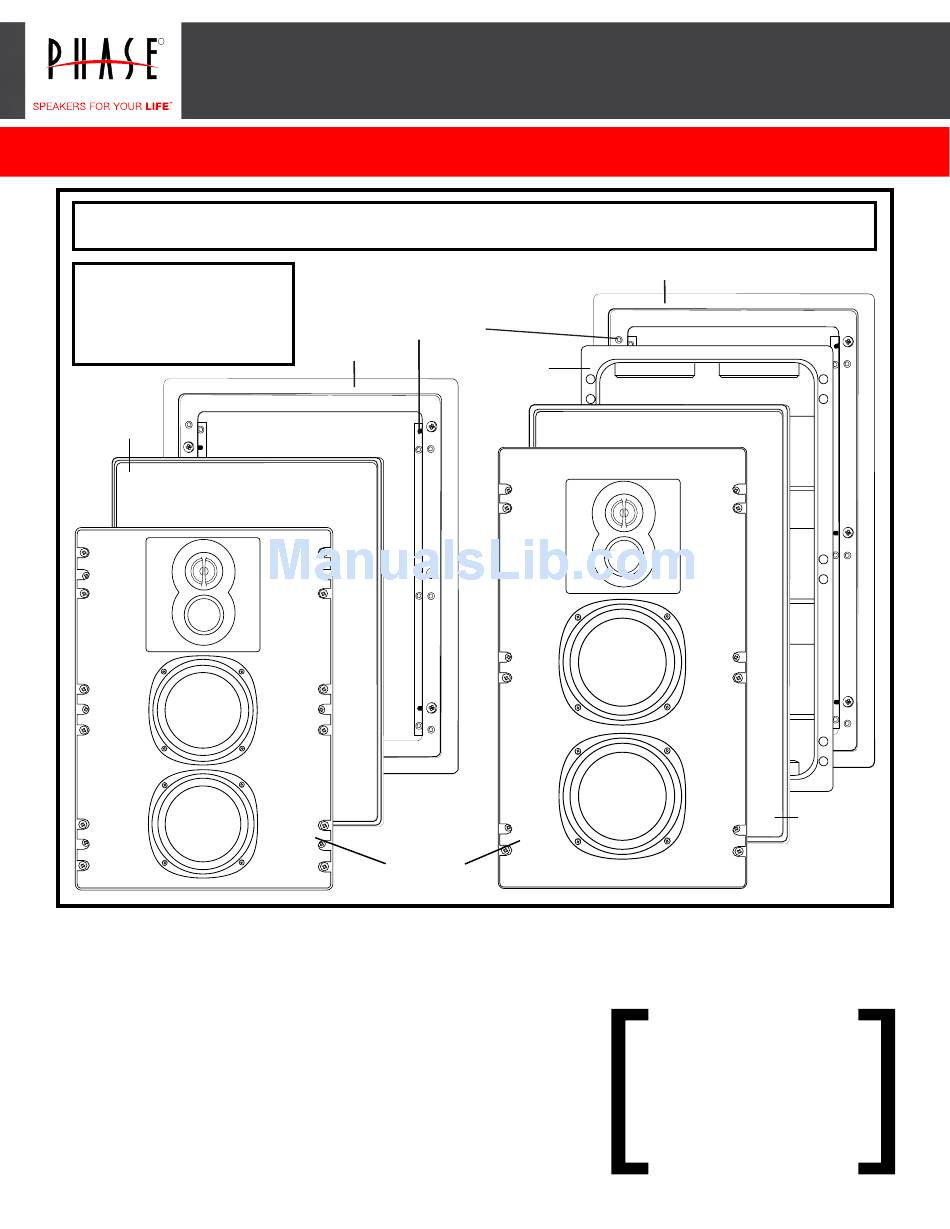

CUSTOM INSTALL
SELF-ALIGNING
CLAMPING SYSTEM
FLANGE ASSEMBLY
SPEAKER/
BAFFLE ASSEMBLY
CI Custom Installation high definition in-wall
®
SERIES]
FLANGE ASSEMBLY
SPEAKER REAR
ENCLOSURE
Phase Technology
8005 W. 110th St., Suite 208, Overland Park, KS 66210
855.663.5600 (Domestic)
+1.913.663.5600 (International)
913.663.3200 (Fax)
1
GRILLE
Corporation
®
2
3
3
3
4
4
4
Advertisement
Table of Contents
Related Manuals for Phase CI120
Summary of Contents for Phase CI120
- Page 1 1 HOLE TEMPLATE SPEAKER REAR ENCLOSURE GRILLE GRILLE SPEAKER/ BAFFLE ASSEMBLY Thank you for purchasing the Phase Technology CI Custom Installation high definition in-wall Phase Technology Corporation ® ® 8005 W. 110th St., Suite 208, Overland Park, KS 66210 speaker system. The mounting frame of extruded aluminum has a uniquely designed self- 855.663.5600 (Domestic)
- Page 2 [SAFETY INSTRUCTIONS] that may impede the flow of air through the ventilation openings. 9. Heat - The appliance should be situated away from heat sources CAUTION such as radiators, stoves, or other appliances that produce heat. RISK OF ELECTRIC SHOCK DO NOT OPEN 10.
- Page 3 [SPEAKER INSTALLATION] STEP 1: The cutout opening for the CI120 is 18.125” H x 13.25” W; CI130 is 22.375” H x 13” W. Place the cutout template against the wall surface and align it using your bubble level and tape measure. Hold, tape or staple the template in place and trace around the perimeter of the template with a pencil.
-
Page 4: Specifications
Because of Phase Technology’s uncompromising quality control programs, it’s unlikely that your speakers will ever need service if connected and used as outlined in this Owners’ Manual. In the unlikely event that a problem does occur, please contact your Phase Technology dealer. Your dealer has the necessary factory-authorized parts and trained technicians to quickly restore your speaker to its original performance specifications.
