Phase CI-10 VIII Custom Installation

Install instructions for CI rectangular flush mounts models:
C I - 1 0 V I I I C I - 1 0 V I I I
T E C H N O L O G Y
Thank you for purchasing Phase Technology CI custom
installation speakers. This eighth generation of high
performance in-wall models features the same superb
sonic performance as our acclaimed PC-Series cabinet
speakers in addition to great flexibility and easy
installation, thanks to Phase Tech's patented Quick-
Mount™ tool-free clamping system. The most striking
change to the series VIII is a new look with the
off-axis tweeter design. This feature maximizes the
speaker's clarity and imaging by creating an asym-
metrical loading or diffraction pattern, reducing the
amount of diffraction normally caused by a flange-to-

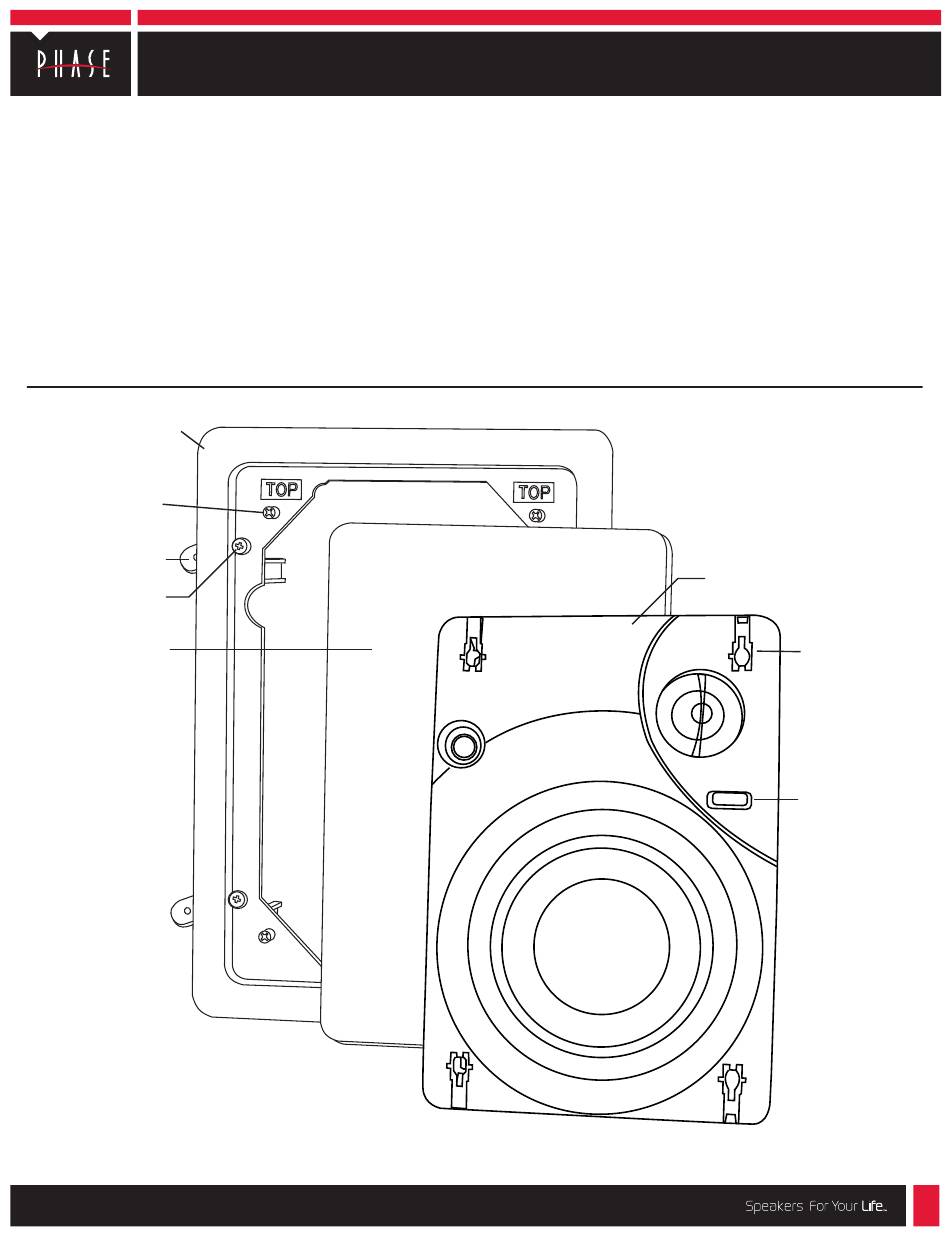

Universal flange
assembly (CI-FG QM)
(purchase separatly)
Quick mount (QM)
clamping post (4x)
Flange Clamp (4x)
Flange Clamp
Screw (4x)
Grille
*The RB-18 rough-in bracket is available separately.
