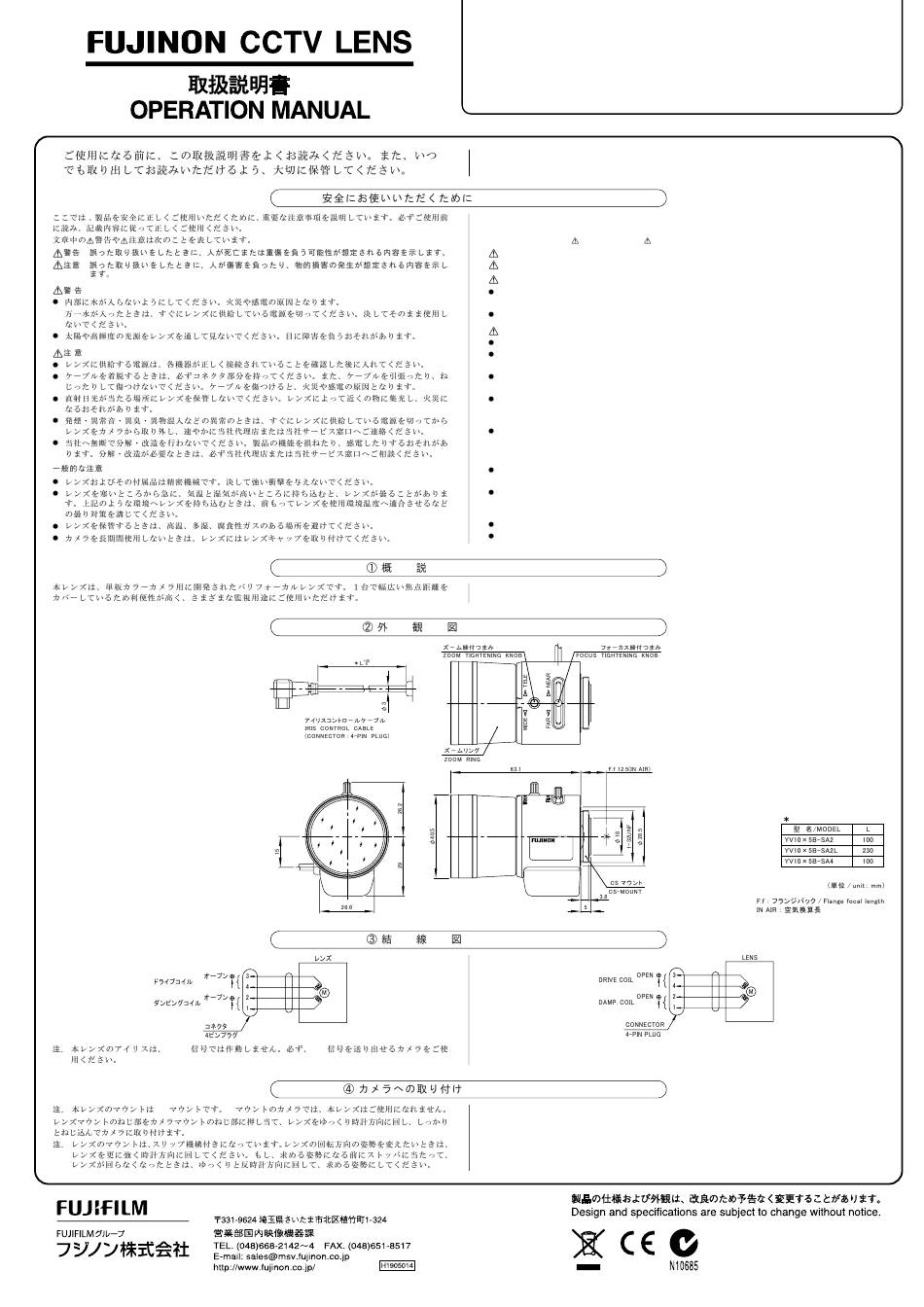

FUJINON YV10x5B-SA2 Operation Manual

Video DC
CS C
YV10x5B-SA2
YV10x5B-SA2L
YV10x5B-SA4
1:1.3/5-50mm 1/3" CS-Mount
Before using this product, please read this operation manual carefully,
and keep the manual handy for future use.

/ FOR YOUR SAFETY USE

This content explains important notices for all the users to use this product safely. Read the content carefully
before using, and follow the instructions.
The following signs of WARNING and
WARNING Indicates the possibility of causing death or serious injury when misused.
CAUTION Indicates the possibility of causing injury or substantial damage when misused.
WARNING
Do not moisten inside of the appliances. It may cause fire or electric shock. If the incident occurs, shut off
the power supplied to the lens immediately.
Do not look at any sorts of strong illuminant such as the sun through the lens. Eyes could be harmed.
CAUTION
Before supplying the power to the lens, make sure all the parts are connected correctly.
In order to install or release the lens cable, be sure to hold the joint part. Do not pull it off nor twist it, or it
may get damaged. It may cause fire or electric shock.
Do not leave or store the lens under direct sunshine. The lens may condense light on a near-by object, and
cause a fire.
If any sorts of incidents such as unusual smoke, noise, smell or obstacles are found, shut off the power
supplied to the lens and pull out the lens cable immediately. Please notify our shop or service
department as soon as possible.
Do not remodel the instrument without permission: it may impair the functions of product or cause
electric shock. Please contact our sales agent or Fujinon service department if remodeling is necessary.
NOTICES
Lens and its accessories are extremely precise instrument, then be sure not to apply the strong impacts to
them.
There may be a case that the glasses of the lens mist when the lens is carried from a cool place to a place of
high temperature and high humidity. To avoid a mist on the glasses, before moving the lens, let the lens
adjust to the ambient temperature of the place where the lens will be used.
For safe storage of the lens, avoid hot or humid place, and avoid places containing corrosive gas or salt.
Put the cap on the lens while the camera is not used for a long time.

/ GENERAL DESCRIPTION

This is a vari-focal lens that has been developed for single CCD color cameras. It covers a wide range of focal
length so that it may be used as a single lens in many surveillance applications.

/ OUTLINE DRAWING

/ WIRING DIAGRAM

Note: The iris control for this lens can not be activated with video signal.
Please use a camera that can sent DC signal.

/ MOUNTING THE LENS

Note: This lens is designed for CS mount camera. Note that C mount camera is unavailable.
Press the threaded portion of the lens mount against the threaded portion of the camera mount, slowly rotate
the lens clockwise, and screw in the lens mount to be installed on the camera.
Note: The lens mount is equipped with a slip mechanism. To change the rotational position of the lens,
strongly rotate the lens clockwise further. If the lens reaches the stopper and cannot be thereby
rotated, rotate it counterclockwise slowly until it reaches the required position.
CAUTION show:
202B9583044
LC133B-SA2 1704
