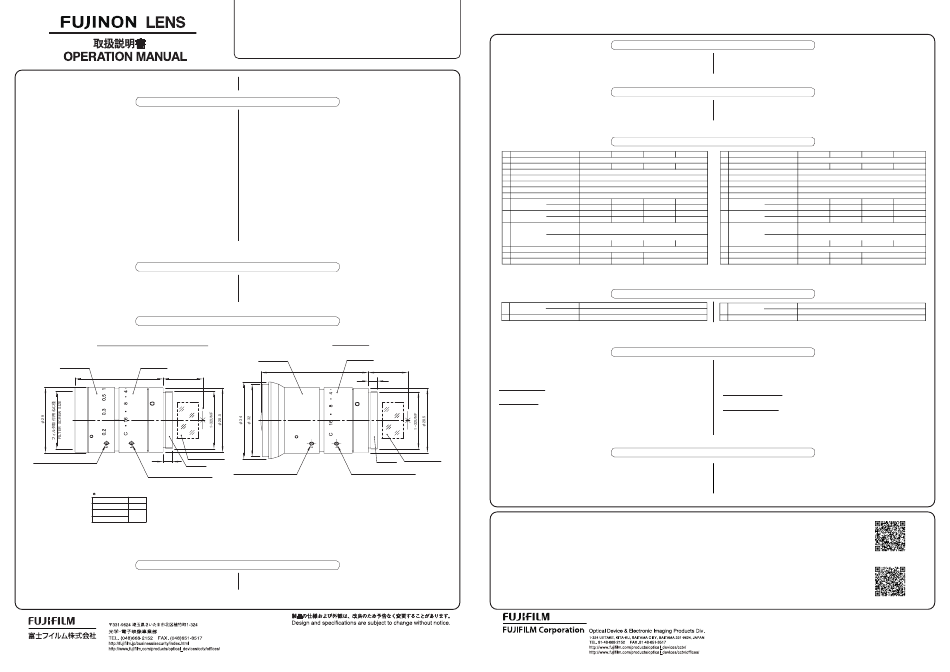

FUJINON TF2.8DA-8 Operation Manual

1/3” c-mount

Advertisement

Quick Links

ご使用になる前に、 この取扱説明書をよくお読みください。 また、 いつでも取
り出してお読みいただけるよう、 大切に保管してください。
安全にお使いいただくために / FOR YOUR SAFETY
ここでは 、 製品を安全に正しくご使用いただくために、重要な注意事項を説明しています。 必ずご使用前に読み、
記載内容に従って正しくご使用ください。
文章中の 警告や 注意は次のことを表しています。

警告
誤った取り扱いをしたときに、 人が死亡または重傷を負う可能性が想定される内容を示します。

注意
誤った取り扱いをしたときに、 人が傷害を負ったり、 物的損害の発生が想定される内容を示します。

警 告
太陽や高輝度の光源をレンズを通して見ないでください。 目に障害を負う原因となります。
注 意
直射日光が当たる場所にレンズを保管しないでください。 レンズによって近くの物に集光し、 火災になるおそ
れがあります。
分解 ・ 改造を行わないでください。 製品の機能を損ねる原因となります。
一般的な注意
本書に記載された機能以外の目的で、 本製品を使用しないでください。
レンズおよびその付属品は精密機械です。 決して強い衝撃を与えないでください。
レンズを寒いところから急に、 気温と湿気が高いところに持ち込むと、 レンズが曇ることがあります。 上記のよ
うな環境へレンズを持ち込むときは、 前もってレンズを使用環境温度へ適合させるなどの曇り対策を講じてく
ださい。
レンズを保管するときは、 高温、 多湿、 腐食性ガスのある場所を避けてください。
カメラを長期間使用しないときは、 レンズにはレンズキャップを取り付けてください。
① 概  説 / GENERAL DESCRIPTION
本レンズは、1/3" 3 CCD カラーカメラ用に開発されたレンズです。高画質が求められる、監視もしくは画像
入力用途に最適です。
② 外  観  図 / OUTLINE DRAWING
TF4DA-8/TF8DA-8B/TF15DA-8
フォーカスリング
アイリスリング
FOCUS RING
IRIS RING
F.f. 17.526 (IN AIR)
*L (at ∞)
GLASS ELEMENTS
4
M2 ねじ穴 深さ 1.6
Cマウント
M2 THREADED HOLE DEPTH 1.6
C-MOUNT
M2 ねじ穴 深さ 2.5
M2 THREADED HOLE DEPTH 2.5
L
型名/MODEL
TF4DA-8
46.5
TF8DA-8B
39
TF15DA-8
注: レンズの外観は、機種によって多少異なります。
Note. The shape of lens differs a little by models.
③ カメラへの取り付け / MOUNTING THE LENS
レンズマウントのねじ部をカメラマウントのねじ部に押し当て、 レンズをゆっくり時計方向に回し、 しっかりとねじ込んでカ
メラに取り付けます。
TF2.8DA-8
TF4DA-8
TF8DA-8B
TF15DA-8
1/3" C-Mount
Before using this product, please read this operation manual carefully, and keep
the manual handy for future use.
This content explains important notices for all the users to use this product safely. Read the content carefully before
using, and follow the instructions.
The following signs of  WARNING and  CAUTION show:
WARNING Indicates the possibility of causing death or serious injury when misused.
CAUTION
Indicates the possibility of causing injury or substantial damage when misused.
WARNING
Do not look at any sorts of strong illuminant such as the sun through the lens. Eyes could be harmed.
CAUTION
Do not leave or store the lens under direct sunshine. The lens may condense light on a near-by object, and cause a
fire.
Do not remodel the instrument : it may impair the functions of product.
NOTICES
Do not use this product for purposes not mentioned in this manual.
Lens and its accessories are extremely precise instrument, then be sure not to apply the strong impacts to them.
There may be a case that the glasses of the lens mist when the lens is carried from a cool place to a place of high
temperature and high humidity. To avoid a mist on the glasses, before moving the lens, let the lens adjust to the
ambient temperature of the place where the lens will be used.
For safe storage of the lens, avoid hot or humid place, and avoid places containing corrosive gas or salt.
Put the cap on the lens while the camera is not used for a long time.
This lens is developed for a 1/3" 3-CCD color camera. It is best suited for capturing surveillance images that
require high quality as well as for inputting such images.
TF2.8DA-8
フォーカスリング
アイリスリング
IRIS RING
FOCUS RING
F.f. 17.526 (IN AIR)
47.5 (MAX), 46.8 (at ∞)
4
Cマウント
GLASS ELEMENTS
C-MOUNT
M2 ねじ穴 深さ 1.6
M2 ねじ穴 深さ 2.5
M2 THREADED HOLE DEPTH 1.6
M2 THREADED HOLE DEPTH 2.5
F.f:フランジバック / Flange focal length
IN AIR:空気換算長
Press the threaded portion of the lens mount against the threaded portion of the camera mount, slowly rotate the lens
clockwise, and screw in the lens mount to be installed on the camera.
BB00036640-100
LH290A-8 2803
レンズのアイリスリングを回して操作を行います。カメラ側から見て時計方向の回転でクローズ側になります。
注:
アイリスリングを固定したいときは、アイリスリング上にある M2 ねじ穴に、付属の M2 ねじをねじ込んでください。
レンズのフォーカスリングを回して操作を行います。カメラ側から見て時計方向の回転で至近側になります。
注:
フォーカスリングを固定したいときは、フォーカスリング上にある M2 ねじ穴に、付属の M2 ねじをねじ込んで
ください。
1
型名
TF2.8DA-8
2
用途
3
焦点距離
2.8mm
4
最大口径比
5
絞り範囲
6
画面寸法
7
フランジバック
8
フォーカス範囲
a) 水平
89.1°
9
画角
b) 垂直
69.3°
a) 水平
218mm
最近接時の撮
10
影範囲
b) 垂直
153mm
a) アイリス
(操作角)
11
操作
b) フォーカス
(操作角)*1
6.3°
12
マウント
13
フィルタ取付ねじ径
-
14
質量
約75g
*1 : フォーカス範囲の操作角
a) ) 使用
1
温度範囲
b) ) 保存
2
湿度範囲
レンズの表面には反射防止のコーティングが施されています。 この表面が 「ほこり」 や 「油」 「指紋」 等で汚れる
と、 有害なフレアを発生し、 レンズの性能を低下させます。 また、 これらの汚れは 「ヤケ」 や 「カビ」 の発生原因
にもなりますので、 汚れを見つけたときは、 次の様にして手入れを行ってください。
注. 手入れに当たっては、 レンズの表面にキズを付けないように十分注意してください。
(1) ほこり等が付いたとき
油気のない柔らかいハケやブロアーブラシ (写真用品) 等で軽く 「ごみ」 や 「ほこり」 を払い落としてください。
(2) 油等が付いたとき
「水滴」 や 「油」 等を清潔な柔らかい布で軽く拭き取り乾燥させてください。 次に油気のない洗いざらした木
綿の布やレンズクリーニングペーパーに消毒用アルコールまたはレンズクリーナを少量しみ込ませ、 レンズの
中心部より周辺部に向けて渦巻状に軽く拭き上げてください。 拭き残りがあるときは、 別の布かペーパーに取
り替えて、 数回繰り返してください。
1. レンズ本体 ······················································································································································································ 1
2. 前キャップ························································································································································································ 1
3. 後キャップ························································································································································································ 1
4. ねじ( M2 ) ···················································································································································································· 2
5. 取扱説明書····················································································································································································· 1
(単位 / unit :mm)
詳細な仕様や外観図面は弊社ホームページからダウンロードできます。
Detailed specifications and appearance diagrams can be downloaded from the Fujifilm website.
Detaillierte technische Daten und Abbildungen können von der Fujifilm-Website heruntergeladen werden.
Les spécifications détaillées et les schémas externes peuvent être téléchargés du site Web Fujifilm.
Подробные технические данные и изображения внешнего вида можно скачать с веб-сайта Fujifilm.
Puede descargar especificaciones detalladas y diagramas de apariencia del sitio web de Fujifilm.
可以从本公司的主页下载详细的规格和外观图。
④ アイリス操作 / IRIS OPERATION
Rotate the iris ring of the lens. For "close," rotate it clockwise, as viewed from the camera side.
Note:
When you want to secure the iris ring, tighten the supplied M2 screw into threaded holes in the iris ring.
⑤ フォーカス操作 / FOCUS OPERATION
Rotate the focus ring of the lens. For "near," rotate it clockwise, as viewed from the camera side.
Note:
When you want to secure the focus ring, tighten the supplied M2 screw into threaded holes in the focus
ring.
⑥ 光学および機械仕様 / OPTICAL & MECHANICAL SPECIFICATIONS
TF4DA-8
TF8DA-8B
TD15DA-8
1 MODEL
1/3"フォーマット 3CCDカラーカメラ用
2 APPLICATION
4mm
8mm
15mm
3 FOCAL LENGTH
1 : 2.2
4 MAXIMUM RELATIVE APERTURE
F 2.2~F16、クローズ
5 IRIS RANGE
φ6mm (4.8mm×3.6mm)
6 IMAGE SIZE
17.526mm (空気換算長)
7 FLANGE FOCAL LENGTH
∞~0.1m (レンズ前玉頂点より)
8 FOCUS RANGE
64.5°
33.4°
18.0°
a) 水平
9 FIELD ANGLE
49.0°
25.1°
13.5°
b) 垂直
131mm
66mm
36mm
a) 水平
FIELD OF VIEW
10
98mm
50mm
27mm
AT M.O.D.
b) 垂直
手動
a) アイリス
115°
(OP.ANGLE)
11 CONTROL
手動
b) フォーカス
14.4°
54.9°
185.4°
(OP.ANGLE)*1
Cマウント
12 MOUNT
M27×0.5mm
M25.5×0.5mm
13 FILTER SCREW SIZE
約70g
約60g
14 MASS
*1 : CORRESPONDS TO FOCUS RANGE
⑦ 環 境 条 件 / ENVIRONMENTAL CONDITIONS
- 10℃ ~ + 50℃
a) ) OPERATING
1
TEMPERATURE
- 20℃ ~ + 60℃
b) ) STORAGE
35%~90% (ただし結露しないこと)
2
RELATIVE HUMIDITY
⑧ レンズの手入れ / MAINTENANCE OF THE LENS
A special coating has been applied on the lens surface in order to prevent light reflection. Dirty lens surface due to
"dust," "oil" or "finger print" causes harmful flare which result in degenerating lens property. Dirt may cause mold
or scorches on the lens.
Whenever the lens is found to be dirty, clean the lens as instructed below.
Note: Be careful not to damage the lens surface in cleaning.
(1) To remove dust on the lens
Brush "trash" or "dust" off with an oil-free soft brush or a blower-brush (for photography use).
(2) To remove oil on the lens
Wipe water drops or oil off the lens with a clean soft cloth and dry the lens surface. Then prepare oil-free and
washed-out cotton cloth or lens cleaning paper with alcohol for disinfection or lens cleaning liquid. Wipe the rest
of the dirty off gently with the cloth or paper by moving spirally from the lens center towards its rim. Repeat
wiping with another wet cloth or paper until the lens becomes completely clean.
⑨ 商 品 構 成 / PRODUCT COMPONENTS
1. Lens····································································································································································································1
2. Front lens cap··················································································································································································1
3. Rear lens cap ···················································································································································································1
4. Screw ( M2 )·····················································································································································································2
5. Operation manual ···········································································································································································1
URL: https://fm.fujifilm.jp/form/pub/cctvlens/download-j
URL: https://fm.fujifilm.jp/form/pub/cctvlens/download-e
TF2.8DA-8
TF4DA-8
TF8DA-8B
TD15DA-8
1/3" FORMAT 3CCD COLOR CAMERA
2.8mm
4mm
8mm
15mm
1 : 2.2
F 2.2~F16、CLOSE
φ6mm (4.8mm×3.6mm)
17.526mm (IN AIR)
∞~0.1m (FROM FRONT OF LENS)
89.1°
64.5°
33.4°
18.0°
69.3°
49.0°
25.1°
13.5°
218mm
131mm
66mm
36mm
153mm
98mm
50mm
27mm
MANUAL
115°
MANUAL
6.3°
14.4°
54.9°
185.4°
C-MOUNT
-
M27×0.5mm
M25.5×0.5mm
APPROX.75g
APPROX.70g
APPROX.60g
- 10℃ ~ + 50℃
- 20℃ ~ + 60℃
35%~90% (NO DEW CONDENSATION ALLOWED)
