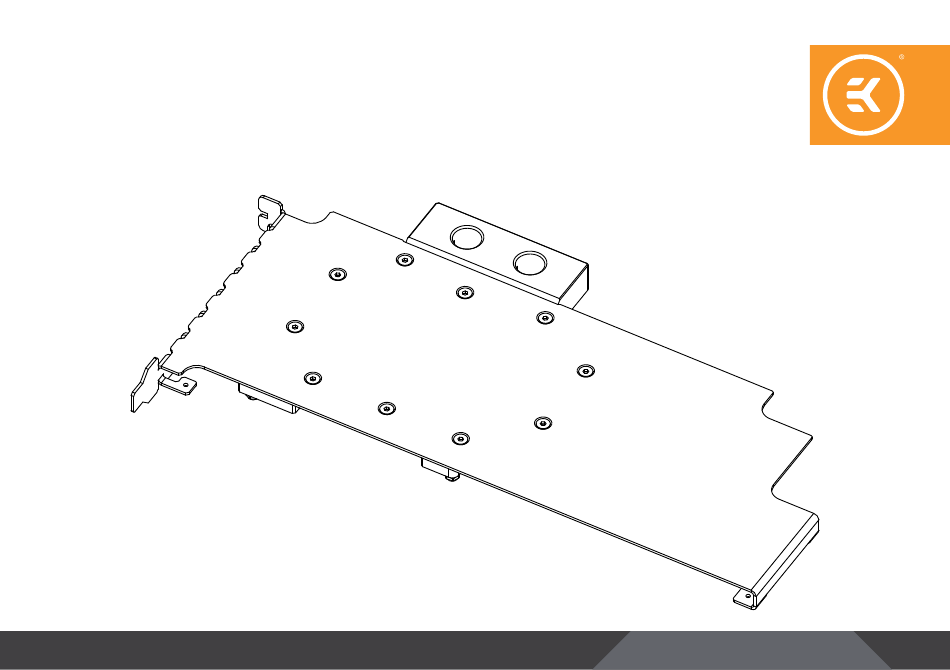

- Page 1 EK-FC WX9100 PRO GPU WATER BLOCK INSTALLATION MANUAL...
- Page 2 The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
-
Page 3: Table Of Contents
TABLE OF CONTENT PREPARING YOUR GRAPHICS CARD INSTALLING THE WATER BLOCK CHECKING FOR CONTACTS INSTALLATION OF FITTINGS AND TUBING INSERTING THE CARD IN YOUR PC CASE REQUIRED TOOLS SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Preparing Your Graphics Card
Wipe off the remains (by using nonabrasive cloth or q-tip, as shown on sample photo) of the original thermal compound until the components and circuit board are completely clean. EKWB recommends the use of denatured alcohol for removing TIM leftovers. STEP 2... - Page 5 STEP 3 APPLYING THERMAL COMPOUND Lightly cover AMD GPU chip with enclosed EK-TIM Ectotherm thermal grease. EKWB recommends to apply the thermal grease in a cross form to best performance (see sample picture). STEP 4 CUTTING THERMAL PADS Your block is supplied with thermal pads that need to be cut into smaller pieces in order to cover all VRM components.
-
Page 6: Installing The Water Block
INSTALLING THE WATER BLOCK STEP 1 PLACING THE BLOCK ON TO THE GRAPHICS CARD Carefully position the water block with preinstalled standoffs on to the graphics card. During this process please make sure you align mounting holes on the PCB with holes on the water block (same applies for other tops). - Page 7 M2.5x4 Screw M2.5x6 Screws Use a Phillips screwdriver with the enclosed M2.5X4 and M2.5X6 screws. EKWB recommends users to start tightening the screws Plastic Washer around the GPU core and continue outwards. Always use a plastic washer under each and every screw.
-
Page 8: Checking For Contacts
Screw in the two G1/4 threaded male fittings. Attach the liquid cooling tubes and connect the water-block(s) into the cooling circuit. EKWB recommends using EK- fittings. EK-Fitting You can use any opening as an inlet/outlet port. Do not forget to... -
Page 9: Inserting The Card In Your Pc Case
INSERTING THE CARD IN YOUR PC CASE Carefully lift your graphics card with installed block and insert it in your PC’s motherboard PCI express expansion slot. Please bear in mind that your graphics card is probably heavier than when it was equipped with original heat sink fan assembly. -
Page 10: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
