ekwb EK-FC780 GTX HOF Series Installation And Mounting Manual

Installation and mounting manual for EK-FC780 GTX HOF water block
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard's circuit board (PCB).
3. The EK High Flow and EK-PSC type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber O-ring gaskets.
4. The use of corrosion inhibiting coolants is always recommended for any liquid cooling system.

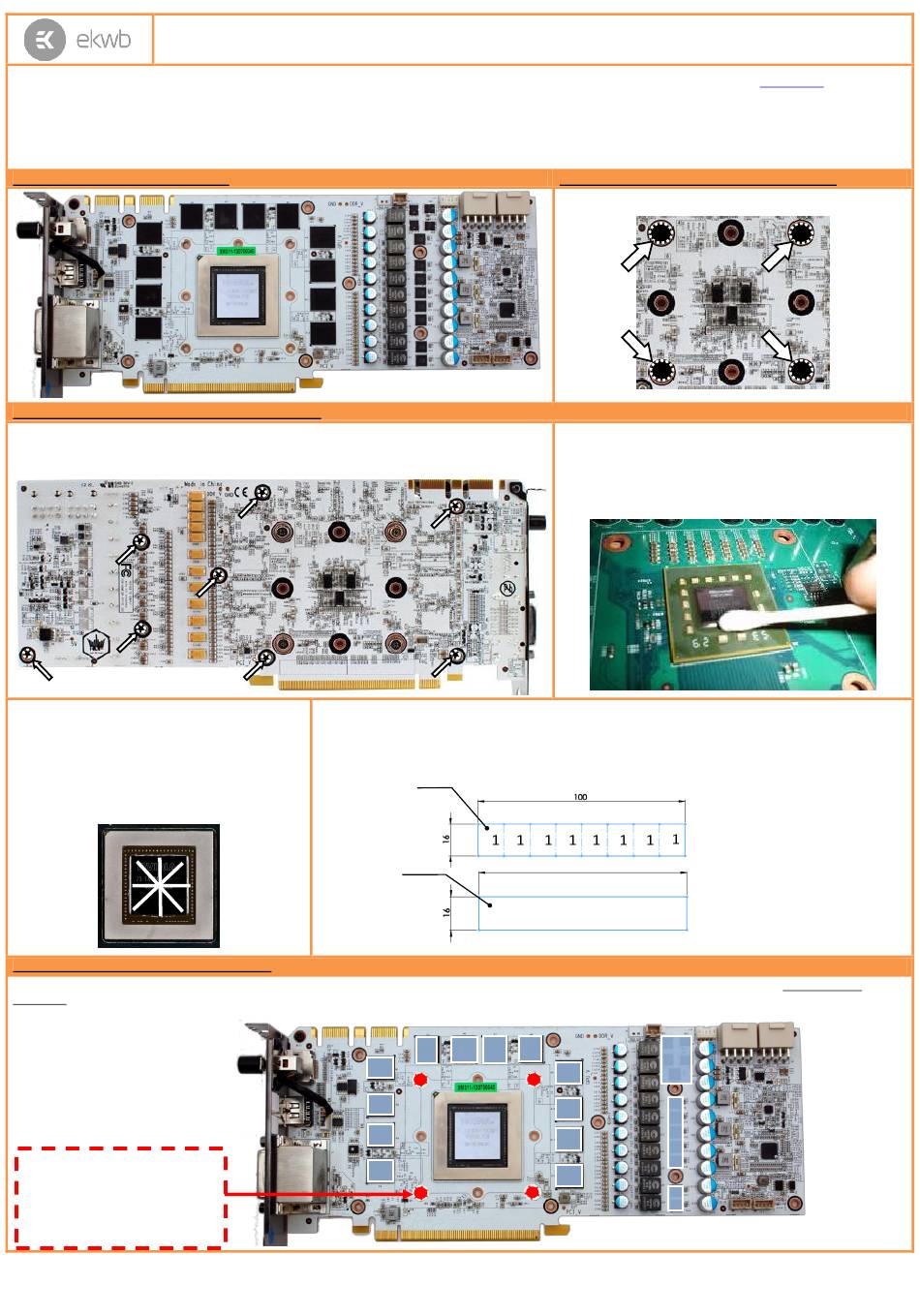

STEP 1: GENERAL INFORMATION.

STEP 2 cont.: PREPARING YOUR GRAPHIC CARD
2. cont.: REMOVING STOCK COOLER. Remove the stock GPU HSF assembly. Remove all encircled screws
attaching VRM and VRAM heatsink to the circuit board. There are up to 7 screws on the back of the
graphics card.
3. APPLYING THERMAL COMPOUND.
remains (by using non–abrasive cloth or
original thermal compound until the components and
circuit board are completely clean. Apply thermal
NVIDIA
compound: lightly coat GPU chip with enclosed
EK-TIM Ectotherm thermal grease. EKWB recommends to
apply thermal grease in cross form for best performance
(see sample picture).

STEP 3: INSTALLING THE WATER BLOCK

1. PLACING THERMAL PADS ON PCB.
conductive (for example: EK-TIM Ectotherm, Arctic Cooling MX-2™ or GELID GC-Extreme™) thermal grease on each phase regulator (that is being covered with thermal
pad) in order to even further improve the thermal performance of the EK-FC780 GTX HOF series water block.
It is necessary to remove black washers
please check the marked area. If present
remove them with caution using
fingernail (we don't recommend using a
screwdriver).
All disclosures, notices and warranty conditions are being written on the EKWB website. Please read terms of use.

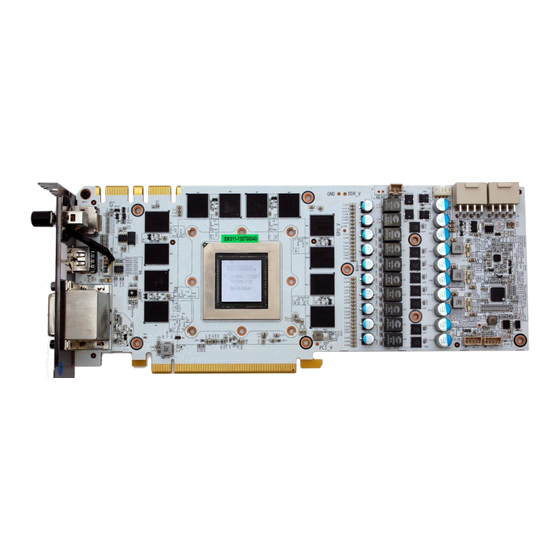

Sample picture of GeForce GTX 780 HOF series graphics card.
4. CUTTING THERMAL PADS.
Wipe off the
qtip
) of the have to be cut to smaller chunks in order to cover all the VRM components such as MOSFETs and drivers. PLEASE
REMOVE THE PROTECTIVE FOIL FROM BOTH SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION.
Replacement thermal pads: Thermal Pad D – 0.5mm (RAM 8x), Thermal Pad A – 0.5mm.
1: Thermal pad D – 0.5mm
(for memory IC):
2: Thermal pad A – 0.5mm
(for VRM/MOSFET):
Place thermal pads on chips so that numbers on chips match size of thermal pads. You may use small drops of electrically non-
1
1
1
1

STEP 2 : PREPARING YOUR GRAPHIC CARD

1. REMOVING STOCK COOLER: Remove encircled screw on the
bracket:
2. CLEANING THE PCB. Carefully detach the original stock cooler
after removing all screws securing it to the board. Wipe off the
remains (by using non–abrasive cloth or
photo) of the original thermal compound until the components and
circuit board are completely clean. EKWB recommends the use of
denatured alcohol for removing TIM leftovers.
Your block comes with thermal pads, some of which are already pre-cut. Others
2
1
1 1 1
1
1
1
1
www.ekwb.com for updates. Before
qtip , as shown on sample
2
2
2
th
Released on 25 of November, 2013. Revision 1.0
