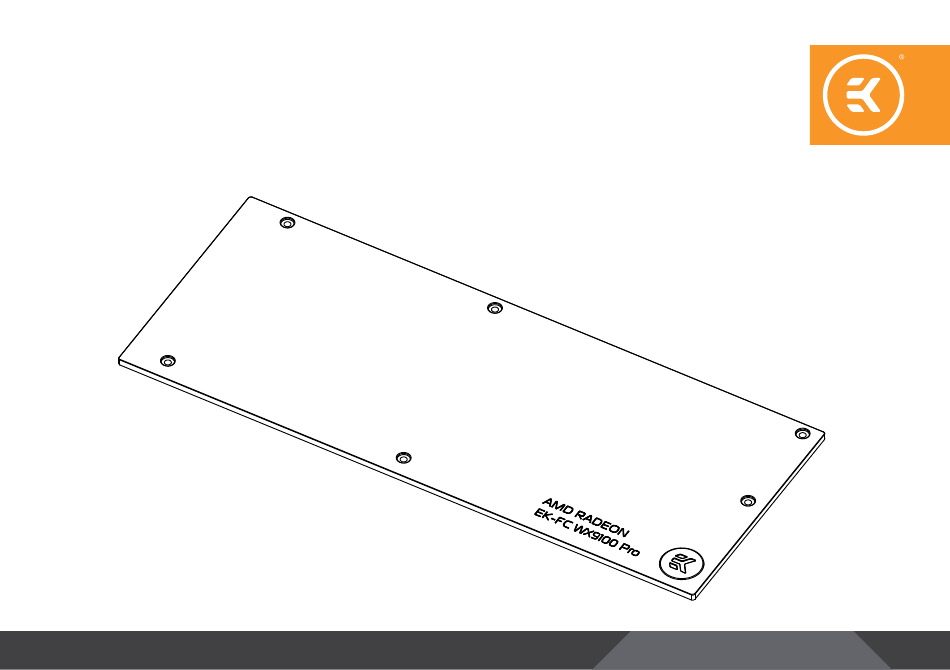

- Page 1 EK-FC WX9100 PRO BACKPLATE BACKPLATE INSTALLATION MANUAL...
- Page 2 The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
-
Page 3: Table Of Contents
TABLE OF CONTENT GENERAL INFORMATION INSTALLING THE BACKPLATE ATTACHING THE BACKPLATE TO THE GRAPHICS CARD REQUIRED TOOLS IMPORTANT DISCLOSURES SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: General Information
GENERAL INFORMATION STEP 1 Sample picture od RADEON PRO WX 9100 graphics card. STEP 1 BAG CONTENT: M 2.5 x 4 AX1 M 2.5 x 6 AX1 M 2.5 x 7 AX1 Bag content is universal for all backplates, you may not need all screws. 3 pcs 7 pcs 7 pcs... -
Page 5: Installing The Backplate
STEP 1 ATTACHING THE BACKPLATE TO THE GRAPHICS CARD STEP 1 EK-FC WX9100 PRO Backplate Take enclosed mounting screws and install them as shown on picture. HINT: Do not tighten screws until they are all positioned in their M2.5 X 7 AX1 Screw mounting holes. -
Page 6: Required Tools
24 months beginning from the date itself. Any other RMA issues can be reported to EK Support at of delivery to the final user. During this period, products will www.ekwb.com/support for further analysis. - 6 -... -
Page 7: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
