Product Name:
SKU #:
Thank you for purchasing this Luxen Home product. This product has been manufactured with the highest
standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged
parts. If any parts are missing or damaged, do not attempt to assemble or use the product.
CARTON CONTENTS:
Description
Fountain
Pump Cover
Pump
Compatible Pumps for this fountain:
Pump Model No.
JR250/LED
JB333/LED
YH300-70/LED
YH-LV70T
Tools required for assembly: No tools required for assembly.
Assembly Instructions:
1. Unpack the contents of the box and check to make sure that all items are accounted for and in good
condition.
2. Select a flat, level surface for the assembly and final location of your fountain.
3. From the opening at the bottom of the fountain opening, insert the water supply tube into the pump outlet.
Insert the LED connector into the pump connector, and twist to tighten. Place the pump inside the fountain.
4. Place the pump upright in the basin and draw the pump power cord out of the fountain back.
5. Add clean water into the basin. The water level should be approximately 30mm lower than the edge of the
basin.
6. Put the pump cover on the pump cover holder on the basin of the fountain.
7. Connect the power cable to outlet. If installed properly, water flow in the fountain will begin shortly.
8. Please do not use the electrical plug in wet weather conditions. Please note: On first use, there may be air in
the pump. It may take several minutes until all the air escapes.
9. To eliminate the possibility of water damage around your fountain, check for leaks and excessive splashing
after the initial setup of your fountain. It is highly recommended that this fountain be placed in an area
where it cannot be damaged.

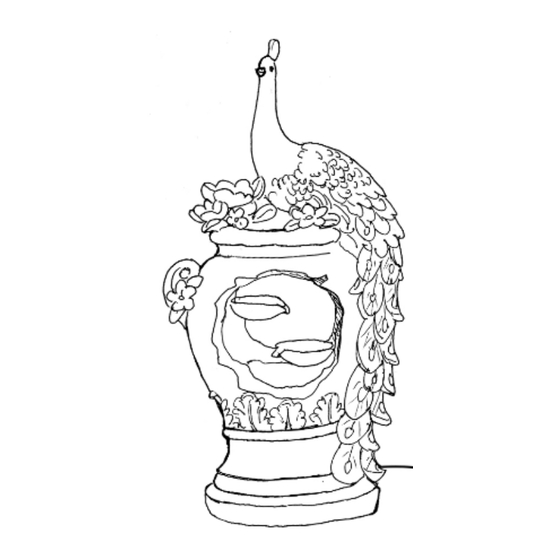

Peacock and Pot Polyresin Fountain with LED Lights
WHF548
Quantity
1
1
1
Contact: sales@winsomehouse.com
Instruction Manual
Please save this manual for future reference.
Advertisement
Table of Contents
Related Manuals for Luxen Home WHF548
Summary of Contents for Luxen Home WHF548
- Page 1 Peacock and Pot Polyresin Fountain with LED Lights SKU #: WHF548 Thank you for purchasing this Luxen Home product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY. Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged parts.
- Page 2 Product Name: Peacock and Pot Polyresin Fountain with LED Lights SKU #: WHF548 10. Do not leave your fountain running for extended periods of time when no one is present to observe the performance. 11. Check the area around your fountain on a regular basis to ensure that there is no leakage.
- Page 3 Instruction Manual Please save this manual for future reference. Product Name: Peacock and Pot Polyresin Fountain with LED Lights SKU #: WHF548 Note: The above diagram is for illustrative purposes only. Pump Instructions: Special Warnings and Cautions: CAUTION: The pump has been evaluated for use with water only.
- Page 4 Please save this manual for future reference. Product Name: Peacock and Pot Polyresin Fountain with LED Lights SKU #: WHF548 Before connecting to the power source, make sure that the pump is assembled and completely submerged • in water. •...
- Page 5 Product Name: Peacock and Pot Polyresin Fountain with LED Lights SKU #: WHF548 PUMP ASSEMBLY INSTRUCTIONS: Remove the pump from the package and untie the power cord. 1. Place the pump in the desired location in your pond or fountain ensuring that it is completely submerged in the water.
