Product Name:
SKU #:
Thank you for purchasing this Luxen Home product. This product has been manufactured with the highest
standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged
parts. If any parts are missing or damaged, do not attempt to assemble or use the product.
CARTON CONTENTS:
Description
Fountain
Pump
Base
Compatible Pumps for this fountain:
Pump Model No.
JR450
JB450
YH707
Tools required for assembly: No tools required for assembly.
Assembly Instructions:
1.
Unpack the contents of the box and check to make sure that all items are accounted for and in good
condition.

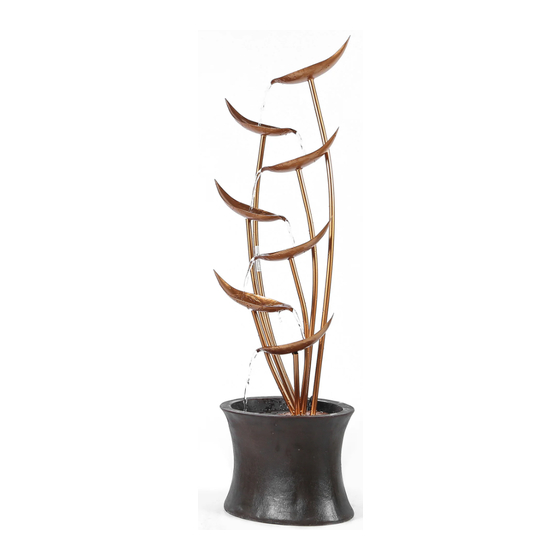

43.1in. H Rain Forest Bronze Metal Leaves Cascading Fountain
WHF553
Quantity
1
1
1
Contact: sales@winsomehouse.com
Instruction Manual
Please save this manual for future reference.
Advertisement
Table of Contents
Related Manuals for Luxen Home WHF553
Summary of Contents for Luxen Home WHF553
- Page 1 43.1in. H Rain Forest Bronze Metal Leaves Cascading Fountain SKU #: WHF553 Thank you for purchasing this Luxen Home product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY. Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged parts.
- Page 2 43.1in. H Rain Forest Bronze Metal Leaves Cascading Fountain SKU #: WHF553 Select a flat, level surface for the assembly and final location of your fountain. Place the basin on the level surface flat and insert the pump outlet into the water pipe on the underside of fountain top.
- Page 3 Instruction Manual Please save this manual for future reference. Product Name: 43.1in. H Rain Forest Bronze Metal Leaves Cascading Fountain SKU #: WHF553 Note: The above diagram is for illustrative purposes only. Pump Instructions: Special Warnings and Cautions: CAUTION: •...
- Page 4 Product Name: 43.1in. H Rain Forest Bronze Metal Leaves Cascading Fountain SKU #: WHF553 • Check the water level regularly to ensure the pump is completely submerged during operation. The pump should be fully submerged during operation. Do not add water while operating the product. Always disconnect the pump from the power source before adding water.
- Page 5 Please save this manual for future reference. Product Name: 43.1in. H Rain Forest Bronze Metal Leaves Cascading Fountain SKU #: WHF553 6. For pumps with a 3-prong, grounded type plug, do not remove the grounding pin from the plug on the power cord. PUMP ASSEMBLY INSTRUCTIONS: Remove the pump from the package and untie the power cord.
- Page 6 Product Name: 43.1in. H Rain Forest Bronze Metal Leaves Cascading Fountain SKU #: WHF553 pump where the impeller/rotor assembly was. Clean the inlet screen, impeller housing & impeller in warm soapy water. Reassemble the pump and inspect for proper operation.
