Product Name:
SKU #:
Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of
safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged parts. If
any parts are missing or damaged, do not attempt to assemble or use the product.
CARTON CONTENTS:
Description
Fountain body (base)
Water Pump Handle
Water Pump Top
Bolt
Nut
Fountain Pump
Compatible Pumps for this fountain:
Pump Model No.
JR250/LED
JB333/LED
YH300-70/LED
Tools required for assembly: No tools required assembly.
ASSEMBLY INSTRUCTIONS:
1. Unpack the contents of the box and check to make sure that all items are accounted for and in good condition.
2. Remove the pump from the package and untie the power cord.
3. Select a flat, level surface for the assembly and final location of your fountain.
5. Insert pump handle to the water pump fountain top. Insert the bolt through the holes and tighten with nuts ①.
4. Place the fountain base on a flat and level surface.
7. From the opening at the back of the fountain base, insert the water supply tube into the pump outlet ②. Connect the
6. Insert the assembled fountain water pump top onto the fountain base.
pump adapter cord to the LED cord and twist to tighten the connection ③.
back. Connect the power cord to the transformer and twist to tighten ④.
8. Place the pump upright insert the water supply tube in the basin and draw the pump power cord out of the fountain
reservoir ⑤. Ensure the pump in your fountain is completely submerged in the water.
9. Add clean water into the reservoir. The water level should be approximately 30mm lower than the edge of the
10. Connect the power cord from the pump to a properly grounded, grounding type receptacle (GFCI) ⑥.
11. If installed properly, water flow in the fountain will begin shortly.
12. Adjust the flow rate (if applicable) to the maximum (+) position. If necessary, readjust the flow rate to the desired level
(remember to always disconnect from the power source before handling the pump).

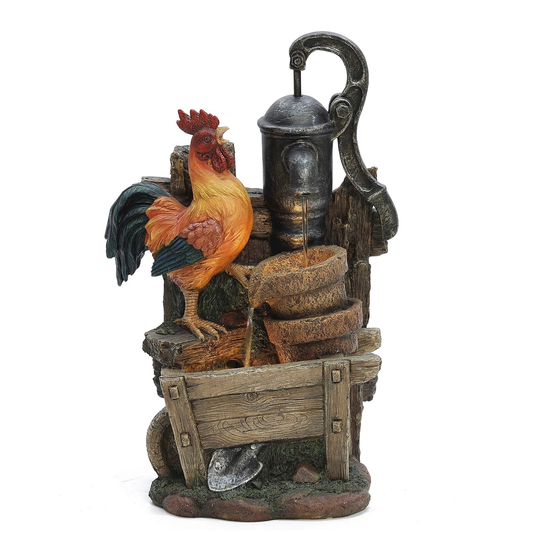

Farmhouse Pump and Rooster Resin Outdoor Fountain with LED Lights
WHF1774
Quantity
1
1
1
1
1
1
Instruction Manual
SAVE THESE INSTRUCTIONS–This manual contains important
safety and operating instructions for power units.
