T&S B-1255 Installation And Maintenance Instructions Manual

T&S B-1255 Installation And Maintenance Instructions Manual

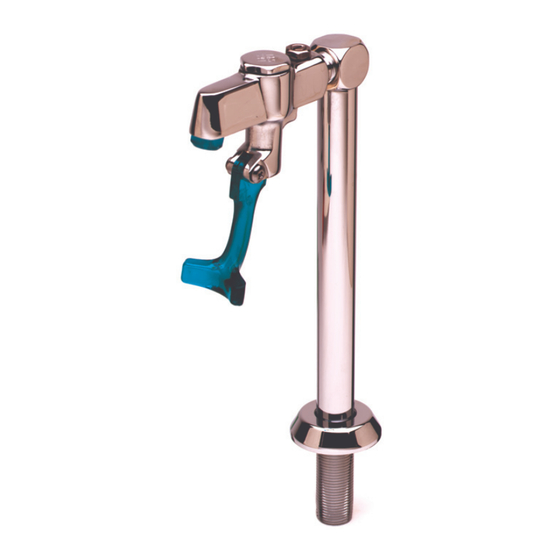

Retro push-back glass fillers
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name __________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
000894-45
(2 Supplied)
001062-45
O-Ring
(2 Supplied)

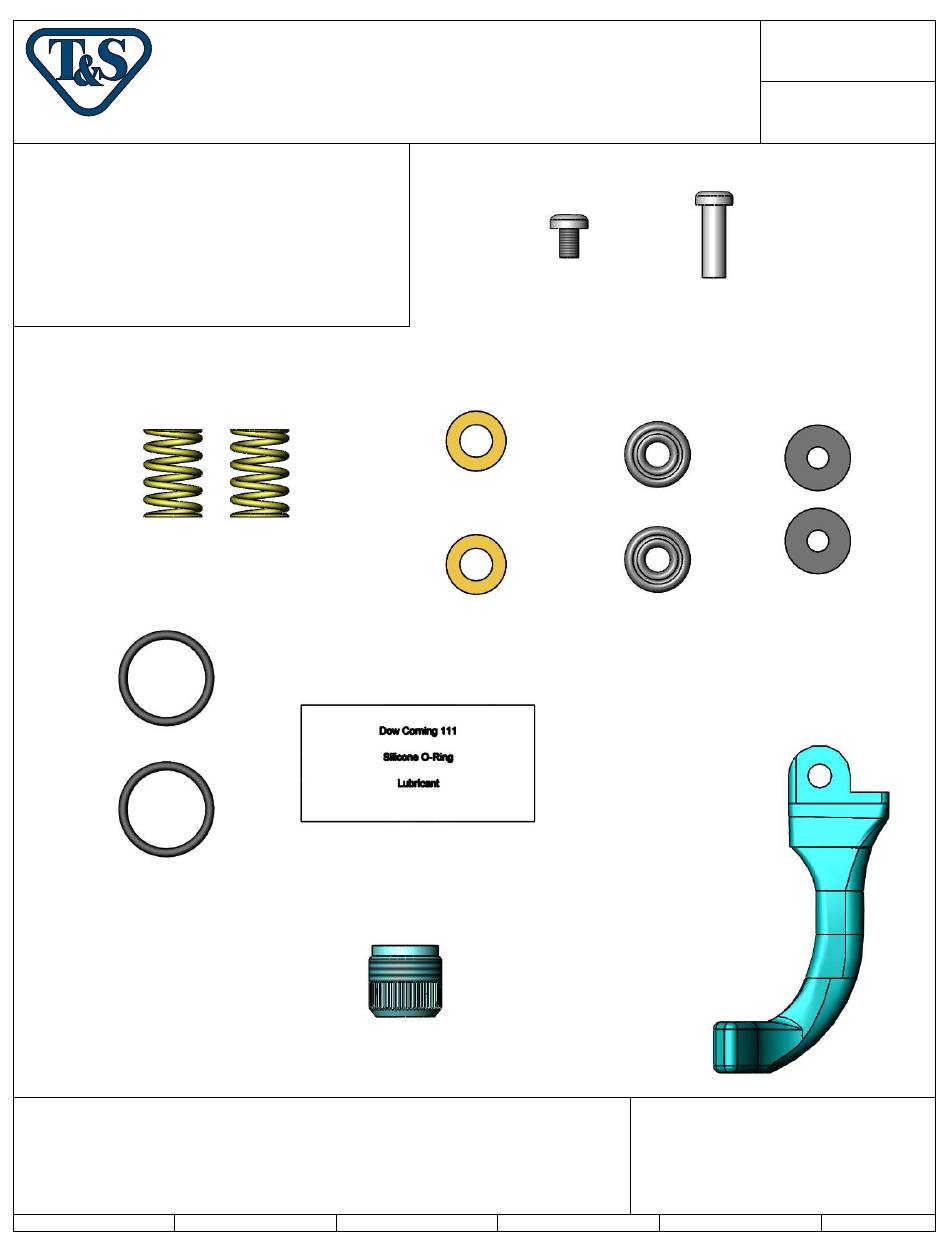

Product Specifications:
Replacement Parts Kit for
Retro "Old Style" Glass Fillers
Drawn:
JRM
Checked:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Spring
012665-45
Silicon Grease Tube
(1 Supplied)
003090-45
Outlet Tip
(1 Supplied)
JRM
Approved:
003199-45
Handle Screw
(1 Supplied)
000974-45
Bonnet Washer
(2 Supplied)
JHB
Date:
04/10/15
Model No.
Item No.
003198-45
Handle Nut
(1 Supplied)
001100-45
001094-45
Stem Packing
Seat Washer
(2 Supplied)
(2 Supplied)
001145-45
Lever Arm
(1 Supplied)
Product Compliance:
NSF 61 - Section 9
NSF 372 (Low Lead Content)
Scale:
1:1
B-1255
Sheet:
1 of 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-1255 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for T&S B-1255

  • Page 1 Model No. T&S BRASS AND BRONZE WORKS, INC. 2 Saddleback Cove / P.O. Box 1088 B-1255 Travelers Rest, SC 29690 Item No. Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com This Space for Architect/Engineer Approval...
  • Page 2: Maintenance Instructions

    Installation and Maintenance Instructions Limited One Year Warranty T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workman- ship for a period of one (1) year from the date of purchase.
  • Page 3: Exploded View

    Exploded View B-1200-R B-1210-R...
  • Page 4: Part Number Guide

    000826-20 Stem 001094-45 † Washer, Seat Flange (B-1200-R) 000023-40 000713-20 Locknut (B-1200-R) (Items 22 thru 26 used on B-1210-R model) Pedestal Cube Pedestal - 8” 000425-40 000024-40 Flange 001033-45 Washer, Pedestal Locknut 002954-45 † Items included in B-1255 repair kit...
  • Page 5: General Instructions

    General Instructions Installation: (B-1200-R) Installation: (B-1210-R) 1. Turn off water supply and drain 1. Turn off water supply and drain lines. Hand tighten no.20 fi rmly lines. against no.1 and remove no.21 from 2. Unscrew and remove no.26 and no.1. no.25 from no.23.
  • Page 6: Instrucciones Generales

    Instrucciones Generales Instalación: (B-1200-R) Instalación: (B-1210-R) 1. Cierre la fuente principal de agua 1. Cierre la fuente principal de agua y y desagüe las tuberias. Firmemente desagüe las tuberias. aprete a mano la parte No.20 contra la 2. Destornille y remueva las partes parte No.1 y remueva la parte No.21 No.26 y No.25 de la parte No.23.
  • Page 7: Instructions Générales

    Instructions Générales L’Installation: (B-1200-R) L’Installation: (B-1210-R) 1. Fermer la réserve de l’eau et 1. Fermer la réserve de l’eau et égoutter la tuyauterie. Resserrer par égoutter la tuyauterie. main Nº.20 fermement contre Nº.1 2. Dévisser et enlever Nº.26 et Nº.25 et enlever Nº.21 de Nº.1.
  • Page 8: Allgemeine Anleitungen

    Allgemeine Anleitungen Installation: (B-1210-R) Installation: (B-1200-R) 1. Wasserzufuhr abstellen und 1. Wasserzufuhr abstellen und Leitungen entleeren. Leitungen entleeren. Mit der Hand Nr.20 fest gegen Nr.1 anziehen und 2. Nr.26 und Nr.25 von Nr.23 Nr.21 von Nr.1 entfernen. losschrauben und entfernen. Nr.24 so ausrichten, daß...
  • Page 9 RELATED T&S BRASS PRODUCT LINE B-1230-R Water Station T&S BRASS AND BRONZE WORKS, INC. A fi rm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088 T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’ Phone: (864) 834-4102 Oude Nieuwveenseweg 84 Fax: (864) 834-3518...
