- Page 1 Midea DC Fan Coil Unit Four-pipe Four-way Cassette Technical Service Manual Midea reserves the right to discontinue, or change specification or designs at any time without notices and without incurring obligations.
-
Page 2: Table Of Contents
Midea DC Fan Coil Unit Four-Pipe Four-way Cassette DC Fan Coil Unit 1. External Appearance ............2 2. Features ................2 3. Product lineup ..............3 4. Accessories ................ 4 5. Specifications ..............5 6. Capacity Table ..............7 7. Dimension ................. 22 8. -
Page 3: External Appearance

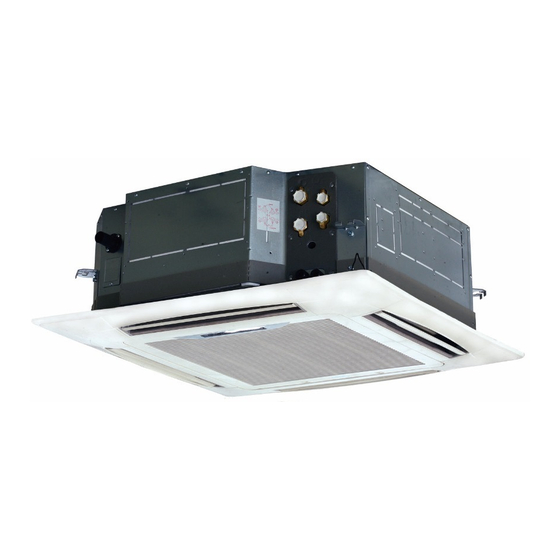

Midea DC Fan Coil Unit 1. External Appearance 2. Features 4-way air supply panel is standard, 360°air supply panel is optional Current Panel 360° Panel High comfortable, cold and hot water can supply simultaneously. Cooling and heating model can exchange conveniently ... -
Page 4: Product Lineup
Excellent efficiency Midea DC FCU adopt the brushless DC motor, the DC motor efficiency is up to 90%. The power consumption of DC FCU can be reduced by more than 30% in contrast to the corresponding AC FCU. ... -
Page 5: Accessories
Midea DC Fan Coil Unit 4. Accessories 4.1 Standard accessories Accessory name Qty. Shape Usage Owner’s & installation manual Installation guide Installation paper board Bolt M6 Tubing& Fittings Soundproof/ insulation sheath Out-let pipe Out-let pipe sheath Drainpipe Fittings Out-let pipe clasp... -
Page 6: Specifications
Midea DC Fan Coil Unit 5. Specifications Model MKA-V600F MKA-V750F MKA-V850F Power supply V/Ph/Hz 220-240/1/50 1287/1084/851 1389/1149/929 1444/1143/1008 Air flow (H/M/L) 757/637/500 817/675/546 849/672/592 Capacity (H/M/L) 5.36/4.81/4 5.62/5/4.26 5.63/4.88/4.5 Water flow rate(H/M/L) 0.99/0.87/0.72 1.04/0.9/0.77 0.99/0.95/0.80 Cooling Water pressure drop(H/M/L) 14.8/11.5/8.1 15.9/12.4/9... - Page 7 Midea DC Fan Coil Unit Power supply V/Ph/Hz 220-240/1/50 1525/1212/1088 1785/1545/1397 1857/1410/1191 Air flow (H/M/L) 897/712/640 1050/908/821 1092/829/700 Capacity (H/M/L) 5.82/5.07/4.75 8.75/7.97/7.4 8.76/7.29/6.45 Water flow rate(H/M/L) 1.04/0.9/0.83 1.57/1.43/1.31 1.58/1.30/1.15 Cooling Water pressure drop(H/M/L) 16.4/12.6/10.9 33.9/30/24 33/22.6/17.7 Power input(H/M/L) 77/42/32 107/71/54...
-
Page 8: Capacity Table
Midea DC Fan Coil Unit 6. Capacity Table Cooling Capacity Table MKA-V600F Indoor temperature (D.B.) Indoor EWT ΔT temp (W.B.) WPD TC WPD TC WPD TC WPD TC ° C ° C ° C kW m^3/h kPa kW m^3/h kPa... - Page 9 Midea DC Fan Coil Unit (Continued) MKA-V600F Indoor temperature (D.B.) Indoor EWT ΔT temp (W.B.) WPD TC WPD TC WPD TC WPD TC ° C ° C ° C kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa 1.93 1.93 0.55...
- Page 10 Midea DC Fan Coil Unit MKA-V750F Indoor temperature (D.B.) Indoor EWT ΔT temp(W.B.) TC SC WF WPD TC SC WF WPD TC SC WF WPD TC SC WF WPD TC SC WF WPD ° C ° C ° C kW kW m^3/h kPa...
- Page 11 Midea DC Fan Coil Unit (Continued) MKA-V750F Indoor temperature (D.B.) Indoor EWT ΔT temp(W.B.) TC SC WF WPD TC SC WF WPD TC SC WF WPD TC SC WF WPD TC SC WF WPD ° C ° C ° C...
- Page 12 Midea DC Fan Coil Unit MKA-V850F Indoor temperature (D.B.) Indoor EWT ΔT temp(W.B.) TC SC WF WPD TC SC WPD TC SC WPD TC SC WF WPD TC SC WF WPD ° C ° C ° C kW kW m^3/h kPa kW kW m^3/h kPa...
- Page 13 Midea DC Fan Coil Unit (Continued) MKA-V850F Indoor temperature (D.B.) EWT ΔT Indoor temp (W.B.) TC SC WF WPD TC SC WF WPD TC SC WF WPD TC SC WF WPD TC SC WF WPD ° C ° C ° C kW kW m^3/h kPa kW kW m^3/h kPa kW kW m^3/h kPa kW kW m^3/h kPa kW kW m^3/h kPa 1.91 1.91 0.55 3.69 2.75 2.75 0.79 10.59 3.46 3.46 0.99 16.14 4.13 4.13 1.18 21.8 4.79 4.79 1.37 28.02...
- Page 14 Midea DC Fan Coil Unit MKA-V950F Indoor temperature (D.B.) Indoor EWT ΔT temp (W.B.) TC SC WF WPD TC ° C ° C ° C kW kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa 6.16 4.79 1.04 40.57...
- Page 15 Midea DC Fan Coil Unit (Continued) MKA-V950F Indoor temperature (D.B.) Indoor EWT ΔT temp (W.B.) WPD TC WPD TC WPD TC WPD TC ° C ° C ° C kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa 2.25 2.25 0.64...
- Page 16 Midea DC Fan Coil Unit MKA-V1200F Indoor temperature (D.B.) Indoor EWT ΔT temp (W.B.) ° C ° C ° C kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa 7.92 5.9 2.26 69.19 7.89 6.84 2.25 68.86 8.47 8.31 2.41 77.6...
- Page 17 Midea DC Fan Coil Unit (Continued) MKA-V1200F Indoor temperature (D.B.) Indoor EWT ΔT temp (W.B.) TC SC WF WPD TC SC WF WPD TC SC WF WPD TC SC WF WPD TC SC WF WPD ° C ° C ° C kW kW m^3/h kPa kW kW m^3/h kPa kW kW m^3/h kPa kW kW m^3/h kPa kW kW m^3/h kPa 3.41 3.41 0.98 11.55 4.5 4.5 1.29 25.27 5.53 5.53 1.58...
- Page 18 Midea DC Fan Coil Unit MKA-V1500F Indoor temperature (D.B.) Indoor EWT ΔT temp (W.B.) ° C ° C ° C kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa kW m^3/h 7.88 6.01 1.58 63.1 7.7 6.81 1.58 63.13 8.36 8.28 2.38 72.31 9.33 9.33 2.66 87.18 10.29 10.29 2.93 103.01 10.61 5.92 3.03 108.63 10.55 6.81 3.01 107.52 10.73 7.95 1.58 109.78 10.42 8.55 2.97 105.35 10.51 9.69...
- Page 19 Midea DC Fan Coil Unit (Continued) MKA-V1500F Indoor temperature (D.B.) Indoor EWT ΔT temp (W.B.) WPD TC WPD TC WPD TC WPD TC ° C ° C ° C kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa kW m^3/h kPa 3.27 3.27 0.94...
- Page 20 Midea DC Fan Coil Unit Heating Capacity Table MKA-V600F Indoor temperature (D.B.) ΔT [° C] [° C] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] 3.92 0.68 30.83 3.52 0.61 25.57 3.12 0.54 20.75 2.72 0.47 16.37...
- Page 21 Midea DC Fan Coil Unit MKA-V750F Indoor temperature (D.B.) ΔT [° C] [° C] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] 4.07 38.83 3.65 0.63 32.2 3.23 0.56 26.12 2.82 0.49 20.61 3.52 0.38 13.57 0.34...
- Page 22 Midea DC Fan Coil Unit MKA-V850F Indoor temperature (D.B.) ΔT [° C] [° C] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] 4.36 0.76 40.09 3.91 0.68 33.27 3.47 27.01 3.03 0.52 21.34 3.79 0.41 14.11 3.34...
- Page 23 Midea DC Fan Coil Unit MKA-V950F Indoor temperature (D.B.) ΔT [° C] [° C] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] 4.57 0.79 42.03 4.11 0.71 34.88 3.64 0.63 28.34 3.18 0.55 22.39 3.99 0.43 14.82...
- Page 24 Midea DC Fan Coil Unit MKA-V1200F Indoor temperature (D.B.) ΔT [° C] [° C] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] 6.22 1.08 51.71 5.59 0.97 42.9 4.96 0.86 34.84 4.32 0.75 27.53 5.42 0.59 18.24...
- Page 25 Midea DC Fan Coil Unit MKA-V1500F Indoor temperature (D.B.) ΔT [° C] [° C] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] [kW] [m^3/h] [kPa] 6.54 1.13 59.43 5.87 1.02 49.33 5.21 40.08 4.55 0.79 31.69 5.71 0.62 21.04 5.04...
-
Page 26: Dimension
Midea DC Fan Coil Unit 7. Dimension 8. Service Spaces... -
Page 27: Sound Levels
Midea DC Fan Coil Unit 9. Sound Levels MKA-V 600F 750F 850F H/M/L [dB(A)] 42/37/31 44/39/33 45/39/36 MKA-V 950F 1200F 1500F H/M/L [dB(A)] 46/41/38 48/44/42 49/43/38... -
Page 28: Wiring Diagrams
Midea DC Fan Coil Unit 10. Wiring Diagrams... -
Page 29: Troubleshooting
Midea DC Fan Coil Unit 11. Troubleshooting running defrosting Malfunction timer lamp alarm lamp alarm lamp lamp lamp Room temperature sensor × × × checking channel is ☆ abnormal Evaporator sensor checking × × × ☆ channel is abnormal ×... -
Page 30: Installation
Midea DC Fan Coil Unit 12. Installation 12.1 Before Installation Please check whether the accessories are of full scope. If there are some fittings free from use, please restore them carefully. 12.2 Installation space (Refer to fig.1, fig.2, fig.3 and table 1 for specification.) The indoor unit should be installed in a location that meets the following requirements: ... - Page 31 Midea DC Fan Coil Unit a. In the case of new built house, the hook can be embedded in advance (refer to the A.b mentioned above). But it should be strong enough to bear the indoor unit and will not become loose because of concrete shrinking.
- Page 32 Midea DC Fan Coil Unit...
- Page 33 Midea DC Fan Coil Unit 12.5 Install the Panel Caution: Never put the panel face down on floor or against the wall, or on bulgy objects. Never crash or strike it. (1) Remove the air inlet grill. a. Slide two grid switches toward the middle at the same time, and then pull them up. (Refer to fig. 9) b.
- Page 34 Midea DC Fan Coil Unit >1.0 m Gradient: 0.8～1.0 m higher than 1/100 Fig.6-1 0.8-1.0m <200mm Lean over 1/100 Pump-pipe clasp Fig.6-2 (the fittings) Drainage test Check whether the drainpipe is unhindered New built house should have this test done before paving the ceiling.
- Page 35 Midea DC Fan Coil Unit 5. For any question contact your local dealer. 12.7.1 Connect the cable Dissemble the bolts from the cover.(If there isn't a cover on the outdoor unit, disassemble the bolts from the maintenance board, and pull it in the direction of the arrow to remove the protection board.) ...
- Page 36 Midea DC Fan Coil Unit 12.8 Test operation The test operation must be carried out after the entire installation has been completed. Please confirm the following points before the test operation: The indoor unit and outdoor unit are installed properly.
