VMA108
ATTINY85 ARDUINO
®
COMPATIBLE MICRO DEVELOPMENT BOARD
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the VMA108 and is the answer not in the manual?

Questions and answers

Related Manuals for Velleman VMA108

Summary of Contents for Velleman VMA108

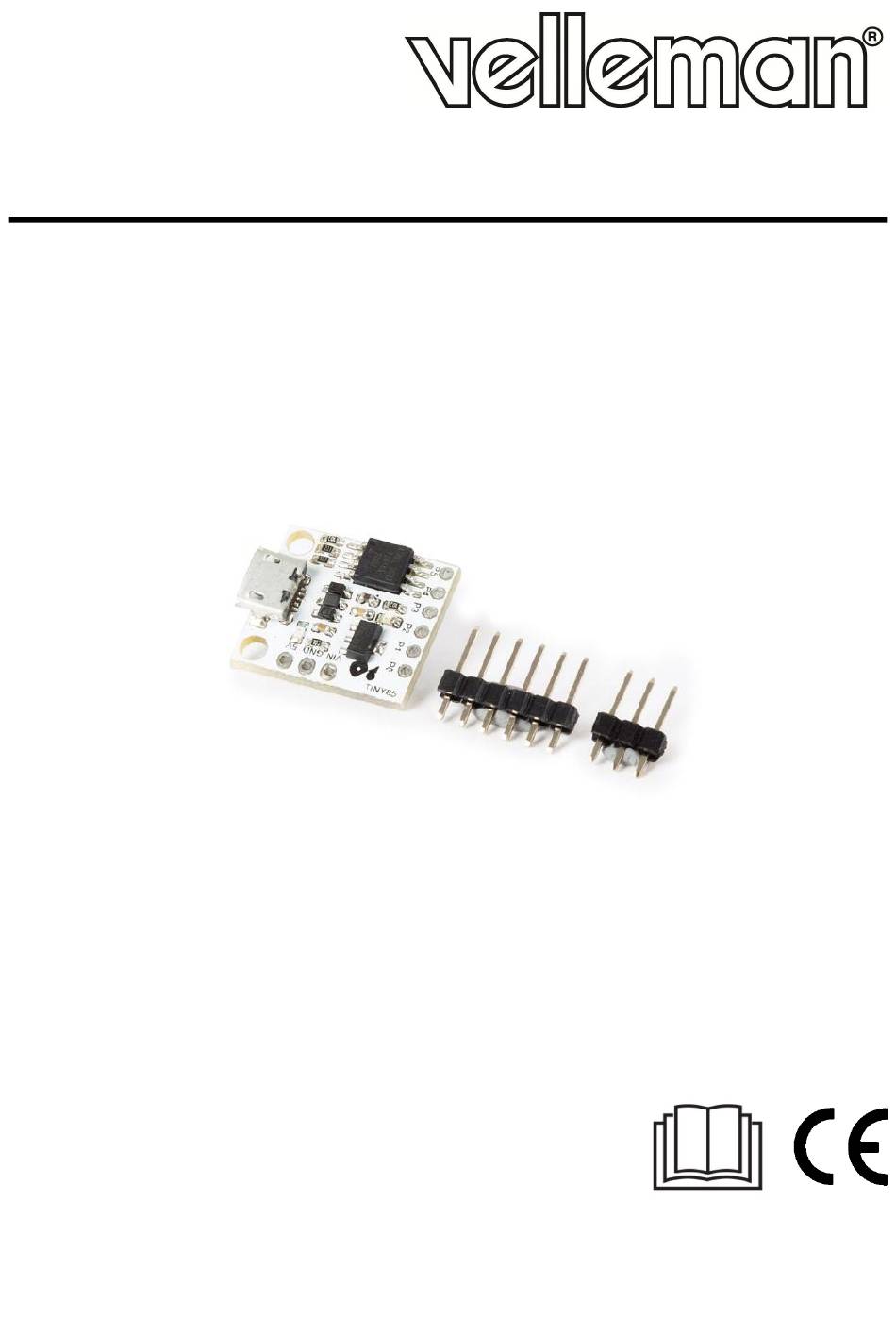

  • Page 1 VMA108 ATTINY85 ARDUINO ® COMPATIBLE MICRO DEVELOPMENT BOARD USER MANUAL...

  • Page 2: Safety Instructions

     Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical…) arising from the possession, use or failure of this product.
  • Page 3 When powering up the VMA108 (external or by the USB port) the USB function is activated during a few seconds. This means that, when you plug in the VMA108 on your Windows machine, Windows will try to install the correct USB driver.
  • Page 4 VMA108 5. Close the device manager and open the Arduino ® IDE (https://www.arduino.cc/en/Main/Software). 6. Open Files  Preferences. 7. Enter http://digistump.com/package_digistump_index.json under “Additional Boards Manager URL’s”. Click V. 01 – 08/08/2018 ©Velleman nv...
  • Page 5 VMA108 8. Go to Tools  Board  Boards Manager 9. Select Contributed. Scroll through the list until you find Digistump AVR Boards by Digistump. Click Install. After installation, press Close. V. 01 – 08/08/2018 ©Velleman nv...
  • Page 6 VMA108 10. Go back to the Tools  Boards. Select the Digispark (default 16.5 MHz) board. After selecting this board, the field “Port” will remain grey. You cannot select a port due to the previously installed USB driver. V. 01 – 08/08/2018...
  • Page 7 VMA108 Example Now we will try to send some code to the VMA108. Type the code below as an example. This code makes the on-board LED flash at a higher speed than before. void setup() { pinMode(1, OUTPUT); void loop() { digitalWrite(1,HIGH);...
  • Page 8 © COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
  • Page 9 • Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
