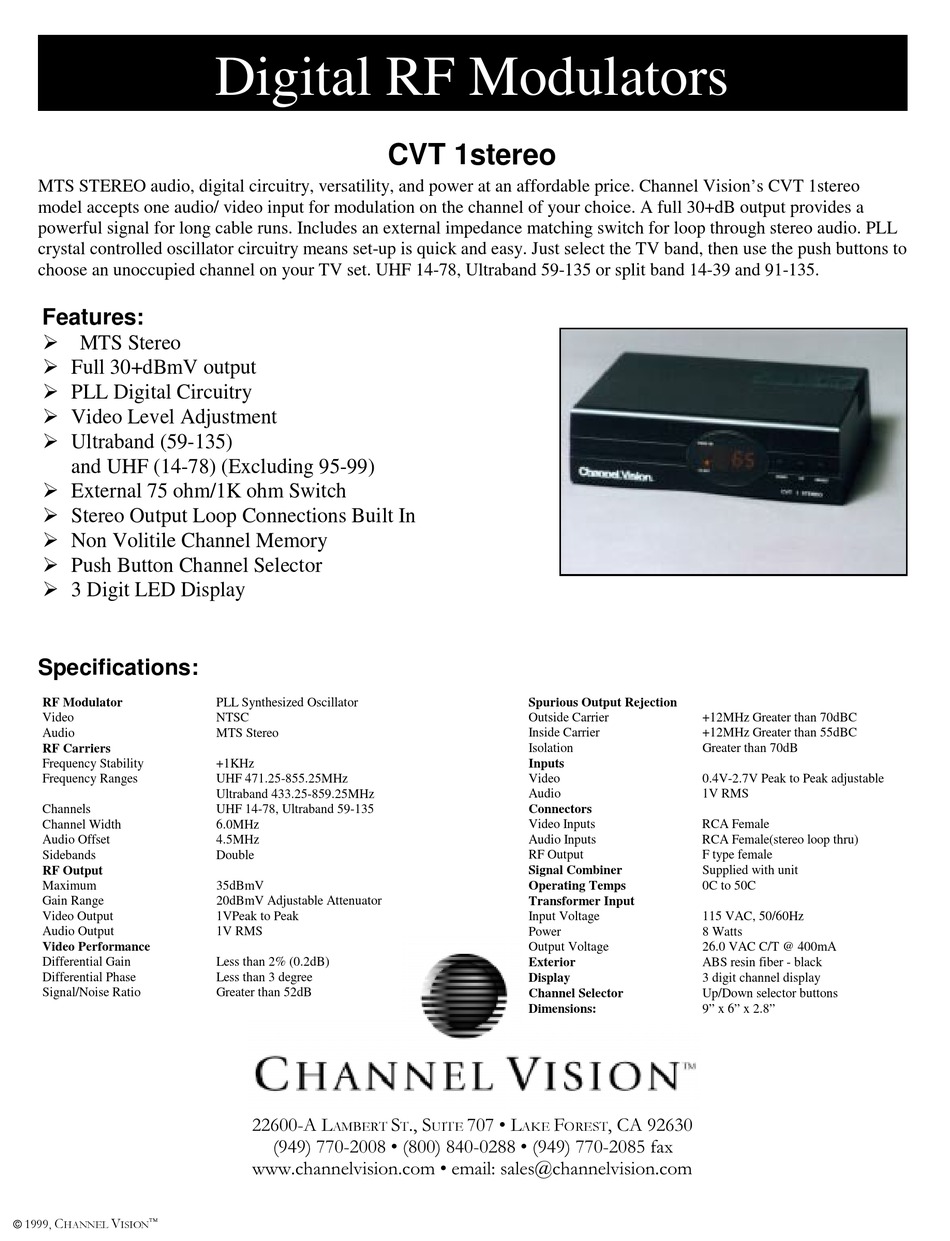

Channel Vision Digital RF Modulators CVT 1stereo Specifications

MTS STEREO audio, digital circuitry, versatility, and power at an affordable price. Channel Vision's CVT 1stereo
model accepts one audio/ video input for modulation on the channel of your choice. A full 30+dB output provides a
powerful signal for long cable runs. Includes an external impedance matching switch for loop through stereo audio. PLL
crystal controlled oscillator circuitry means set-up is quick and easy. Just select the TV band, then use the push buttons to
choose an unoccupied channel on your TV set. UHF 14-78, Ultraband 59-135 or split band 14-39 and 91-135.
Features:
¾MTS Stereo
¾ Full 30+dBmV output
¾ PLL Digital Circuitry
¾ Video Level Adjustment
¾ Ultraband (59-135)
and UHF (14-78) (Excluding 95-99)
¾ External 75 ohm/1K ohm Switch
¾ Stereo Output Loop Connections Built In
¾ Non Volitile Channel Memory
¾ Push Button Channel Selector
¾ 3 Digit LED Display

Specifications:

RF Modulator
Video
Audio
RF Carriers
Frequency Stability
Frequency Ranges
Channels
Channel Width
Audio Offset
Sidebands
RF Output
Maximum
Gain Range
Video Output
Audio Output
Video Performance
Differential Gain
Differential Phase
Signal/Noise Ratio
Œ
©

Digital RF Modulators
CVT 1stereo
PLL Synthesized Oscillator
NTSC
MTS Stereo
+1KHz
UHF 471.25-855.25MHz
Ultraband 433.25-859.25MHz
UHF 14-78, Ultraband 59-135
6.0MHz
4.5MHz
Double
35dBmV
20dBmV Adjustable Attenuator
1VPeak to Peak
1V RMS
Less than 2% (0.2dB)
Less than 3 degree
Greater than 52dB
Spurious Output Rejection
Outside Carrier +12MHz Greater than 70dBC
Inside Carrier +12MHz Greater than 55dBC
Isolation Greater than 70dB
Inputs
Video 0.4V-2.7V Peak to Peak adjustable
Audio 1V RMS
Connectors
Video Inputs RCA Female
Audio Inputs RCA Female(stereo loop thru)
RF Output F type female
Signal Combiner Supplied with unit
Operating Temps 0C to 50C
Transformer Input
Input Voltage 115 VAC, 50/60Hz
Power 8 Watts
Output Voltage 26.0 VAC C/T @ 400mA
ABS resin fiber - black
Exterior
Display 3 digit channel display
Channel Selector Up/Down selector buttons
Dimensions: 9" x 6" x 2.8"
